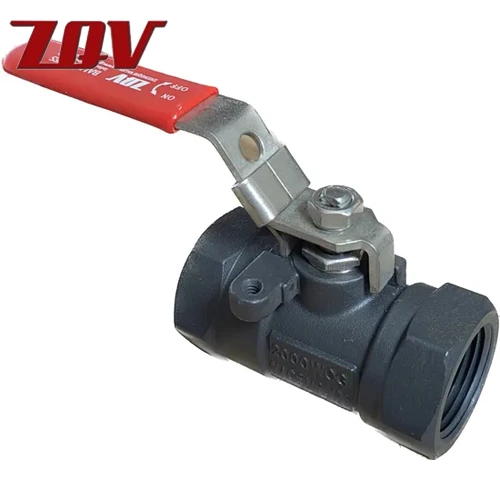

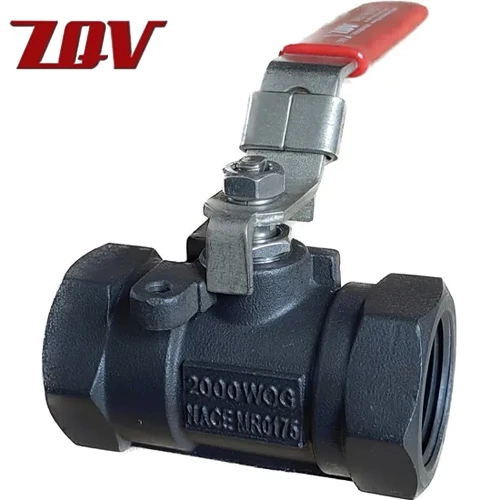

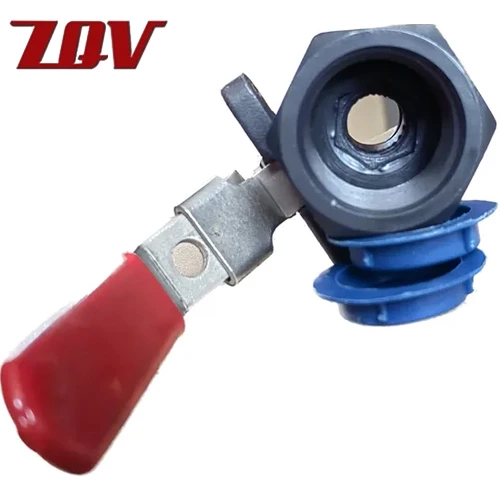

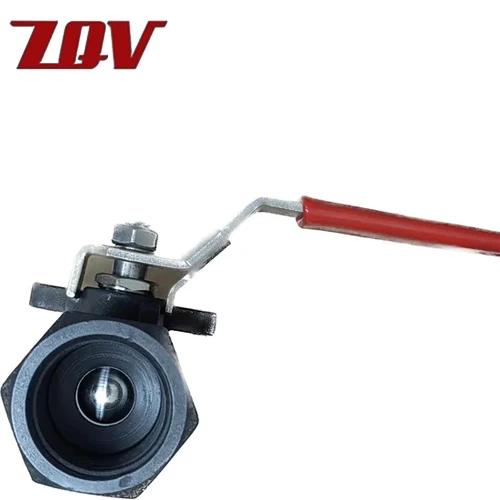

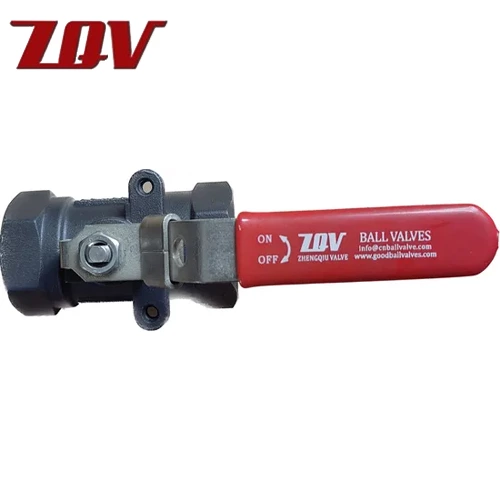

1PC Reduced Port Threaded Ball Valve 1000 wog
Size Range
1/4“ to 2”
Body Materials
A351 CF8M / A216 WCB
Temperature Range
'-50℉ to 450℉ (-46℃ to 232℃)
Stem Materials
A182 F316
Maximum Allowable Operating Pressure
3000 PSI (WOG)
Seat Materials
Delrin / Peek
Body Style
One Piece
Ball Materials
A182 F316
End Connections
Threaded ASME B1.20.1 NPT
Design Standard
ASME B16.34 , MSS SP-110
Ports
Reduced Port
Testing Standard
MSS-SP72,API 598
Applications
General Service, Air, Water, Oil & Gas
Face to Face
Manufacturers Standard
Description
Port: Reduced Prot
Size: 1/2" to 2"
Pressure: 2000PSI 138BAR
Body: Carton Steel A216 Gr.WCB Stainless Steel316 / A351 Gr.CF8M
SEAT: RPTFE/MPTFE
Max Temp: 450 232
Ends: ASME B1.20.1(NPT) DIN 259/DIN2999/ISO228/BSP/PT
Features:
2-Piece Investment Casting Body
Seal-Weld Body
Adjustable Packing Gland
Blow-out-Proof Stem
Lockable Lever Handle
150PSI Saturated Steam 250PSI Steam Service (Multi-Seal Seat)
Spring Return Oval Handle
Test Standard: API598/ASME B16.34 NACE MR-0175
| Item | PART NAME | MATERIAL |
| 1 | BODY | A216-WCB(CC) |
| 2 | BODY INSERT | A105(CC) |
| 3 | ANTI-STATIC DEVICE | A351-CF8M(SS) |
| 4 | STEM | A182 F316(SS) |
| 5 | BALL | A182 F316(SS) |
| 6 | SEAT | RPTEF |
| 7 | TRUST WASHER | RPTEF |
| 8 | STEAM PACKING | GRAPHITE |
| 9 | GLAND | A351-CF8(SS) |
| 10 | HANDLE | SS+PVC |
| 11 | RING | SS |
| 12 | NUT | A2-70(SS) |
| SIZE | d | A | B | C | D | 2/UNC | NPT | KGS |
| 1/2" | 9.00 | 66.00 | 10.25 | 29.00 | 44.00 | 10-24UNC | 1/2" | 0.28 |
| 3/4" | 12.50 | 72.00 | 10.25 | 33.00 | 53.00 | 10-24UNC | 3/4" | 0.40 |
| 1" | 15.00 | 82.00 | 12.75 | 42.00 | 62.50 | 10-24UNC | 1" | 0.65 |
| 1-1/4" | 20.00 | 90.00 | 14.00 | 48.00 | 64.00 | 10-24UNC | 1-1/4" | 0.46 |
| 1-1/2" | 24.50 | 98.00 | 15.25 | 60.00 | 74.00 | 1/4-24UNC | 1-1/2" | 1.34 |
| 2" | 32.00 | 110.00 | 15.25 | 60.00 | 79.00 | 1/4-24UNC | 2" | 2.10 |
