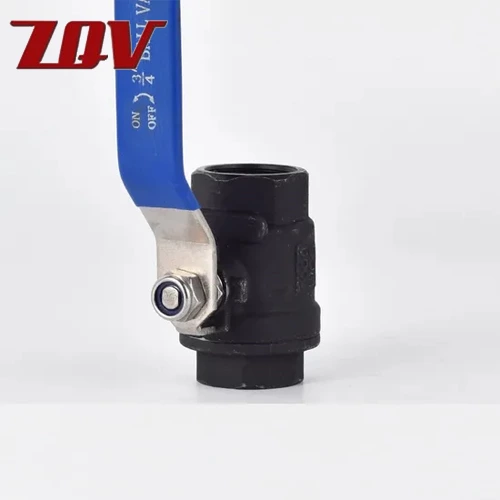

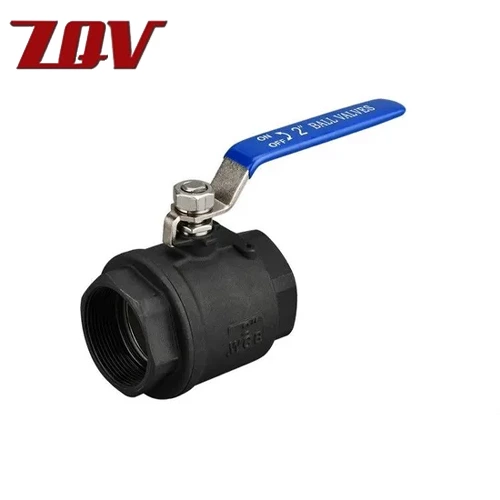

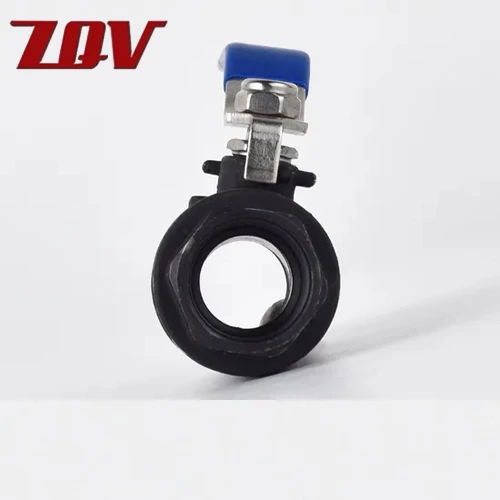

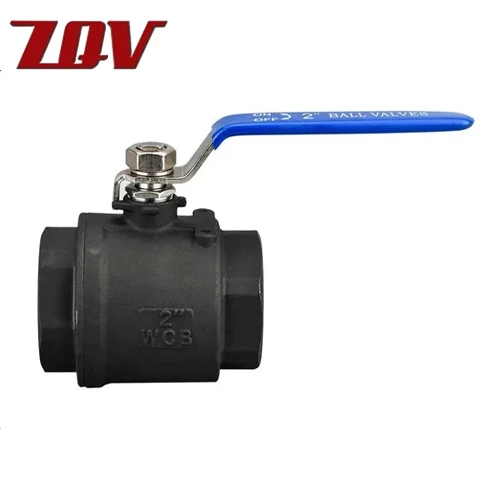

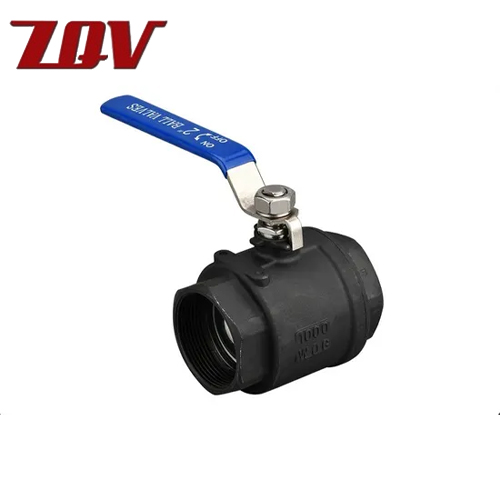

2PC Threaded Full port Ball Valve PN63
Size Range
1/4“ to 4”
Body Materials
A351 CF8M / A216 WCB
Temperature Range
'-50℉ to 450℉ (-46℃ to 232℃)
Stem Materials
A182 F316
Maximum Allowable Operating Pressure
1000 PSI (WOG)
Seat Materials
RPTFE
Body Style
Two Piece
Ball Materials
A182 F316
End Connections
Threaded ASME B1.20.1 NPT
Design Standard
ASME B16.34 , MSS SP-110
Ports
Full Port
Testing Standard
MSS-SP72,API 598
Applications
General Service, Air, Water, Oil & Gas
Face to Face
Manufacturers Standard
Description
Product Attributes
Model No.: 1021
Brand: zqv
Types Of: Ball Valves
Support Customization: Oem
Place Of Origin: China
Application: General
Medium Temperature: Normal Temperature
Power: Manual
Flow Medium: Oil, Water, Gas
Structure: Ball
Construction: 2pc investment casting body
Port: full port
Product Description
Type:Series 1021
Description: 2 piece stainless steel full port Ball Valves with PTFE seal are mostly use for general oil, gas and water application.
Feature
●2 PC Body Design
●Standard Bore, Quarter turn operation
●Body: ASTM A216 GR. WCB, SS304 A351 Gr.CF8, SS316 A351 Gr.CF8M
●Size: 1/4” – 4” (DN8-100)
●Working Pressure: 1000 PSI 69bar
●Threaded End: BSPP, NPT,PT, DIN259/DIN2999
●Applicable Medium: General oil, Gas & Water applications
●Blow-out Proof Stem Design
●Lockable lever handle
●Adjustable packing gland
●Temperature Range: -29°C to 150°C
●Test standard: API598/ASME B16.34
Option
- Seal-welded
- Spring reture handle
- Oval handle

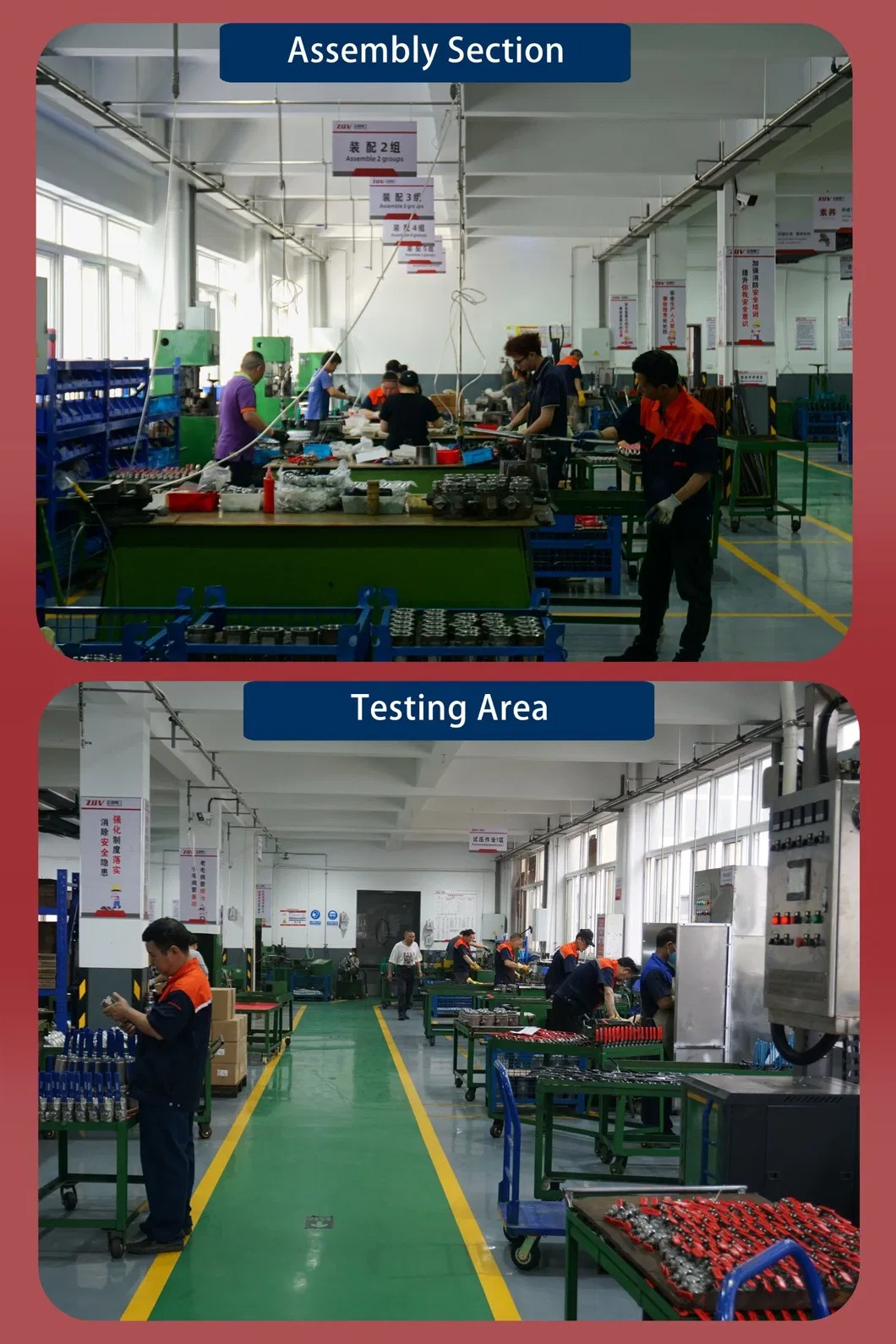

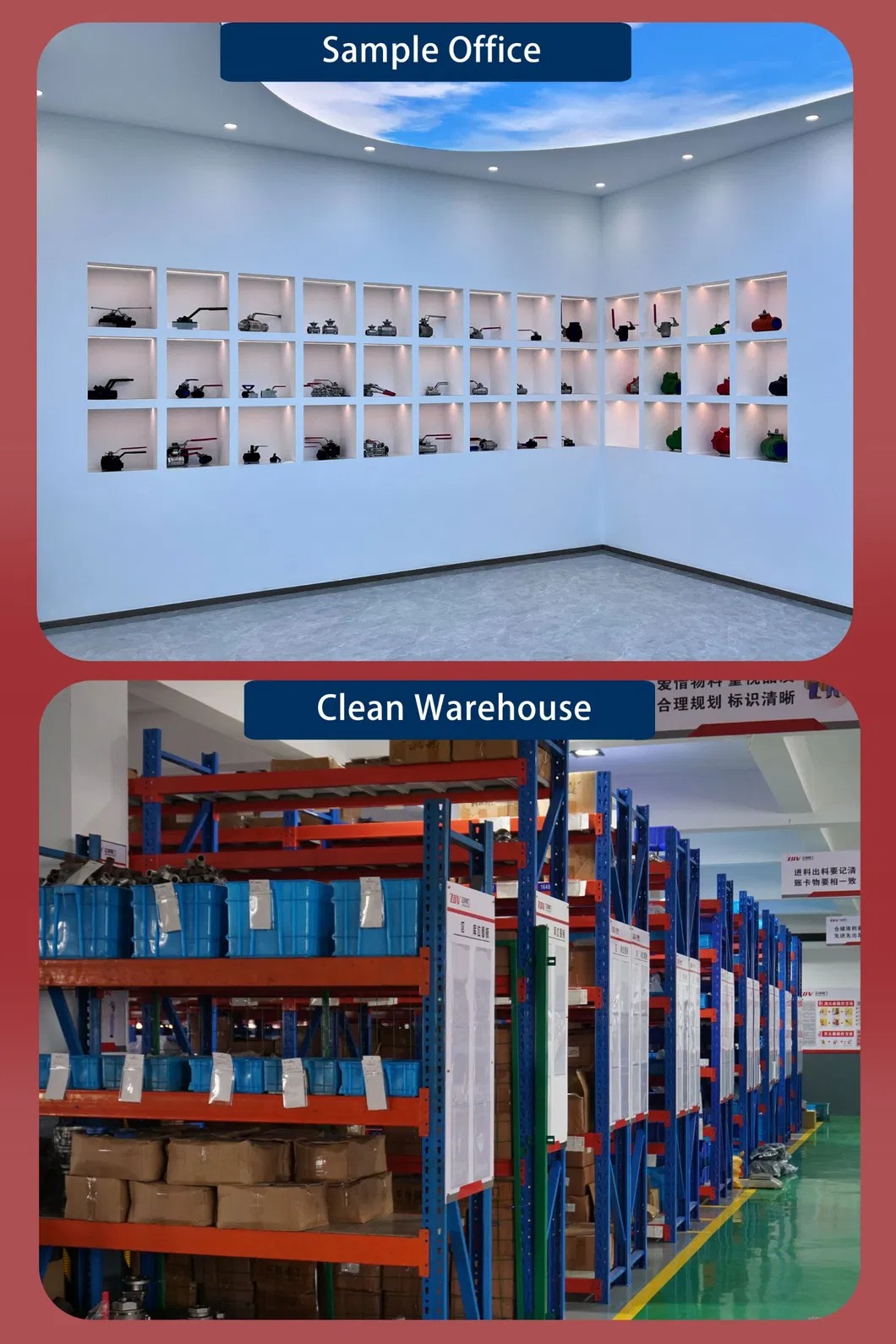

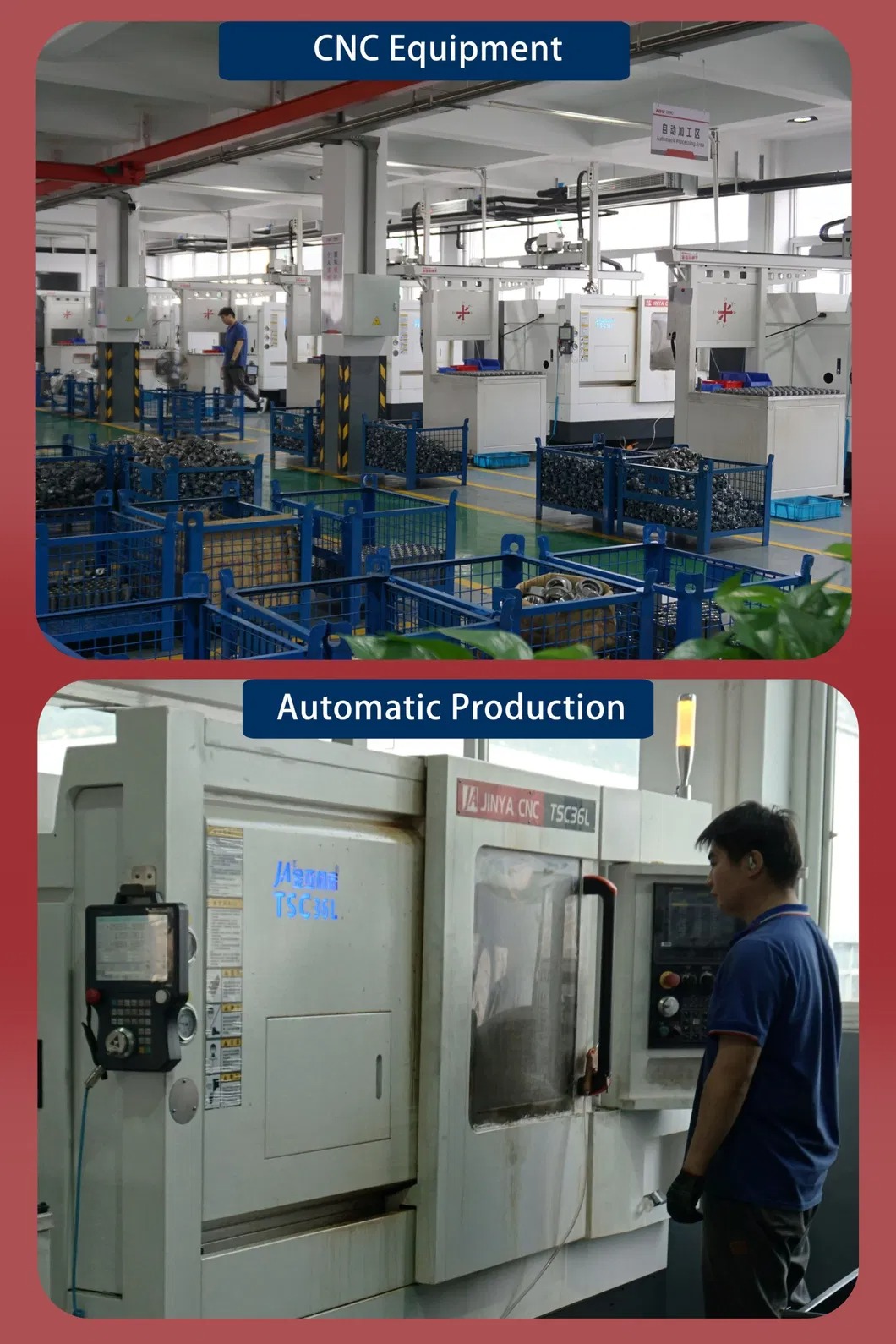

Factory Show
