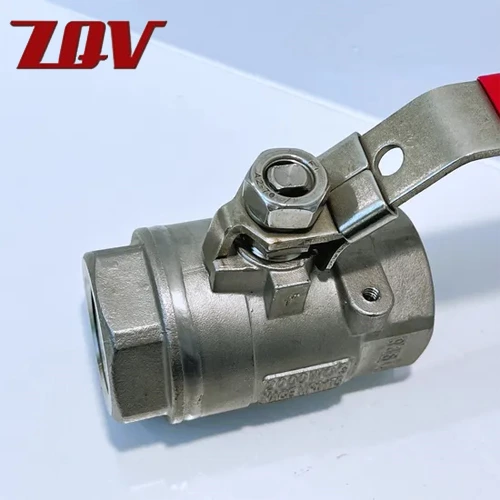

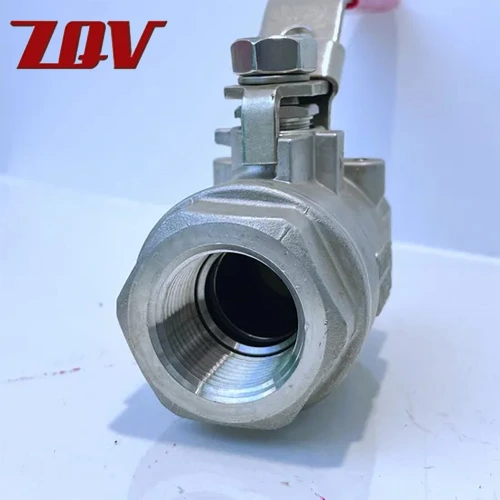

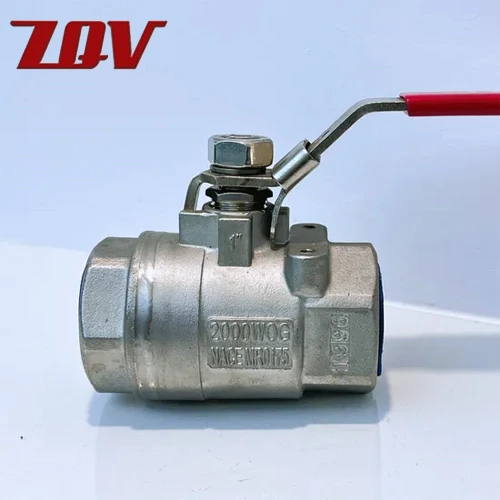

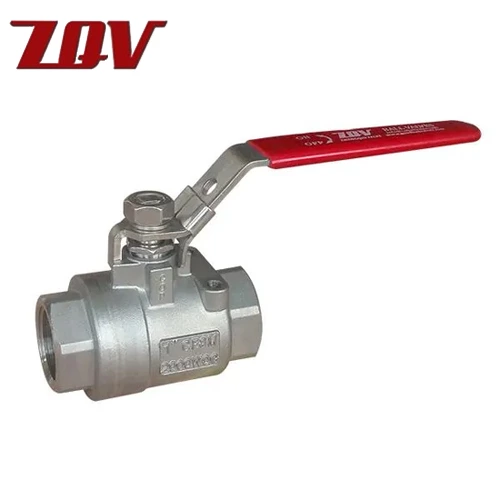

2PC Threaded Stainless Steel Ball Valve 1000 WOG
Size Range
1/4“ to 4”
Body Materials
A351 CF8M / A216 WCB
Temperature Range
'-50℉ to 450℉ (-46℃ to 232℃)
Stem Materials
A182 F316
Maximum Allowable Operating Pressure
1000 PSI (WOG)
Seat Materials
RPTFE
Body Style
Two Piece
Ball Materials
A182 F316
End Connections
Threaded ASME B1.20.1 NPT
Design Standard
ASME B16.34 , MSS SP-110
Ports
Full Port
Testing Standard
MSS-SP72,API 598
Applications
General Service, Air, Water, Oil & Gas
Face to Face
Manufacturers Standard
Description
Port: Full Prot
Size: 1/4" to 4"
Pressure: 2000PSI 138BAR
Body:
Stainless Steel 316 - A351 Gr.CF8M
Stainless Steel 304 - A351 Gr.CF8
SEAT: RPTFE/MPTFE
Max Temp: 450 232
Ends: ASME B1.20.1(NPT) DIN 259/DIN2999/ISO228/BSP/PT
Features: 2-Piece InvestmentCasting Body
Seal-Weld Body
Adjustable Packing Gland
Blow-out-Proof Stem
Lockable Lever Handle
150PSI Saturated Steam
250PSI Steam Service (Multi-Seal Seat)
Spring Return Oval Handle
Test Standard: API607FIRESAGE APPROVAL
API641 FUGITIVE EMISSIONS
API598/ASME B16.34 NACE MR-0175
| Item | PART | MATERIAL |
| 1 | BODY | A315 CF8M(SS316) |
| 2 | BALL | A315 CF8M(SS316) |
| 3 | END CAP | A315 CF8M(SS316) |
| 4 | SEAT | RPTFE |
| 5 | BODY SEAL | RPTFE |
| 6 | STEM | SS316/SS304 |
| 7 | SETM SEAL | PTFE |
| 8 | HANDLE | SS201 |
| 9 | HANDLE COVER | PVC |
| 10 | THRUST WASHER | RPTFE |
| 11 | GLAND NUT | SS304 |
| 12 | HANDLE WASHER | SS304 |
| 13 | HANDLE NUT | A2-70(SS) |
| 14 | LOCKING PAD | SS201 |
| SIZE | PRESSURE | A | B | C | D | KGS |
| 1/4" | 2000PSI | 55 | 11 | 53 | 90 | 0.29 |
| 3/8" | 2000PSI | 55 | 12 | 53 | 90 | 0.29 |
| 1/2" | 2000PSI | 62 | 15 | 58 | 100 | 0.38 |
| 3/4" | 2000PSI | 78 | 20 | 63 | 110 | 0.68 |
| 1" | 2000PSI | 90 | 25 | 71 | 120 | 1.05 |
| 1-1/4" | 2000PSI | 98 | 32 | 78 | 160 | 1.50 |
| 1-1/2" | 2000PSI | 118 | 38 | 92 | 160 | 2.50 |
| 2" | 2000PSI | 136 | 50 | 106 | 175 | 3.60 |
| 2-1/2" | 2000PSI | 156 | 65 | 133 | 220 | 4.80 |
| 3" | 2000PSI | 178 | 80 | 140 | 235 | 6.80 |
| 4" | 2000PSI | 226 | 100 | 160 | 358 | 13.50 |

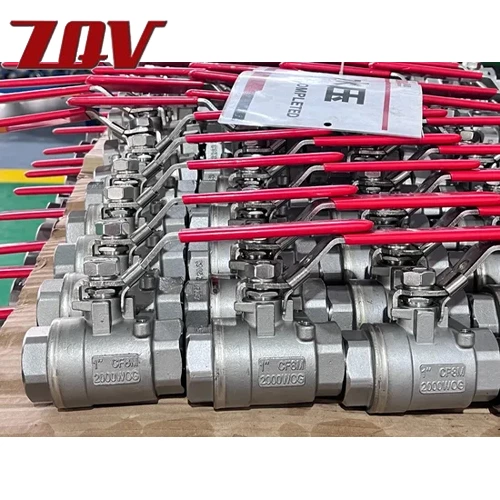

Factory Show
