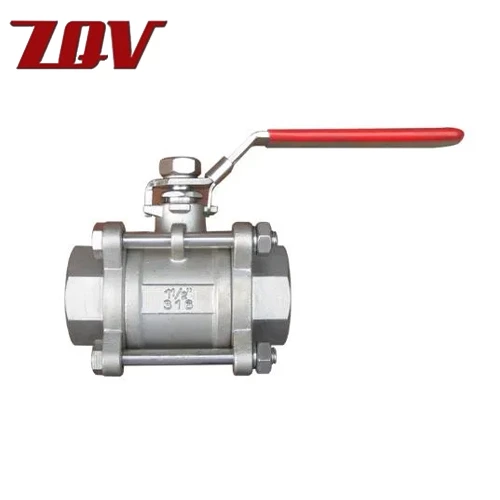

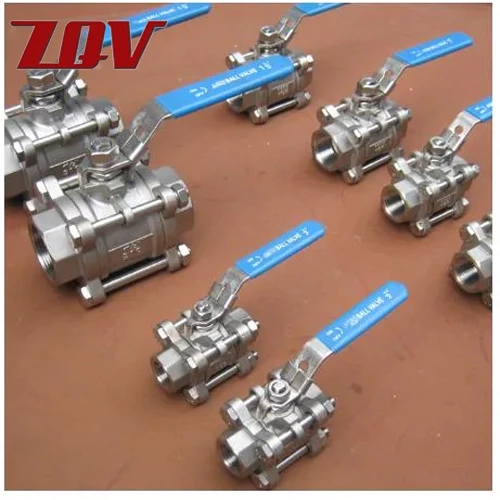

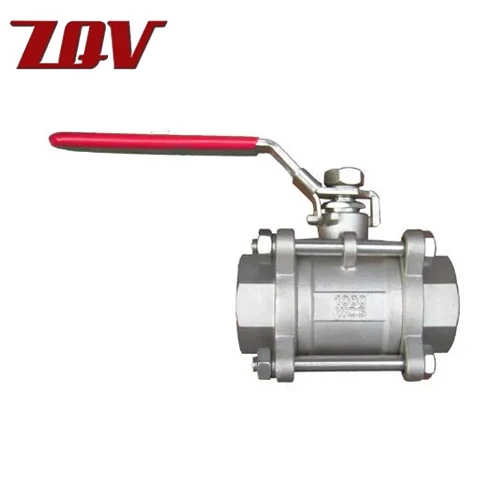

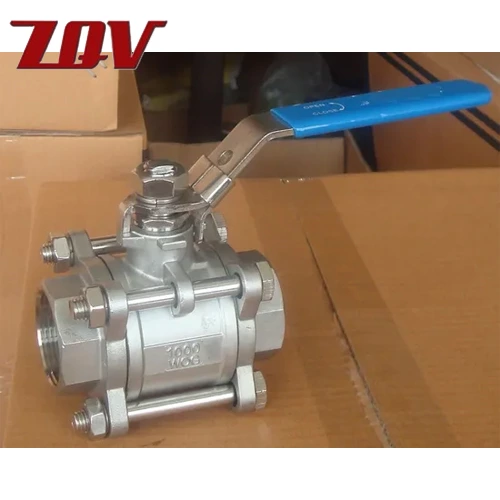

3 Piece Stainless Steel Ball Valve 1000 PSI
Size Range
1/4“ to 4”
Body Materials
A351 CF8M / A216 WCB
Temperature Range
'-50℉ to 450℉ (-46℃ to 232℃)
Stem Materials
A182 F316
Maximum Allowable Operating Pressure
1000 PSI (WOG)
Seat Materials
RPTFE
Body Style
Three Piece
Ball Materials
A182 F316
End Connections
Threaded ASME B1.20.1 NPT,SW,BW
Design Standard
ASME B16.34 , MSS SP-110
Ports
Full Port
Testing Standard
MSS-SP72,API 598
Applications
General Service, Air, Water, Oil & Gas
Face to Face
Manufacturers Standard
Description
Products Overview
Port: Full Port
Size: 1/4" to 4"
Pressure: 1000PSI
Body/Cap: Stainless Steel 316 - A351 Gr.CF8M
Stainless Steel 304 - A351 Gr.CF8
SEAT: Soft Seat(RPTFE)
Max Temp: 450 232
Ends: ASME B1.20.1(NPT)
DIN 259/DIN2999/ISO228/BSP/PT
Socket weld ASME B16.11
Butt weld ASME B16.25Features:
3-Piece Investment Casting Body
Seal-Weld Body
Adjustable Packing Gland
Blow-out-Proof Stem
Lockable Lever Handle
150PSI Saturated Steam
250PSI Steam Service (Multi-Seal Seat)
Spring Return Oval Handle
Test Standard: API598/ASME B16.34
NACE MR-0175
