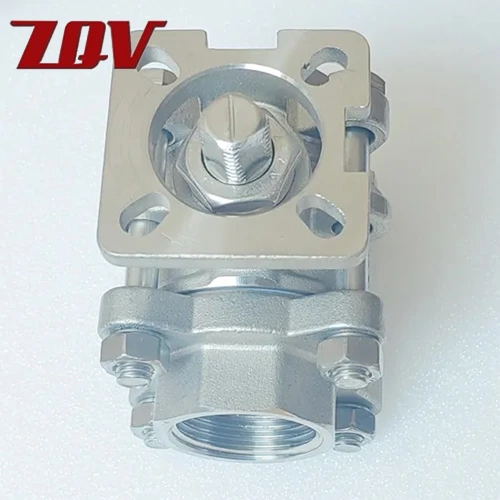

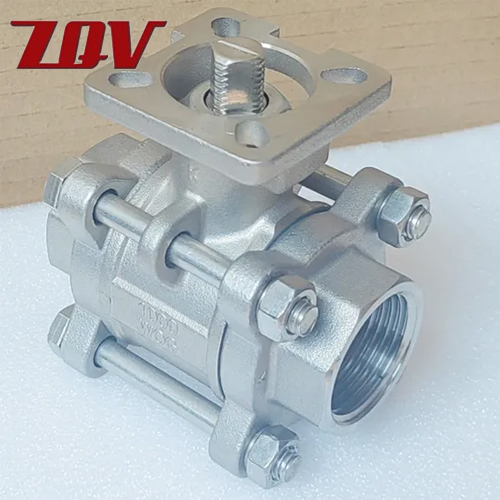

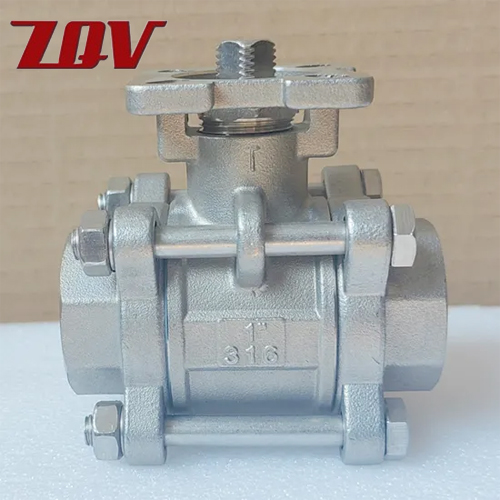

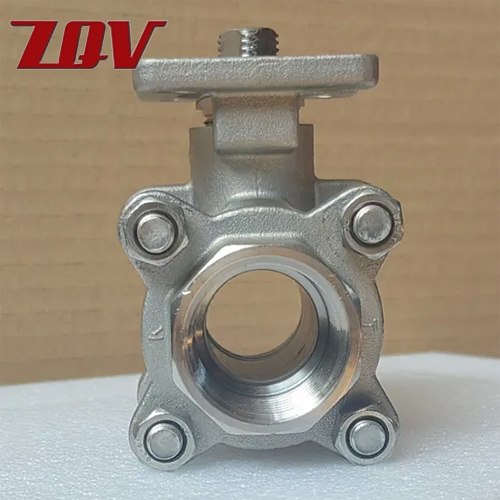

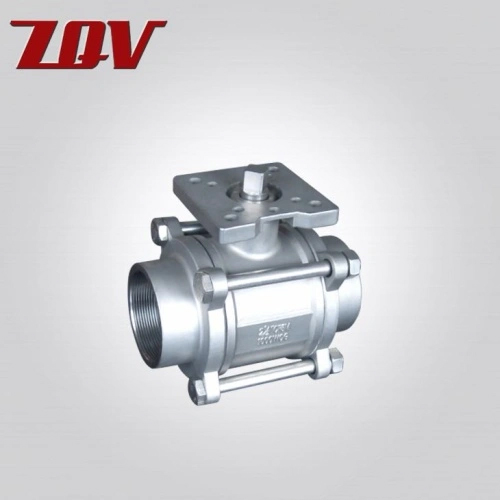

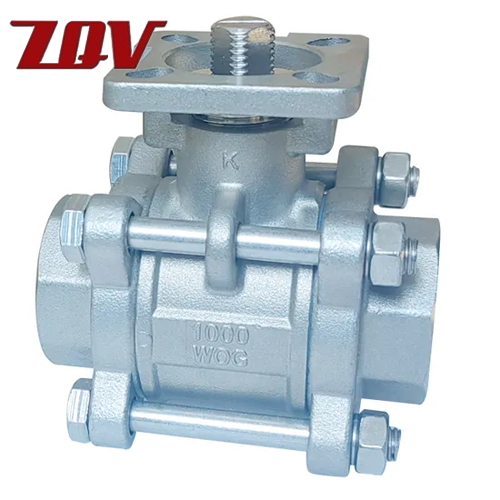

3PC Threaded Ball Valve with ISO5211 Mounting Pad
Size Range
1/4“ to 4”
Body Materials
A351 CF8M / A216 WCB
Temperature Range
'-50℉ to 450℉ (-46℃ to 232℃)
Stem Materials
A182 F316
Maximum Allowable Operating Pressure
1000 PSI (WOG)
Seat Materials
RPTFE
Body Style
Three Piece
Ball Materials
A182 F316
End Connections
Threaded ASME B1.20.1 NPT,SW,BW
Design Standard
ASME B16.34 , MSS SP-110
Ports
Full Port
Testing Standard
MSS-SP72,API 598
Applications
General Service, Air, Water, Oil & Gas
Face to Face
Manufacturers Standard
Description
3PC Mounting Pad Ball Valve 1000PSI PN63
Quick Details
- Standard or Nonstandard: Standard
- Structure: Ball
- Pressure: 1000PSI
- Power: Manual
- Material optional:WCB,CF8,CF8M,CD3MN,CW12MW, CN7M
- Temperature of Media: Normal Temperature
- Media: Oil,Gas,Water
- Port Size: 1/4"-4"
- Place of Origin: Zhejiang, China (Mainland)
- Model Number: 1031S
- Brand Name: ZQV
- Valve Guarantee:: 12months after shipment
- Valve price:: Competitive priceValve Test: 100% quantity tested before delivery
- Factory located:: Wenzhou,Zhejiang,China
- Packaging:: Plywood Cases
- Valve performance:: Top quality produced by ZQV
- Port:: SHANGHAI,NINGBO
- Valve Type:: BALL
- Valve Paint color: Black, Silvery or customization
