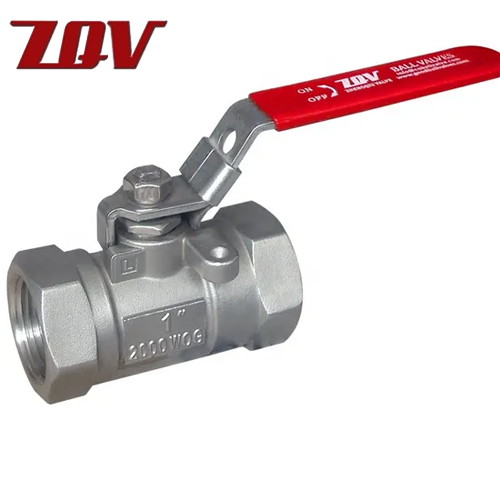

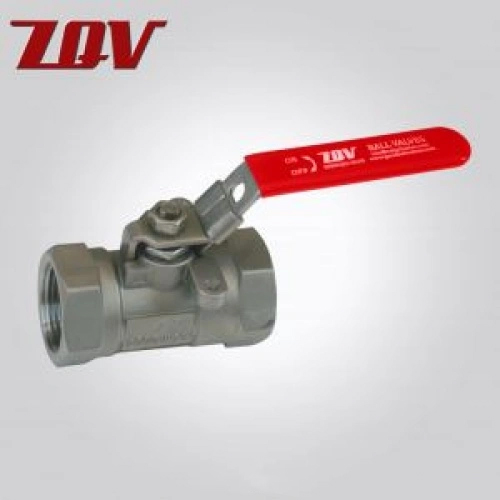

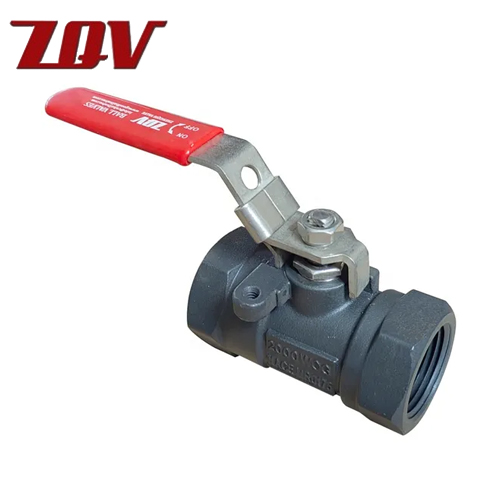

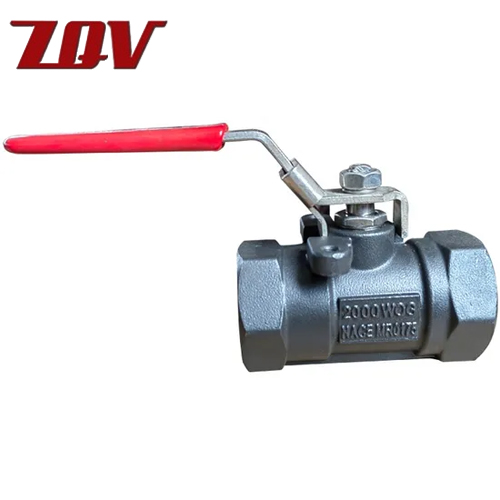

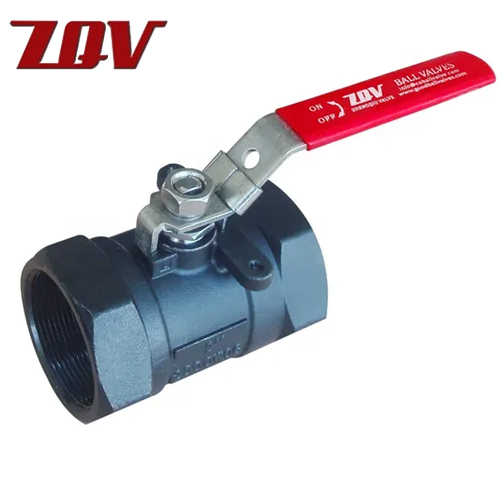

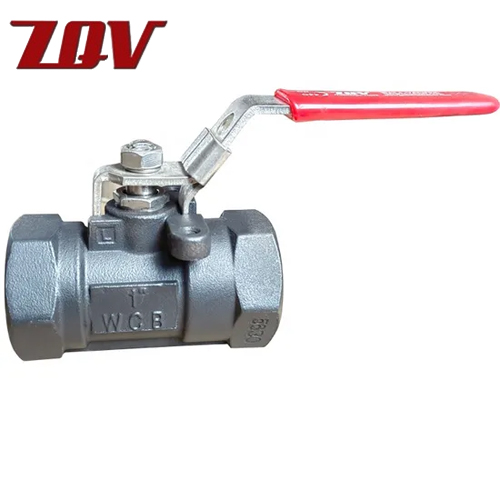

1PC Standard Port Threaded Ball Valve 2000PSI
Size Range
1/4“ to 2”
Body Materials
A351 CF8M / A216 WCB
Temperature Range
'-50℉ to 450℉ (-46℃ to 232℃)
Stem Materials
A182 F316
Maximum Allowable Operating Pressure
2000 PSI (WOG)
Seat Materials
RPTFE
Body Style
Two Piece
Ball Materials
A182 F316
End Connections
Threaded ASME B1.20.1 NPT
Design Standard
ASME B16.34 , MSS SP-110
Ports
Reduced Port
Testing Standard
MSS-SP72,API 598
Applications
General Service, Air, Water, Oil & Gas
Face to Face
Manufacturers Standard
Description
Product Description
1-Piece Uni-Body Reduce Port Ball Valves NPT end 2000PSI
PORT: Reduced Port
Size: 1/4''-2''
Pressure: 2000PSI 138Bar
Body: Carbon Steel A216 WCB
Stainless Steel 316 A351 Gr. CF8M
Seat: RPTFE
Max Temp: 232
Ends: ASME B1.20.1 (NPT)
DIN 259/DIN 2999
ISO228/BSP/PT
Quick Details
- 1-Piece Uni-body Design
- Investment Casting
- Blow-out-Proof Stem
- Nace MR-0175 Full Compliance
- API 607 Firesafe Design
- Lockable Lever Handle
- 150PSI Saturated Steam
- 250PSI Stem Service(Multi-Seal Seat)
- Test Standard: API 598/ ASME B16.34
- Optional: Butterfly Handle, Oval Handle

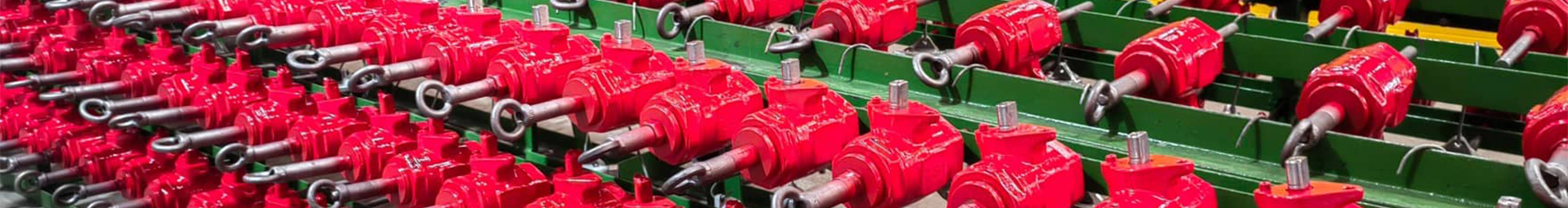

Factory Show
