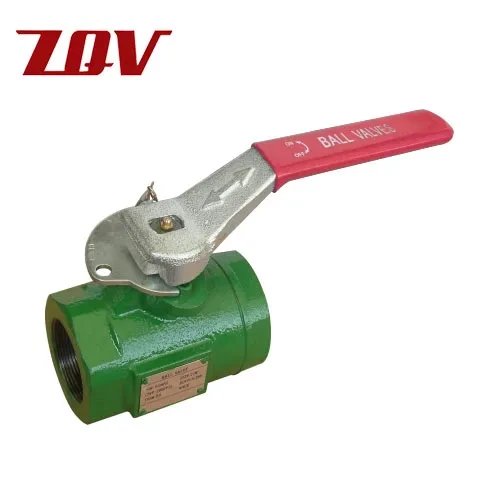

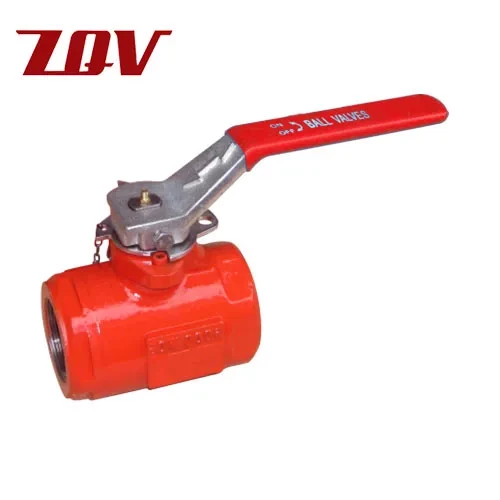

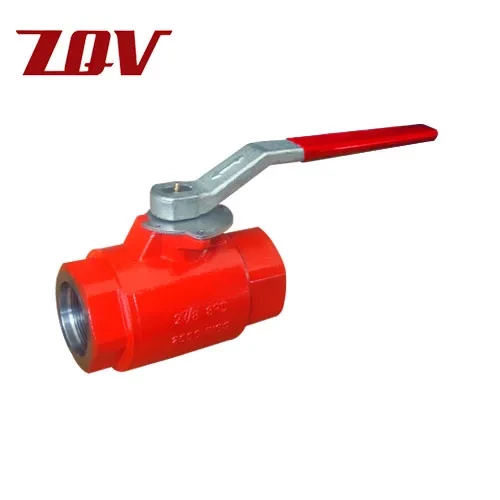

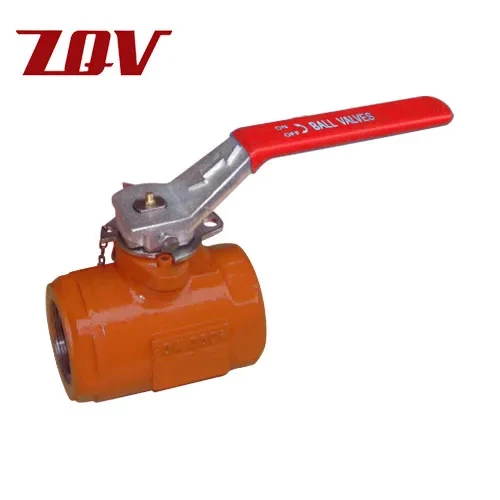

2-pc Threaded Oilfield Ball Valve 2000PSI
Size Range
1“ to 4”
Body Materials
Ductile Iron DI
Temperature Range
-50℉ to 450℉ (-46℃ to 232℃)
Stem Materials
400 SERIES STAINLESS STEEL
Maximum Allowable Operating Pressure
1000 PSI (WOG) - 2000 PSI(WOG)
Seat Materials
RPTFE
Body Style
Two Piece
Ball Materials
400 SERIES STAINLESS STEEL
End Connections
Threaded ASME B1.20.1 NPT / API 5B LP
Design Standard
ASME B16.34 , MSS SP-110,API 6D,API 608
Ports
Full Port/ Reduced Port
Testing Standard
MSS-SP72,API 598
Applications
General Service, Air, Water, Oil & Gas
Face to Face
Manufacturers Standard
Description
Product Description
Oilfield Ball valve 2000PSI
A216 WCB oil patch ball valve 2000PSI 3000PSI 5000PSI
Our oilfield floating ball valve is a two-piece design with a ductile iron body or Carbon Steel, include Fig DIBV, CSBV, ABBV,
A2BV, EUECBV . This economical valves includes many of the premium design features . This valve primarily is used in the oilfield
market, typically chosen for the following applications:
* Production wing valves on low-pressure gas wells
* Production flowlines
* Production gathering systems for water, oil, and gas
* Gas blowdown service
* Tank batteries for storage or production
* Frac water tanks
"The Patch", Quality Economical Valves
Built for Extreme Oilfield Service
Fig. CSBV 3000PSI 5000PSI
| Body | ASTM A105- Carbon Steel ASTM A182 F304 / F304L- Stainless Steel ASTM A182 F316 / F316L- Stainless Steel ASTM A182 F11/F22- Alloy Steel |
| Ball | ASTM A 182 F304/F316/F304L/F316L |
| Stem | ASTM A182 F304/F316/F304L/F316L,SS420,17-4PH |
| Ball Seat& BodySeal |
TFM/MYLON 25% Glass Filled (RPTFE), 25% Carbon Filled (CPTFE) Peek /Delrin 304+Graphite |
| Design standard | BS EN ISO 17292 ( BS 5351), ASME B16.34, API 608,BS EN ISO 12516,BS EN 1983 |
| End Connection | Screed/Threaded End to ASME B1.20.1, Socket Weld End to ASME B16.11, Butt Weld End to ASME B16.25 |
| Ispection& Testing Stardard | API 598, BS EN ISO 12266-I(BS 6755 -I) |
| Manufacturing Size Range | 1''2''3''4'' |
| Pressure Rating of Valve | 2000PSI 3000PSI 5000PSI |
| Option | Reduced Port /Full Port Blow-out-Proof Stem SAE Thread |
