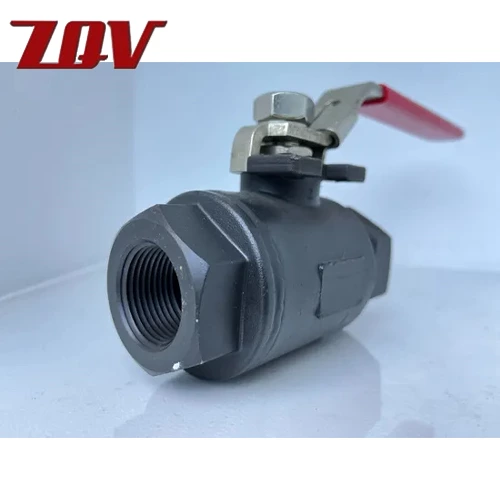

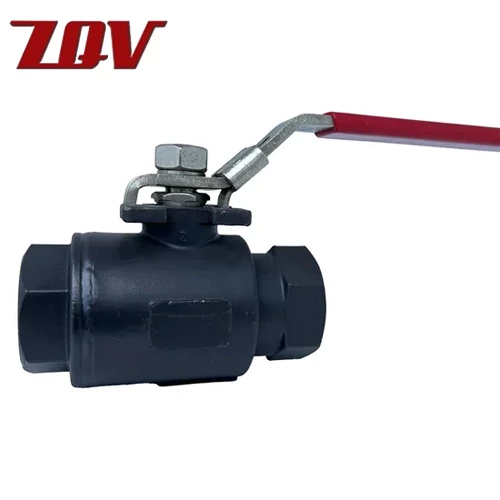

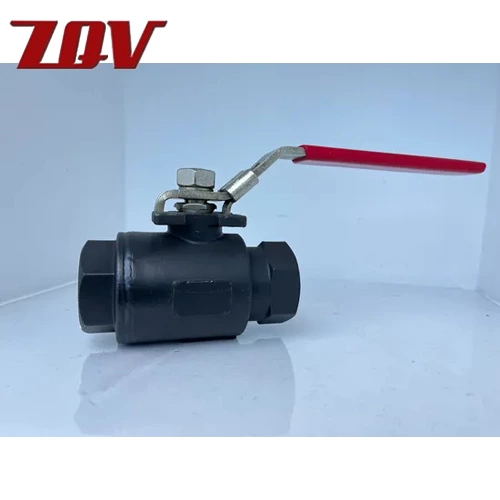

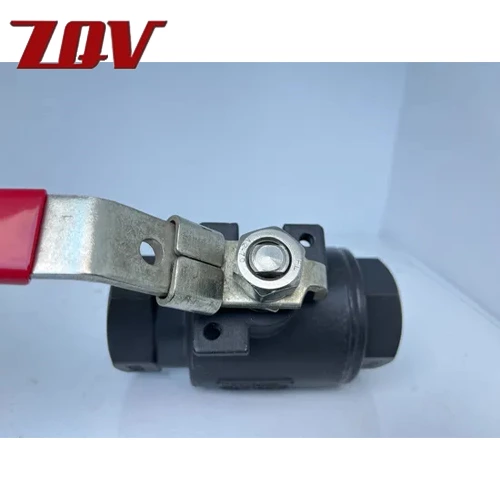

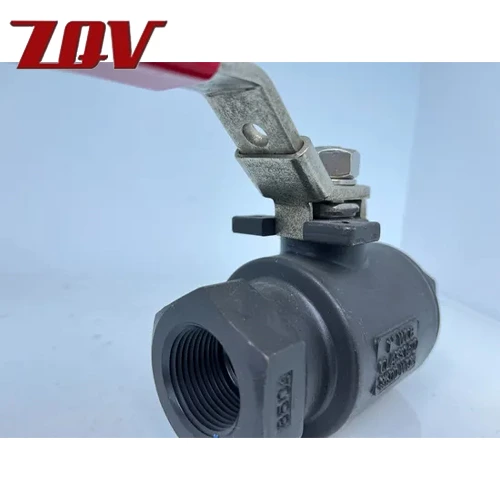

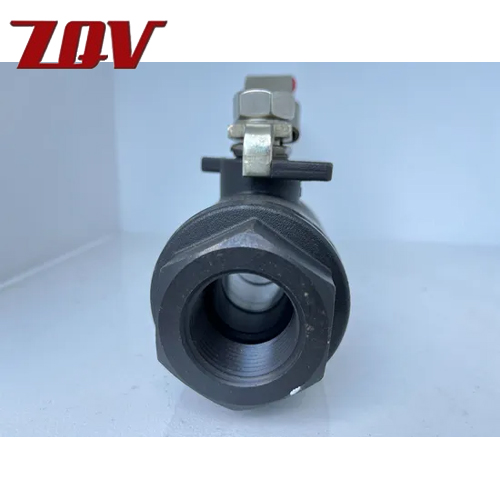

2PC 2000 PSI Seal welded Ball Valves Firesafe
Size Range
1/4“ to 2”
Body Materials
A351 CF8M / A216 WCB
Temperature Range
'-50℉ to 450℉ (-46℃ to 232℃)
Stem Materials
A182 F316
Maximum Allowable Operating Pressure
2000 PSI (WOG)
Seat Materials
RPTFE
Body Style
Two Piece
Ball Materials
A182 F316
End Connections
Threaded ASME B1.20.1 NPT
Design Standard
ASME B16.34 , MSS SP-110
Ports
Full Port
Testing Standard
MSS-SP72,API 598
Applications
General Service, Air, Water, Oil & Gas
Face to Face
Manufacturers Standard
Description
Product Description
| Port: | Full Port |
| Size: | 1/2" to 2" |
| Pressure: | 3600PSI/1500LB |
| Body: | Carbon Steel |
| Seat: | RPTEF/MPTFE |
| Max Temp: | 450ºF 232ºC |
| Ends: | ASME B1.20.1(NPT) / DIN 259 / DIN2999 / ISO228 / BSP / PT |
| Design Standard: | API598/ASME B16.34 |
| Test Standard: | NACE MR-0175(FIRE SAFE) |
| Features: | 2-Piece Investment Casting Body |
| Seal-Weld Body | |
| Adjustable Packing Gland | |
| Blow-out-Proof Stem | |
| Lockable Lever Handle | |
| 150PSI Saturated Steam | |
| 250PSI Steam Service (Multi-Seal Seat) | |
| Spring Return Oval Handle | |
| Optional: | Lockable Lever Handle |
| Spring Return Handle | |
| Oval Handle | |
| Metal Seat | |
| SAE Thread |
| Item | PART | MATERIAL |
| 1 | BODY | A216 WCB |
| 2 | SEAT | DELRIN |
| 3 | BALL | A182 F316 |
| 4 | P-RING | V-ITON |
| 5 | BODY SEAL | GRAHITE |
| 6 | CAP | A216 WCB |
| 7 | STEM | RPTFE |
| 8 | THRUST WASHER | RPTFE |
| 9 | PACKING | SS |
| 10 | GLAND | SS |
| 11 | PIN COVER | A193 B7 |
| 12 | PIN NUT | SS201 |
| 13 | HANDLE | SS |
| 14 | WASHER | SS |
| 15 | NUT | A2-70 |
