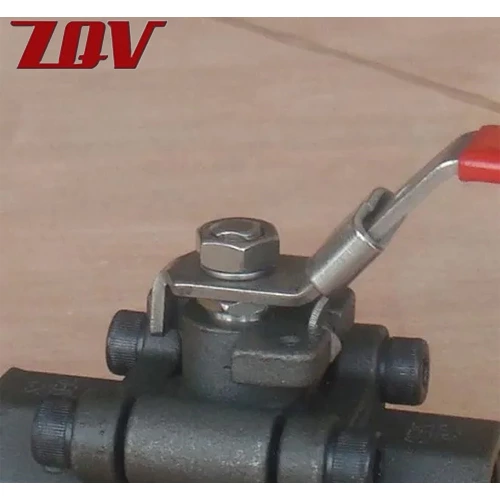

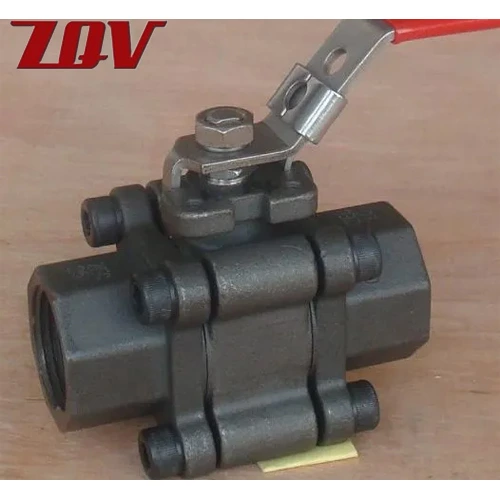

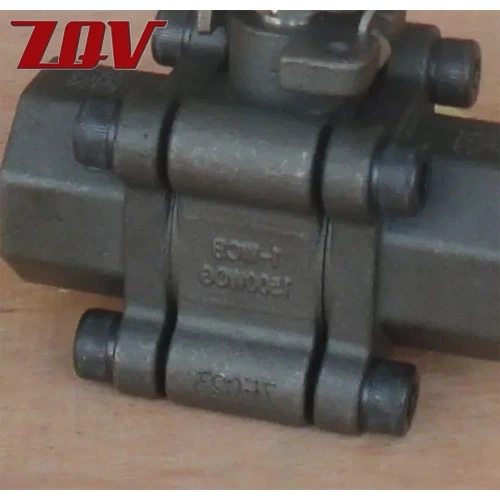

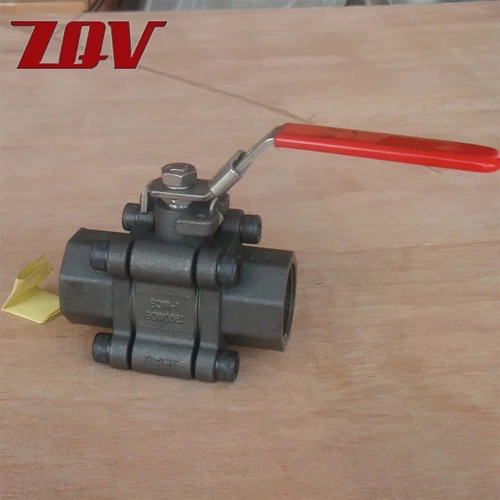

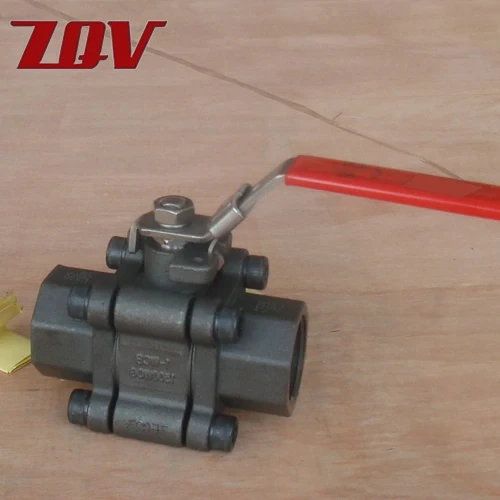

3PC Reduced Port Ball Valves 2000PSI
Size Range
1/4“ to 2”
Body Materials
A351 CF8M / A216 WCB
Temperature Range
'-50℉ to 450℉ (-46℃ to 232℃)
Stem Materials
A182 F316
Maximum Allowable Operating Pressure
2000 PSI (WOG)
Seat Materials
Delrin / Peek
Body Style
Three Piece
Ball Materials
A182 F316
End Connections
Threaded ASME B1.20.1 NPT
Design Standard
ASME B16.34 , MSS SP-110
Ports
Reduced Port
Testing Standard
MSS-SP72,API 598
Applications
General Service, Air, Water, Oil & Gas
Face to Face
Manufacturers Standard
Description
Product Description
Port: Reduced Port
Size: 1/4" to 4"
Pressure: 1500PSI,2000PSI
Body/Cap: Carton Steel A216 Gr.WCB
SEAT: Soft Seat(RPTFE)
Max Temp: 450 232
Ends: ASME B1.20.1(NPT)
DIN 259/DIN2999/ISO228/BSP/PT
Socket weld ASME B16.11
Butt weld ASME B16.25
Features:
3-Piece Investment Casting Body
Seal-Weld BodyIntegral Mounting Pad
Adjustable Packing Gland
Blow-out-Proof Stem
Lockable Lever Handle
150PSI Saturated Steam
250PSI Steam Service (Multi-Seal Seat)
Spring Return Oval Handle
Test Standard: API598/ASME B16.34 NACE MR-0175
