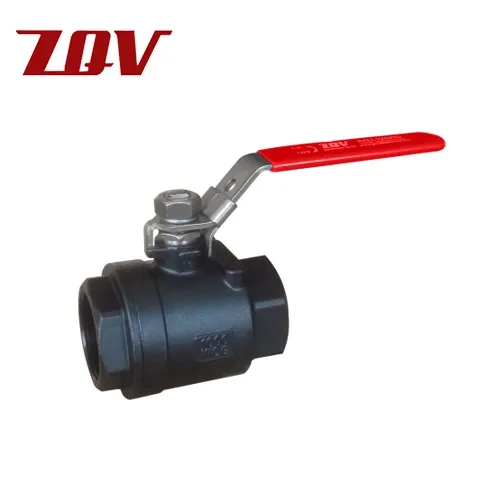

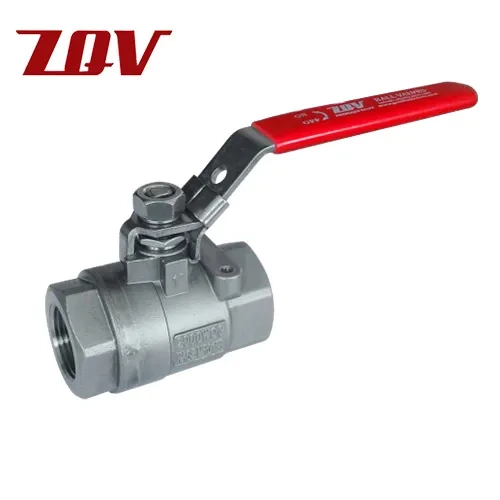

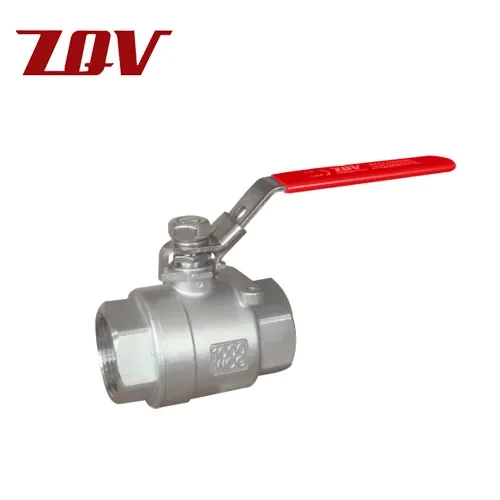

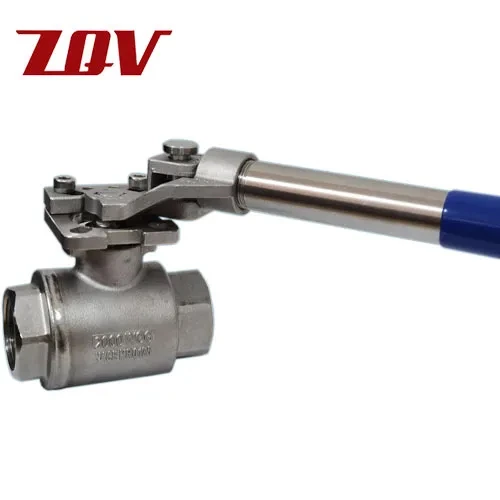

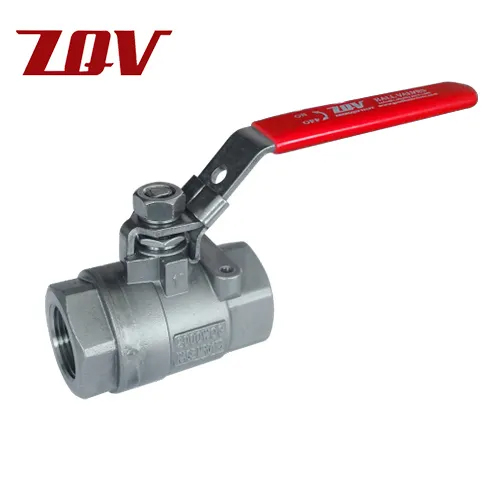

Carbon Steel Threaded Ball Valve 2000 WOG

Product Description

We're well-known as one of the leading 2000PSI threaded SEAL-WELDED ball valves manufacturers in China for our customized service. 2000PSI FNPT Full Port Ball valves feature a high-quality investment cast body and end. The seal-welded offer high integrity pressure rating.

Features:

• Investment Cast Stainless Steel/Carbon Steel with Full Port Body
• NPT Threaded End Connection (ANSI B1.20)
• Padlocking Device Handle for Valve Locakability
• Blow-Out-Proof Stem Design
• Adjustable packing gland
• Available in PTFE, R-PTFE, or High-Temp PTFE (When Requested) seat materials
• Working Pressure of 2000 Psi for Water, Oil, or Gas Medium Application
• Design fully complies with ASME B16.34
• Tested in accordance to API 598

Specifications:

Sizes: ¼" - 4"

Pressure: 2000 PSI / 1500PSI

Port: Full Port /  Reduced Port

Body Material: ASTM  WCB, CF8M, CF8, SS316,SS304,

Ball: 316 Stainless Steel

Stem: 316 Stainless Steel, Blow-out Proof Design

Seat: PTFE, RTFE (PTFE with 15% G.F.), Carbon filled PTFE, PCTFE, TFM

Connection: ASME B1.20.1(NPT), DIN259/DIN2999. BSP/PT, Socket-Weld, Butt-Weld

Casting: Investment Cast

Features: 1-Piece,2-Piece, 3-Piece Body, ,

Locking Handle

Suitable Mediums: WOG (Water,Oil and Gas etc...)


Temperature: Rated from -25 up to 356 degrees (Fahrenheit)

Test Standard: API598/ASME B16.34

Series: 2018CS, 2004WC, 2004WSW,2006WC, 2006WSW,1531CS,1532CS

Option:

API 607 firesafe

NACE MR-0175 Full compliance

Spring Return Handle/Oval Handle
