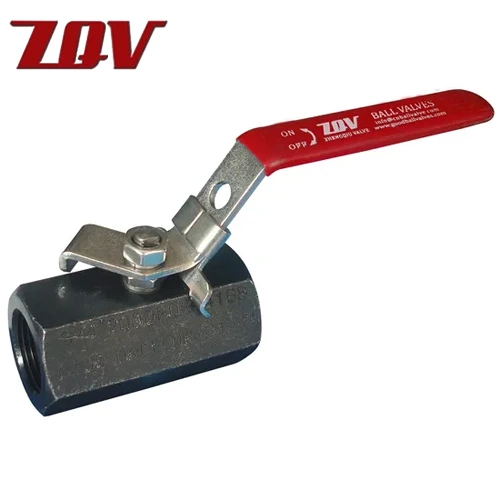

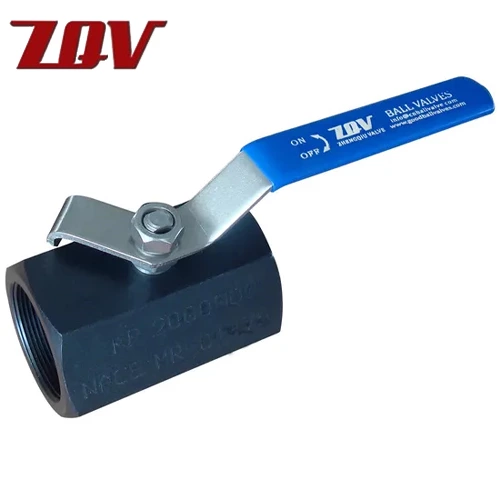

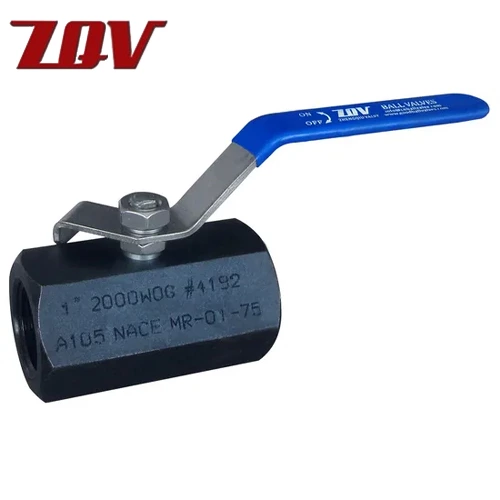

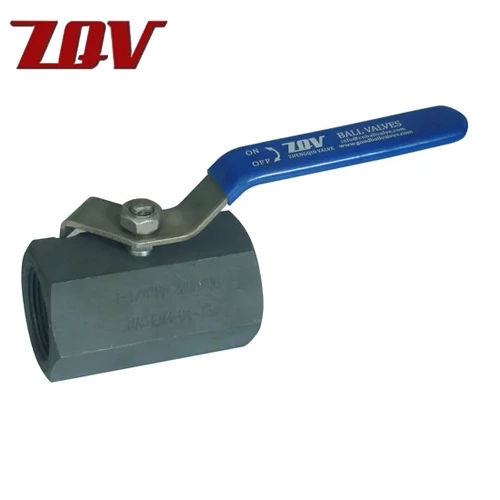

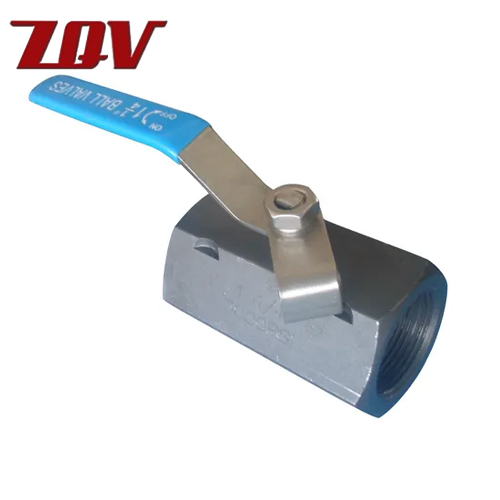

Hex Bar Stock Standard Port Threaded Ball Valve
Size Range
1/4“ to 2”
Body Materials
ASTM A105
Temperature Range
'-50℉ to 450℉ (-46℃ to 232℃)
Stem Materials
A182 F316
Maximum Allowable Operating Pressure
2000 PSI (WOG)
Seat Materials
RPTFE
Body Style
Two Piece
Ball Materials
A182 F316
End Connections
Threaded ASME B1.20.1 NPT
Design Standard
ASME B16.34 , MSS SP-110
Ports
Reduced Port
Testing Standard
MSS-SP72,API 598
Applications
General Service, Air, Water, Oil & Gas
Face to Face
Manufacturers Standard
Description
Quick Detail
- Size: 1/4''-2''(DN6~DN50)
- Pressure Rating: 1000PSI~6000PSI / 800LB~2500LB / PN120~PN420 / 10K~100K
- Material: A351 CF8M/CF8/CF3/CF3M, A216 WCB, A352 LCB/LCC,A105,F304,F316 ,F51/F53/C95800
- Suitable Temperature: -20ºC~180ºC( Different temperature choose different materials).
- Suitable Medium: Water, Steam, Oil and natural gas etc.
Technical Specification
- Design & Manufacture standard: API 6D, API 608, BS 5351/DIN3357/JIS B2071
- Pressure & Temperature standard: ASME B16.34/DIN3230
- Face to face dimension standard: ASME B16.10/DIN3202/JIS B2002
- Flange standard: ASME B16.5, ASME B16.47/DIN2543-2545-2501/JIS B2220
- Test & Inspect standard: API 598, API 6D/DIN2401/JIS B2003.
Feature
- Floating ball, full bore or reduce bore.
- ISO5211 mounting pad for option.
- Blow-out proof stem design.
- PTFE/RPTFE seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp. condition).
- Anti-static design and API 607 Fire Safe Design available
- Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.
