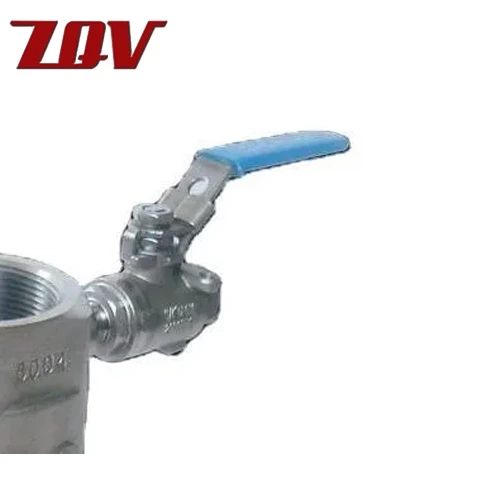

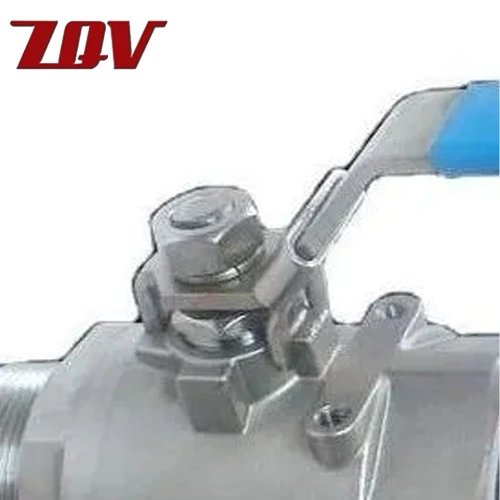

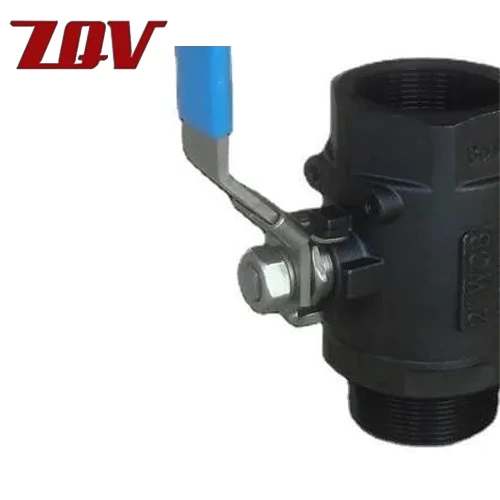

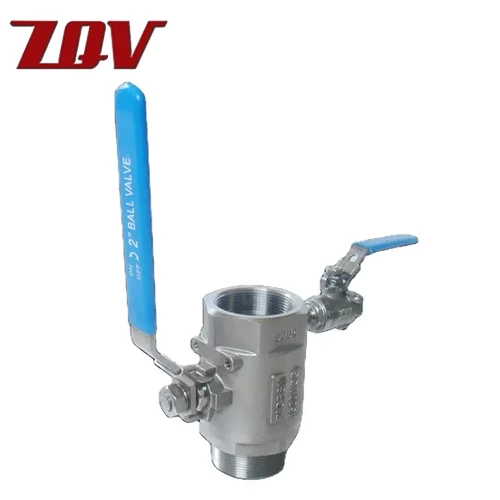

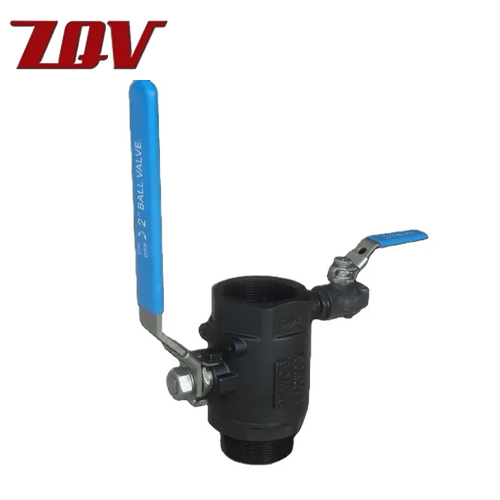

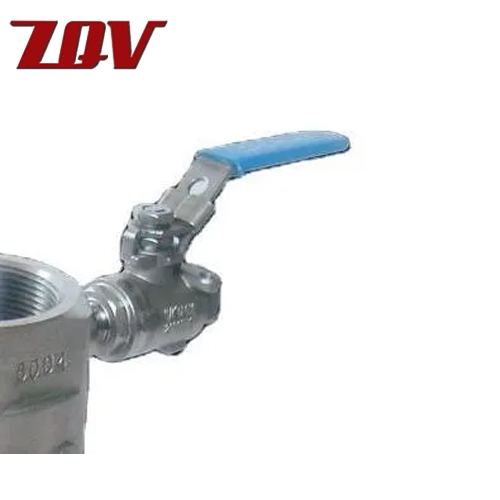

Isolator Floating Male andFemale NPT Ball Valves 2000PSI
Size Range
1" , 2" ,3"
Body Materials
A351 CF8M / A216 WCB
Temperature Range
'-50℉ to 450℉ (-46℃ to 232℃)
Stem Materials
A182 F316
Maximum Allowable Operating Pressure
2000 PSI (WOG)
Seat Materials
Delrin / Peek
Body Style
Two Piece
Ball Materials
A182 F316
End Connections
Threaded ASME B1.20.1 NPT
Design Standard
ASME B16.34 , MSS SP-110
Ports
Full Port / Reduced Port
Testing Standard
MSS-SP72,API 598
Applications
General Service, Air, Water, Oil & Gas
Face to Face
Manufacturers Standard
Description
Product Description
Port: Full Port/Reduced Port
Size: 1" Full port
2" ,3" Reduced port
Pressure: 1" 2000PSI
2" ,3" 1500PSI
Body: Carton Steel /Stainless Steel
SEAT: RPTEF
Max Temp: 450 232
Ends: ASME B1.20.1
DIN 259/DIN2999
ISO228/ BSP/PT
Features:
2-Piece Investment Casting Body
Adjustable Packing Gland
Blow-out-Proof Stem
Lockable Lever & Spring Return Handle
Anti-Static Device
Test Standard: API 598/NACE MR-0175
Design Standard:ASME B16.34
