SEAL WELDED BALL VALVE 2000PSI(138Bar)
Size Range
1/4“ to 4”
Body Materials
A351 CF8M / A216 WCB
Temperature Range
'-50℉ to 450℉ (-46℃ to 232℃)
Stem Materials
A182 F316
Maximum Allowable Operating Pressure
2000 PSI (WOG)
Seat Materials
RPTFE
Body Style
Two Piece
Ball Materials
A182 F316
End Connections
Threaded ASME B1.20.1 NPT
Design Standard
ASME B16.34 , MSS SP-110
Ports
Full Port
Testing Standard
MSS-SP72,API 598
Applications
General Service, Air, Water, Oil & Gas
Face to Face
Manufacturers Standard
Description
Product Description

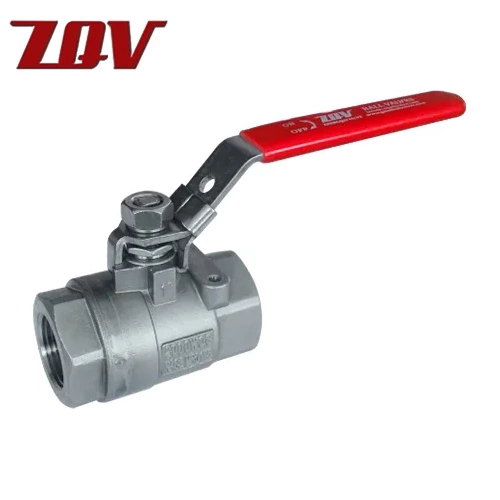

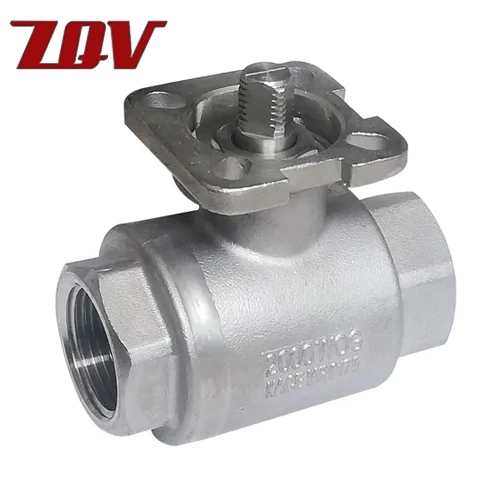

2pc Seal-Welded Threaded Ball valve 2000PSI
- 2-piece Investment casting Body
- Seal-Weld Body
- Adjustable Packing Gland
- Blow-out-proof stem
- Lockable lever Handle
- 150PSI Saturated Steam
- 250PSI Steam Service(Multi-Seal seat)
- Test Standard: API 598/ ASME B16.34
OPTIONAL

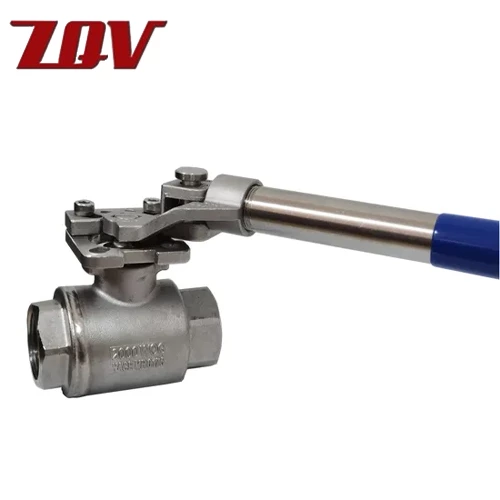

- Spring Return Handle
- Oval Handle
- Nace MR-0175
| Size | 1/4'' to 4'' |
| Port | Full Port |
| Pressure | 2000PSI 138 BAR |
| Body/Cap | ASTM A216 WCB/ ASTM A351 CF8M |
| Ball / Stem | SS Trim SS420/SS304/SS316 |
| Seat | RPTFE / MPTFE |
| Max Temp.: | 232 ° |
| End | ASME B1.20.1(NPT)/DIN 259/DIN2999/BSP/PT |
| Design standard | BS EN ISO 17292 ( BS 5351), ASME B16.34, API 608,BS EN ISO 12516,BS EN 1983 |
| End Connection | Screed/Threaded End to ASME B1.20.1, Socket Weld End to ASME B16.11, Butt Weld End to ASME B16.25 |
| Ispection& Testing Stardard | API 598, BS EN ISO 12266-I(BS 6755 -I) |
| Manufacturing Size Range | 1/2'' 3/4'' 1''1-1/2'' 2'' |
| Pressure Rating of Valve | 1500PSI/2000PSI |
| Option | Reduced Port /Full Port Blow-out-Proof Stem SAE Thread |
