Stailess steel Isolator Valve
Size Range
1" , 2" ,3"
Body Materials
A351 CF8M / A216 WCB
Temperature Range
'-50℉ to 450℉ (-46℃ to 232℃)
Stem Materials
A182 F316
Maximum Allowable Operating Pressure
2000 PSI (WOG)
Seat Materials
Delrin / Peek
Body Style
Two Piece
Ball Materials
A182 F316
End Connections
Threaded ASME B1.20.1 NPT
Design Standard
ASME B16.34 , MSS SP-110
Ports
Full Port / Reduced Port
Testing Standard
MSS-SP72,API 598
Applications
General Service, Air, Water, Oil & Gas
Face to Face
Manufacturers Standard
Description
Product Attributes
Brand: OEM
Types Of: Ball Valves
Support Customization: Oem
Place Of Origin: China
Application: General
Medium Temperature: Medium Temperature
Power: Manual
Flow Medium: Gas, Water, Oil
Structure: Ball
Body Construction: seal-welded body

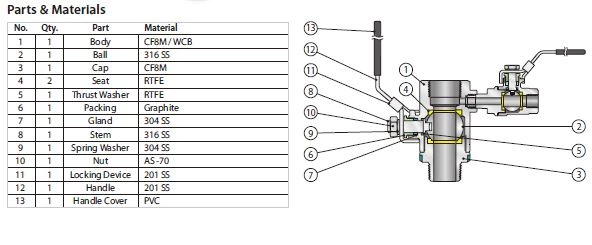

Product Description
ZQV Isolator Valves, carbon steel or stainless steel body, 1'' 2'', NPT, with 1/4'' bleed, pressure rate 1500 psi, 2000 psi
Series IBV-C/IBV-S
Features
- Enables Isolation of the Safety Relief Valve from the Pressure Source for Relieving Set Point Verification Without Shutdown or Removal
- Latch-Lock Handles on Isolator & Test Port Valve
- Seal Welded Body & Test Port Valve
Description
-
Full Port
-
2-piece Seal Welded Body
-
Size 3'' 1500PSI M×F NPT×1/4'' Bleed
- Size 2'' 1500PSI M×F NPT×1/4'' Bleed
-
Size 1'' 2000PSI M×F NPT×1/4'' Bleed
-
Body ASTM A216 WCB, ASTM A351 CF8M
-
SS316 Trim
-
threaded end
-
Seat RPTFE
-
Locking Handle
-
Nace MR-0175
Our Advantage

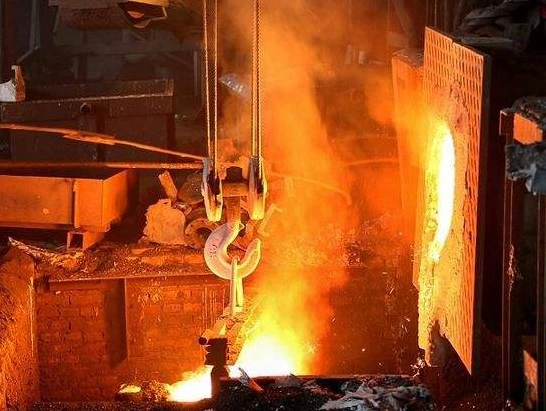

Casting Plant
We own a foundry plant, this will ensure the casting quality and delivery time, also help us save the raw material cost, and provide our customer competitive price.
100% Individually Test
Test each valve strictly according to the API 598 standard.
Automation Technology
We uses the latest automation technology, including CNC machine center and many special-purpose machines such as automatic welding
machine, ultrasonic cleaning equipment
