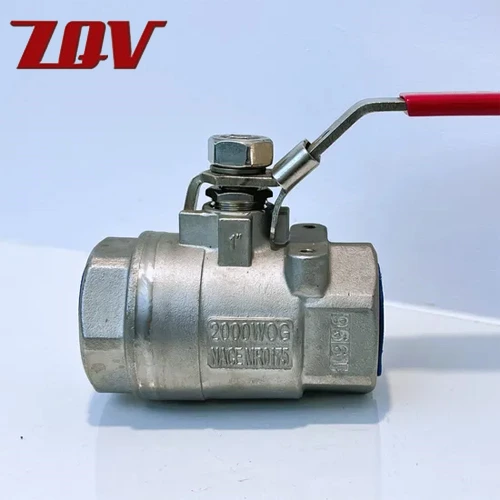

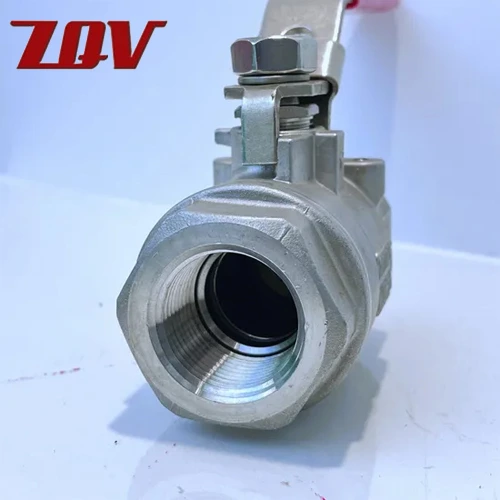

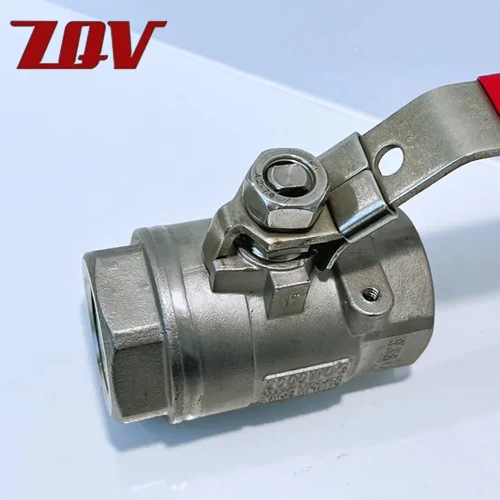

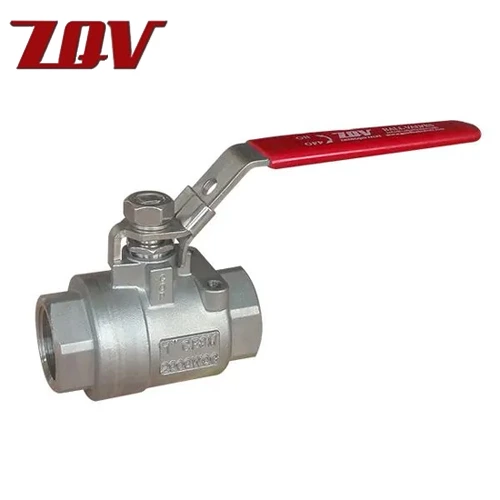

2PC 3000PSI Stainless Steel Screwed Ball Valve
Size Range
1/4“ to 2”
Body Materials
A351 CF8M / A216 WCB
Temperature Range
'-50℉ to 450℉ (-46℃ to 232℃)
Stem Materials
A182 F316
Maximum Allowable Operating Pressure
3000 PSI (WOG)
Seat Materials
Delrin / Peek
Body Style
Two Piece
Ball Materials
A182 F316
End Connections
Threaded ASME B1.20.1 NPT
Design Standard
ASME B16.34 , MSS SP-110
Ports
Full Port
Testing Standard
MSS-SP72,API 598
Applications
General Service, Air, Water, Oil & Gas
Face to Face
Manufacturers Standard
Description
Product Description
Port: Full Prot
Size: 1/4" to 4"
Pressure: 2000PSI 138BAR
Body:
Stainless Steel 316 - A351 Gr.CF8M
Stainless Steel 304 - A351 Gr.CF8
SEAT: RPTFE/MPTFE
Max Temp: 450 232
Ends: ASME B1.20.1(NPT) DIN 259/DIN2999/ISO228/BSP/PT
Features: 2-Piece InvestmentCasting Body
Seal-Weld Body
Adjustable Packing Gland
Blow-out-Proof Stem
Lockable Lever Handle
150PSI Saturated Steam
250PSI Steam Service (Multi-Seal Seat)
Spring Return Oval Handle
Test Standard: API607FIRESAGE APPROVAL
API641 FUGITIVE EMISSIONS
API598/ASME B16.34 NACE MR-0175
| Item | PART | MATERIAL |
| 1 | BODY | A315 CF8M(SS316) |
| 2 | BALL | A315 CF8M(SS316) |
| 3 | END CAP | A315 CF8M(SS316) |
| 4 | SEAT | RPTFE |
| 5 | BODY SEAL | RPTFE |
| 6 | STEM | SS316/SS304 |
| 7 | SETM SEAL | PTFE |
| 8 | HANDLE | SS201 |
| 9 | HANDLE COVER | PVC |
| 10 | THRUST WASHER | RPTFE |
| 11 | GLAND NUT | SS304 |
| 12 | HANDLE WASHER | SS304 |
| 13 | HANDLE NUT | A2-70(SS) |
| 14 | LOCKING PAD | SS201 |
| SIZE | PRESSURE | A | B | C | D | KGS |
| 1/4" | 2000PSI | 55 | 11 | 53 | 90 | 0.29 |
| 3/8" | 2000PSI | 55 | 12 | 53 | 90 | 0.29 |
| 1/2" | 2000PSI | 62 | 15 | 58 | 100 | 0.38 |
| 3/4" | 2000PSI | 78 | 20 | 63 | 110 | 0.68 |
| 1" | 2000PSI | 90 | 25 | 71 | 120 | 1.05 |
| 1-1/4" | 2000PSI | 98 | 32 | 78 | 160 | 1.50 |
| 1-1/2" | 2000PSI | 118 | 38 | 92 | 160 | 2.50 |
| 2" | 2000PSI | 136 | 50 | 106 | 175 | 3.60 |
| 2-1/2" | 2000PSI | 156 | 65 | 133 | 220 | 4.80 |
| 3" | 2000PSI | 178 | 80 | 140 | 235 | 6.80 |
| 4" | 2000PSI | 226 | 100 | 160 | 358 | 13.50 |

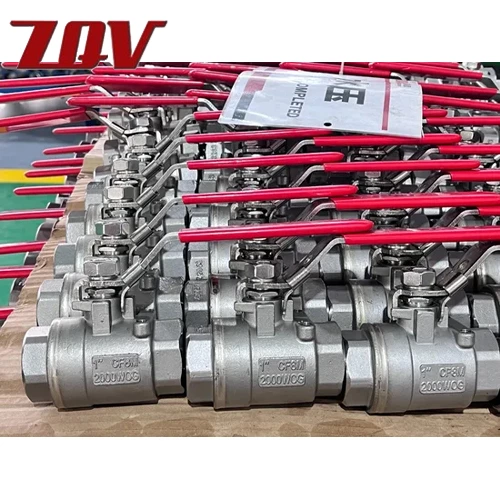

Factory Show
