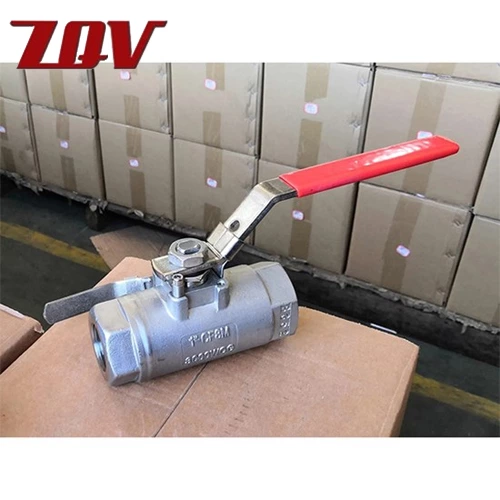

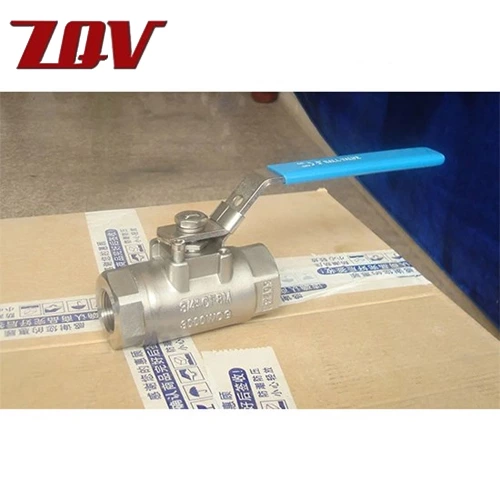

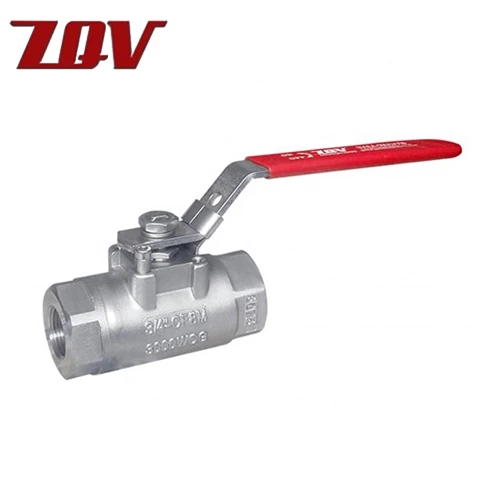

2PC Investment Casting Threaded Ball Valve 3000 PSI
Size Range
1/4“ to 2”
Body Materials
A351 CF8M / A216 WCB
Temperature Range
'-50℉ to 450℉ (-46℃ to 232℃)
Stem Materials
A182 F316
Maximum Allowable Operating Pressure
3000 PSI (WOG)
Seat Materials
Delrin / Peek
Body Style
Two Piece
Ball Materials
A182 F316
End Connections
Threaded ASME B1.20.1 NPT
Design Standard
ASME B16.34 , MSS SP-110
Ports
Full Port
Testing Standard
MSS-SP72,API 598
Applications
General Service, Air, Water, Oil & Gas
Face to Face
Manufacturers Standard
Description
Product Description
Product Details
Port: Full Port
Size: 1/2" to 2"
Pressure: 3000PSI 210BAR
Body: Stainless Steel 316 - A351 Gr.CF8M
Stainless Steel 304 - A351 Gr.CF8
SEAT: DELRIN
Max Temp: 180ºF 82ºC
Ends: ASME B1.20.1(NPT)
DIN 259/DIN2999/
ISO228/BSP/PT
Features:
2-Piece Investment Casting Body
Seal-Weld Body
Adjustable Packing Gland
Blow-out-Proof Stem
ISO 5211 Mounting Pad
Lockable Lever Handle
150PSI Saturated Steam
250PSI Steam Service (Multi-Seal Seat)
Spring Return & Oval Handle
Test Standard: API598/ASME B16.34/API 607(Fireproof Test)
NACE MR-0175(Fire Safe)
| Item | PART | MATERIAL |
| 1 | BODY | A315 CF8M(SS316) |
| 2 | SEAT | DELRIN |
| 3 | BALL | A182 |
| 4 | P-RING | VINTON |
| 5 | BODY SEAL | GRAPHITE |
| 6 | CAP | A315 CF8M(SS316) |
| 7 | STEM | A182 |
| 8 | THRUST WASHER | RPTFE |
| 9 | PACKING | RPTFE |
| 10 | GLAND | SS |
| 11 | PIN COVER | SS |
| 12 | PIN NUT | A193 |
| 13 | HANDLE | SS201 |
| 14 | WASHER | SS |
| 15 | NUT | A2-70 |
| SIZE | PRESSURE | L | H | L1 | KGS |
| 1/4" | 3000PSI | 98 | 60 | 147 | 0.95 |
| 3/8" | 3000PSI | 98 | 60 | 147 | 0.94 |
| 1/2" | 3000PSI | 98 | 60 | 147 | 0.86 |
| 3/4" | 3000PSI | 108 | 71 | 190 | 1.50 |
| 1" | 3000PSI | 137 | 88 | 190 | 2.50 |
| 1-1/4" | 3000PSI | 137 | 94 | 228 | 3.30 |
| 1-1/2" | 3000PSI | 160 | 115 | 268 | 5.55 |
| 2" | 3000PSI | 160 | 138 | 370 | 7.60 |
| 2-1/2" | 3000PSI | 165 | 140 | 400 | 8.60 |
| 3" | 3000PSI | 180 | 152 | 415 | 13.70 |
| 4" | 3000PSI | 200 | 162 | 450 | 18.90 |
