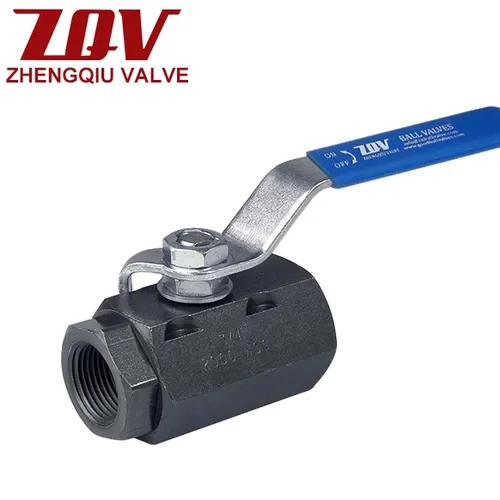

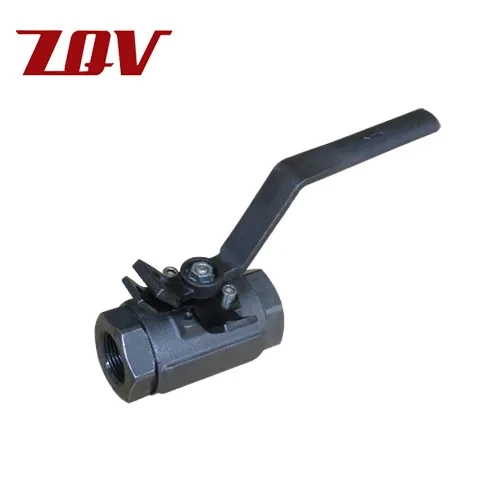

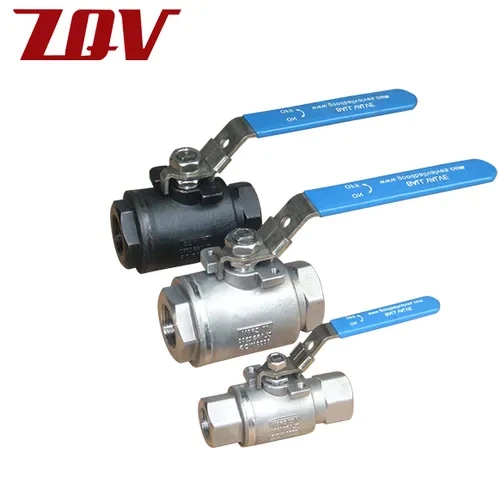

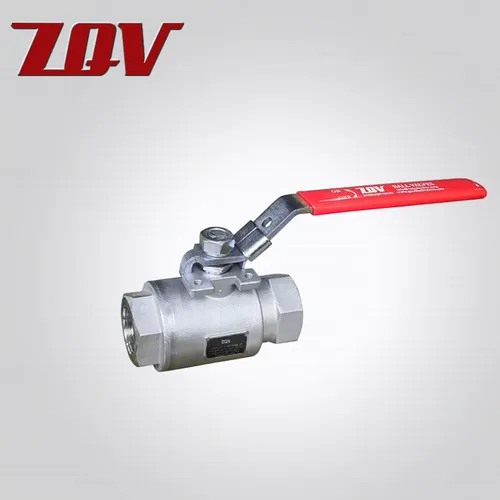

3PC Stainless Steel Threaded Ball Valves 3000 PSI
Size Range
1/2“ to 2”
Body Materials
A351 CF8M / A105 / LF2
Temperature Range
'-50℉ to 450℉ (-46℃ to 232℃)
Stem Materials
A182 F316
Maximum Allowable Operating Pressure
3000 PSI (WOG)
Seat Materials
Delrin / Peek
Body Style
Three Piece
Ball Materials
A182 F316
End Connections
Threaded ASME B1.20.1 NPT
Design Standard
ASME B16.34 , API 607
Ports
Full Port / Reduced Port
Testing Standard
MSS-SP72,API 598
Applications
General Service, Air, Water, Oil & Gas
Face to Face
Manufacturers Standard
Description
Product Description
3-Piece Forged Steel Threaded Body Ball Valve
- 3-Piece Threaded body design
- Reduced Port/ Full Port
- Blow out proof stem
- Integral Mounting Pad
- Lockable lever Handle
- Nace MR-0175
- API 607 Firesafe Approval
| Size | 1/4'' to 4'' DN8 to DN50 |
| Port | Full Port |
| Pressure | 2000PSI 138 BAR |
| Body/Cap | ASTM A105/ ASTM A350 LF2 / ASTM A351 CF8M |
| Ball / Stem | ASTM A182 F316 |
| Seat | RPTFE / MPTFE/PEEK |
| Max Temp.: | 232 ° |
| End | ASME B1.20.1(NPT)/DIN 259/DIN2999/BSP/PT |
| Design standard | ASME B16.34, API 608 |
| End Connection | Screed/Threaded End to ASME B1.20.1, Socket Weld End to ASME B16.11, Butt Weld End to ASME B16.25 |
| Ispection& Testing Stardard | API 598, BS EN ISO 12266-I(BS 6755 -I) |
| Manufacturing Size Range | 1/4''~ 2'' |
| Pressure Rating of Valve | 2000PSI/3000PSI/6000PSI |
| Option | Spring Return Handle |
