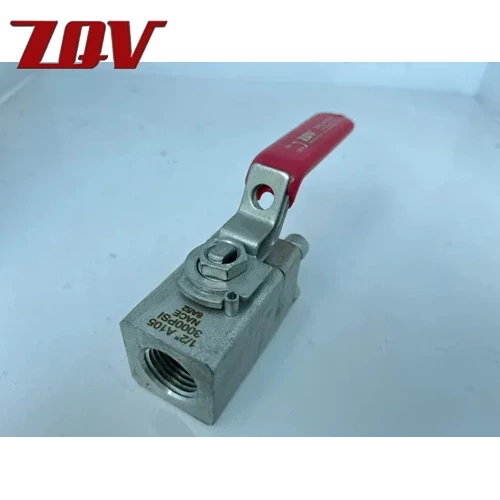

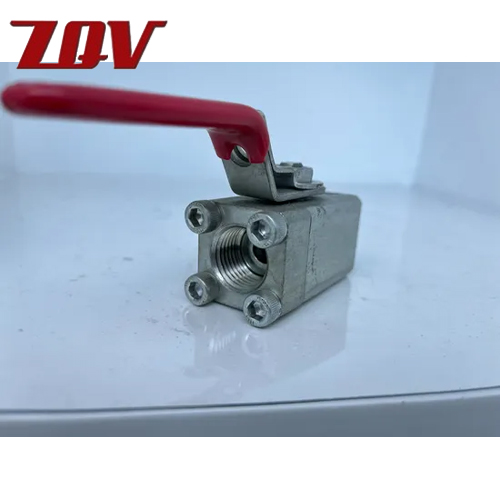

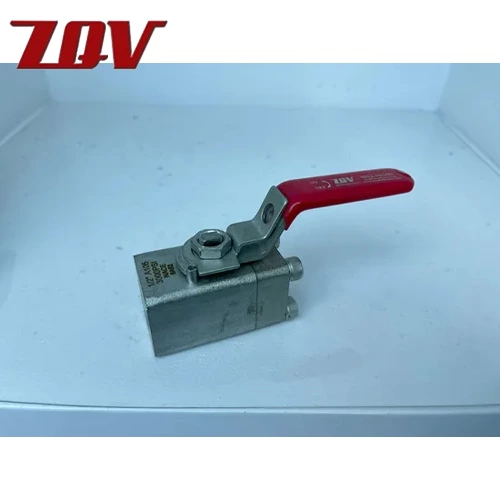

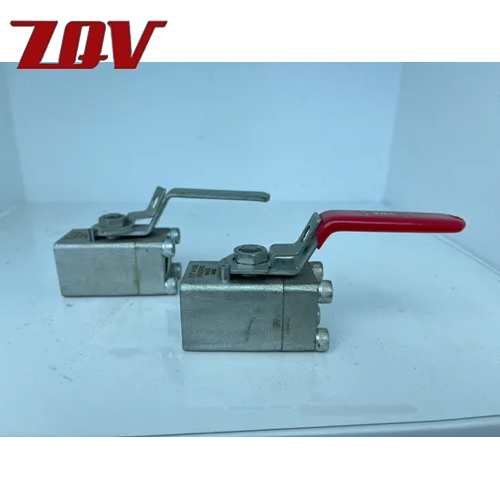

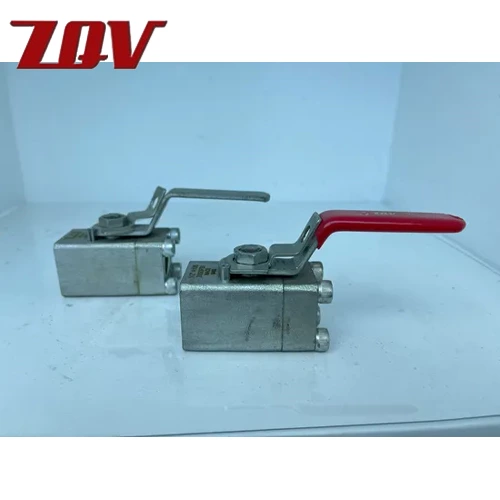

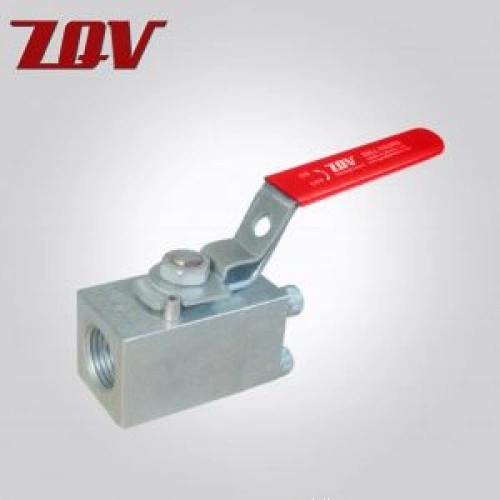

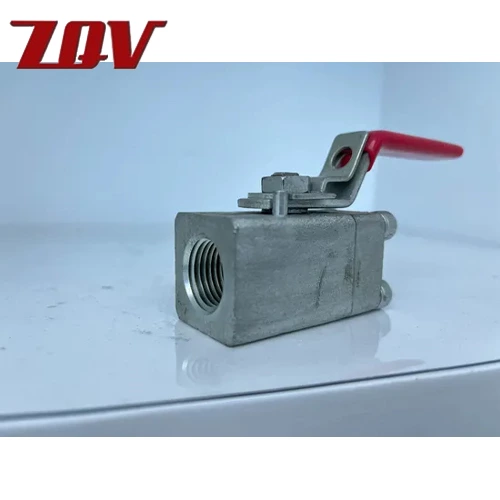

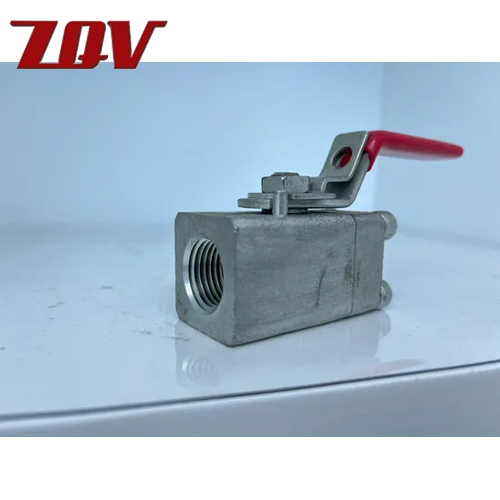

Threaded End Bolted Body Floating Ball Valve
Size Range
1/4“ to 1”
Body Materials
ASTM A105
Temperature Range
'-50℉ to 450℉ (-46℃ to 232℃)
Stem Materials
A182 F316
Maximum Allowable Operating Pressure
3000 PSI (WOG)
Seat Materials
Delrin
Body Style
Two Piece
Ball Materials
A182 F316
End Connections
Threaded ASME B1.20.1 NPT
Design Standard
ASME B16.34 , MSS SP-110
Ports
Full Port
Testing Standard
MSS-SP72,API 598
Applications
General Service, Air, Water, Oil & Gas
Face to Face
Manufacturers Standard
Description
Product Description
Products Overview
Port: Full Port/Reduced Port
Size: 1/4" 3/4" Full port
1/2" 1" Reduced port
Pressure: 3000PSI
Body: Carton Steel /Stainless Steel
SEAT: DELRIN/NYLON
Max Temp: 450 232
Ends: ASME B1.20.1(NPT)
DIN259/DIN2999/ISO228/BSP/PT
Features:
2-Piece Forged Body
Bolt Body Construction
Blow-out-Proof Stem
Lockable Lever & Spring Return Handle
Test Standard: API 598/NACE MR-0175
Design Standard:ASME B16.34
| Size | d(mm) | S(mm) | L(mm) | H(mm) | W(mm) | Weight(kgs) |
| 1/4" | 9 | 31 | 57 | 26 | 96 | 0.45 |
| 1/2" | 9 | 31 | 57 | 26 | 96 | 0.43 |
| 3/4" | 19 | 50 | 92 | 40 | 120 | 1.60 |
| 1" | 19 | 50 | 92 | 40 | 120 | 1.70 |
