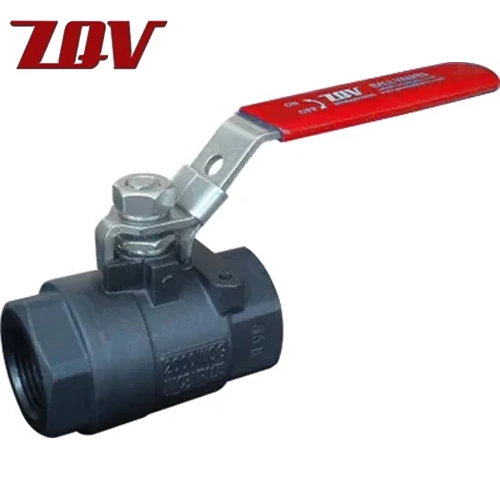

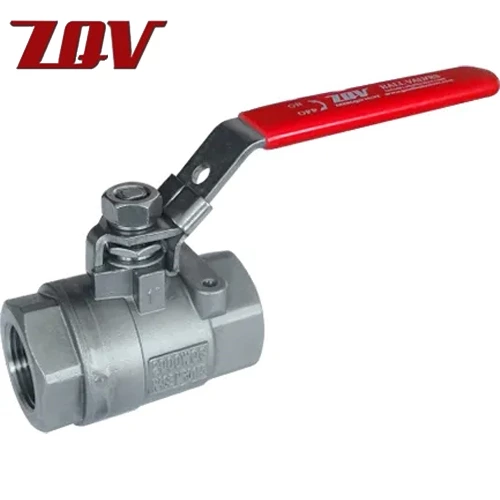

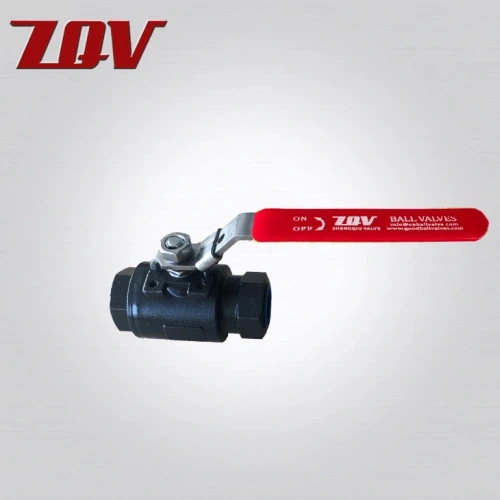

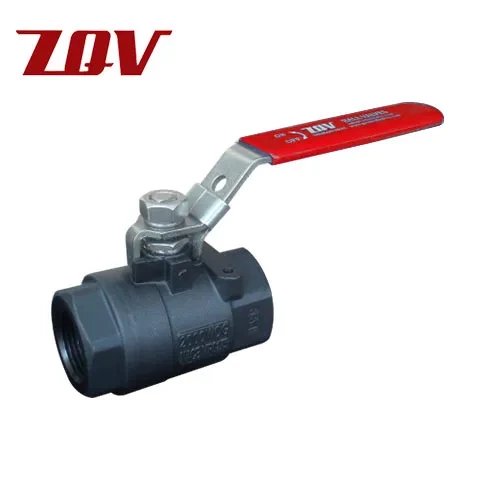

2 piece Threaded Ball valve 3600 PSI Class1500
Size Range
1/4“ to 2”
Body Materials
A351 CF8M / A216 WCB
Temperature Range
'-50℉ to 450℉ (-46℃ to 232℃)
Stem Materials
A182 F316
Maximum Allowable Operating Pressure
3000 PSI (WOG)
Seat Materials
Delrin / Peek
Body Style
Two Piece
Ball Materials
A182 F316
End Connections
Threaded ASME B1.20.1 NPT
Design Standard
ASME B16.34 , MSS SP-110
Ports
Full Port
Testing Standard
MSS-SP72,API 598
Applications
General Service, Air, Water, Oil & Gas
Face to Face
Manufacturers Standard
Description
Product Description
2pc Seal-Welded Threaded Ball valve 2000PSI
- 2-piece Investment casting Body
- Seal-Weld Body
- Adjustable Packing Gland
- Blow-out-proof stem
- Lockable lever Handle
- 150PSI Saturated Steam
- 250PSI Steam Service(Multi-Seal seat)
- Test Standard: API 598/ ASME B16.34
OPTIONAL

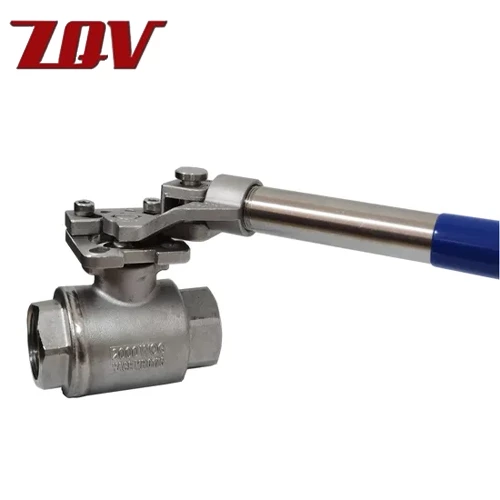

- Spring Return Handle
- Oval Handle
- Nace MR-0175
| Size | 1/4'' to 4'' |
| Port | Full Port |
| Pressure | 2000PSI 138 BAR |
| Body/Cap | ASTM A216 WCB/ ASTM A351 CF8M |
| Ball / Stem | SS Trim SS420/SS304/SS316 |
| Seat | RPTFE / MPTFE |
| Max Temp.: | 232 ° |
| End | ASME B1.20.1(NPT)/DIN 259/DIN2999/BSP/PT |
| Design standard | BS EN ISO 17292 ( BS 5351), ASME B16.34, API 608,BS EN ISO 12516,BS EN 1983 |
| End Connection | Screed/Threaded End to ASME B1.20.1, Socket Weld End to ASME B16.11, Butt Weld End to ASME B16.25 |
| Ispection& Testing Stardard | API 598, BS EN ISO 12266-I(BS 6755 -I) |
| Manufacturing Size Range | 1/2'' 3/4'' 1''1-1/2'' 2'' |
| Pressure Rating of Valve | 1500PSI/2000PSI |
| Option | Reduced Port /Full Port Blow-out-Proof Stem SAE Thread |
