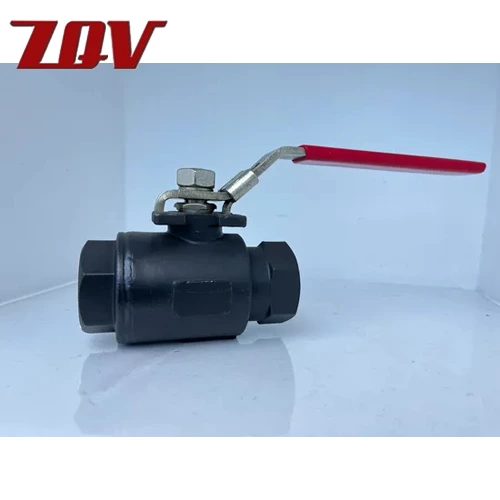

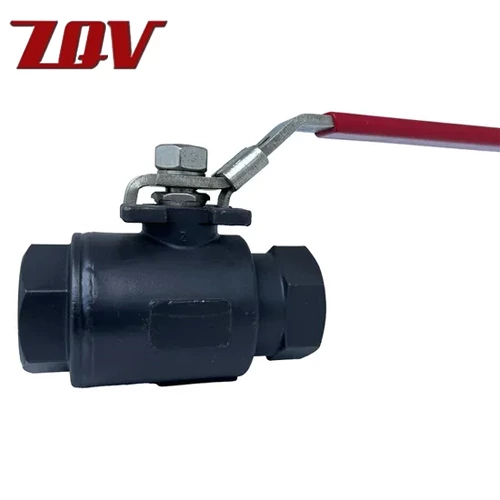

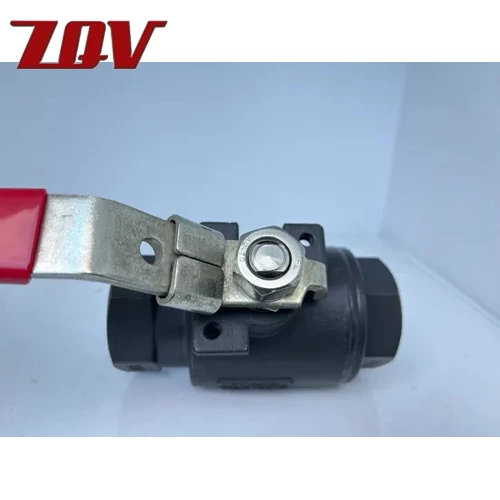

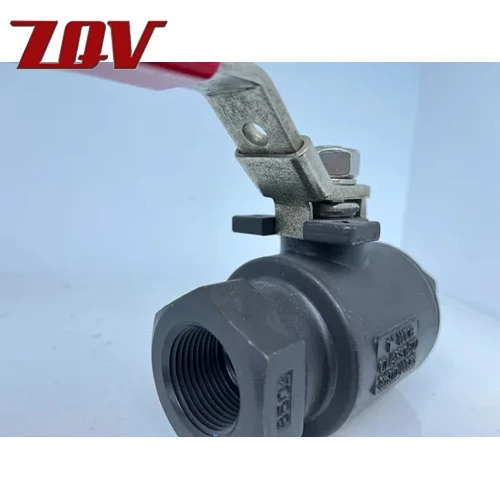

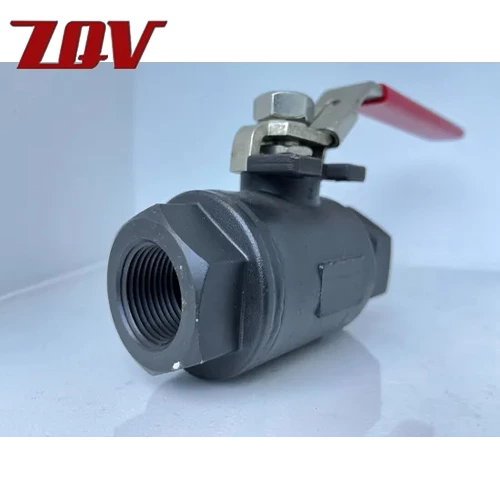

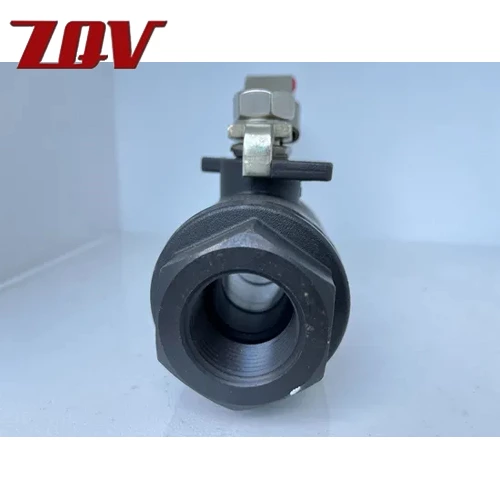

2PC Fire-Safe Class 1500 threaded ball valve
Size Range
1/4“ to 2”
Body Materials
A351 CF8M / A216 WCB
Temperature Range
'-50℉ to 450℉ (-46℃ to 232℃)
Stem Materials
A182 F316
Maximum Allowable Operating Pressure
3000 PSI (WOG)
Seat Materials
Delrin / Peek
Body Style
Two Piece
Ball Materials
A182 F316
End Connections
Threaded ASME B1.20.1 NPT
Design Standard
ASME B16.34 , MSS SP-110
Ports
Full Port
Testing Standard
MSS-SP72,API 598
Applications
General Service, Air, Water, Oil & Gas
Face to Face
Manufacturers Standard
Description
Product Description
| Port: | Full Port |
| Size: | 1/2" to 2" |
| Pressure: | 3600PSI/1500LB |
| Body: | Carbon Steel |
| Seat: | RPTEF/MPTFE |
| Max Temp: | 450ºF 232ºC |
| Ends: | ASME B1.20.1(NPT) / DIN 259 / DIN2999 / ISO228 / BSP / PT |
| Design Standard: | API598/ASME B16.34 |
| Test Standard: | NACE MR-0175(FIRE SAFE) |
| Features: | 2-Piece Investment Casting Body |
| Seal-Weld Body | |
| Adjustable Packing Gland | |
| Blow-out-Proof Stem | |
| Lockable Lever Handle | |
| 150PSI Saturated Steam | |
| 250PSI Steam Service (Multi-Seal Seat) | |
| Spring Return Oval Handle | |
| Optional: | Lockable Lever Handle |
| Spring Return Handle | |
| Oval Handle | |
| Metal Seat | |
| SAE Thread |
| Item | PART | MATERIAL |
| 1 | BODY | A216 WCB |
| 2 | SEAT | DELRIN |
| 3 | BALL | A182 F316 |
| 4 | P-RING | V-ITON |
| 5 | BODY SEAL | GRAHITE |
| 6 | CAP | A216 WCB |
| 7 | STEM | RPTFE |
| 8 | THRUST WASHER | RPTFE |
| 9 | PACKING | SS |
| 10 | GLAND | SS |
| 11 | PIN COVER | A193 B7 |
| 12 | PIN NUT | SS201 |
| 13 | HANDLE | SS |
| 14 | WASHER | SS |
| 15 | NUT | A2-70 |
