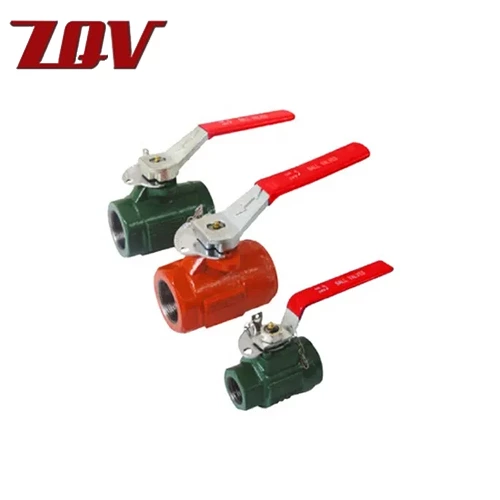

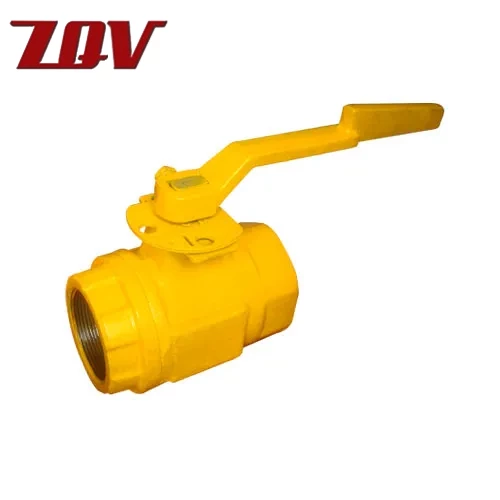

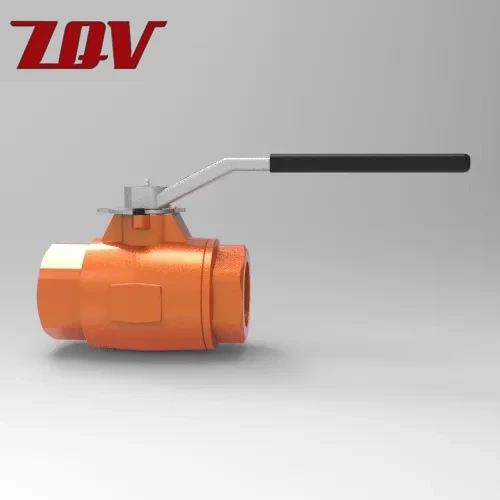

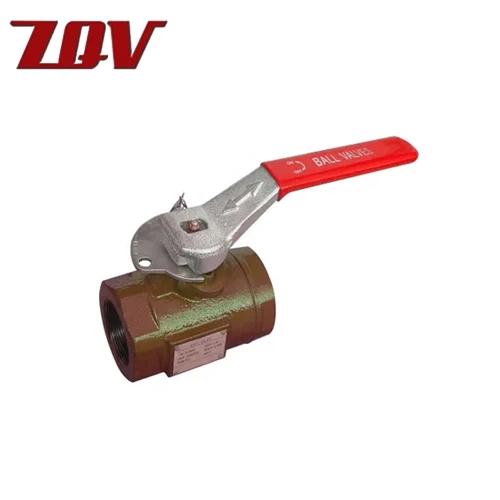

Carbon Steel FNPT Ball Valve 5000WOG
Size Range
1“ to 4”
Body Materials
CS WCB / A105 / 4130
Temperature Range
-50℉ to 450℉ (-46℃ to 232℃)
Stem Materials
400 SERIES STAINLESS STEEL
Maximum Allowable Operating Pressure
3000 PSI (WOG) - 5000 PSI(WOG)
Seat Materials
Delrin / Peek
Body Style
Two Piece
Ball Materials
400 SERIES STAINLESS STEEL
End Connections
Threaded ASME B1.20.1 NPT / API 5B LP
Design Standard
ASME B16.34 , MSS SP-110,API 6D,API 608
Ports
Full Port/ Reduced Port
Testing Standard
MSS-SP72,API 598
Applications
General Service, Air, Water, Oil & Gas
Face to Face
Manufacturers Standard
Description
Product Description
Oilfield Ball valve 2000PSI
A216 WCB oil patch ball valve 2000PSI 3000PSI 5000PSI
Our oilfield floating ball valve is a two-piece design with a ductile iron body or Carbon Steel, include Fig DIBV, CSBV, ABBV,
A2BV, EUECBV . This economical valves includes many of the premium design features . This valve primarily is used in the oilfield
market, typically chosen for the following applications:
* Production wing valves on low-pressure gas wells
* Production flowlines
* Production gathering systems for water, oil, and gas
* Gas blowdown service
* Tank batteries for storage or production
* Frac water tanks
"The Patch", Quality Economical Valves
Built for Extreme Oilfield Service
Fig. CSBV 3000PSI 5000PSI
Oil Patch Ball valves
Specification:
1. Size: 1" 2''3''Full bore; 2",3"4''Reduced bore
2. Inspection and test standards: API 598
3. Pressure: 1000PSI1500PSI2000PSI3000PSI 5000PSI
4.. Working temperature: -28C-120C
5.. Seat Ring: Delrin(3000PSI)/PEEK(5000PSI)
6.. Ball: Stainless Steel 316 / 304
7.. Valve Stem: Steel 316 / 304/ SS410/SS420
8.. Operation: Manual
9.. Suitable Medium: Water, Gas, Oil, et
• Nace MR-01-75-2009 Compliant
• Grease Fitting for Constant Lubrication and Protection Against Corrosion and Moisture
