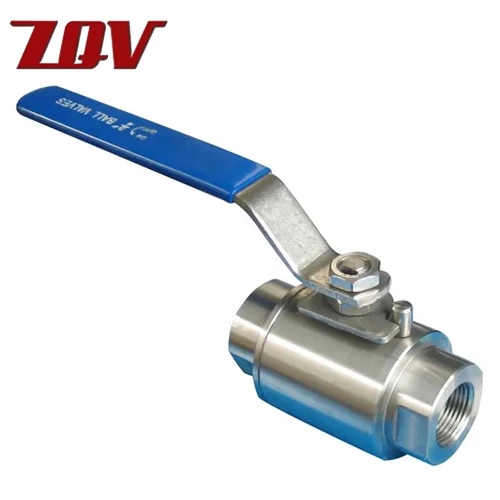

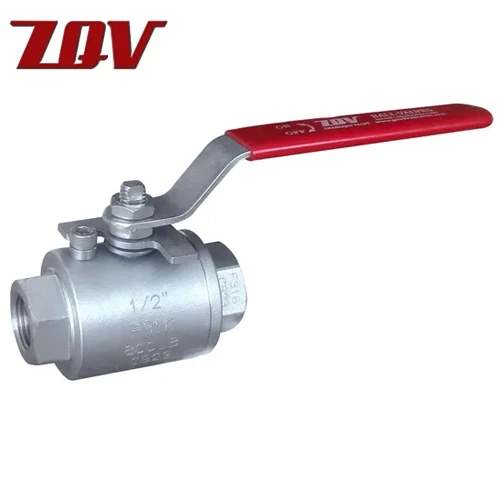

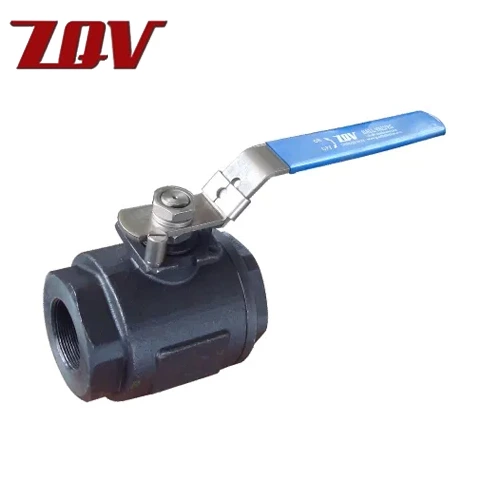

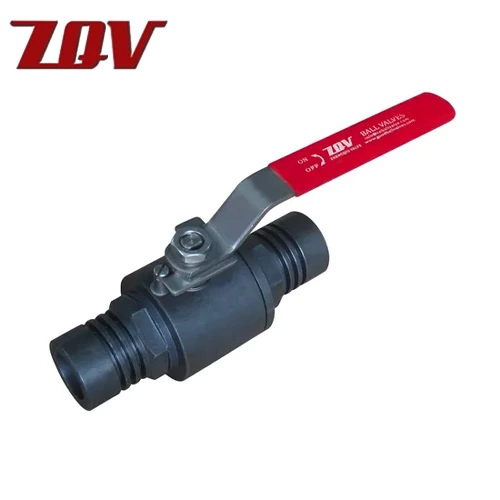

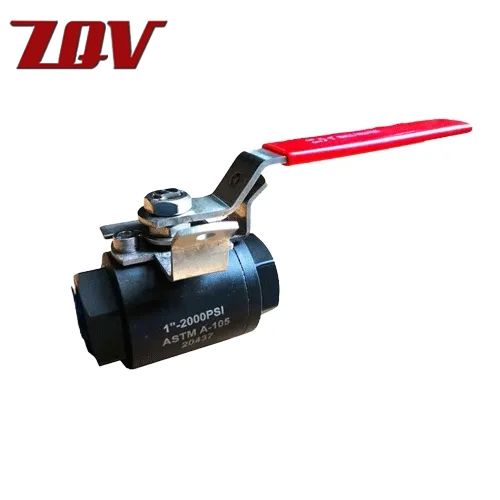

Full Bore Threaded Ball Valve 5000 PSI
Size Range
1/4“ to 4”
Body Materials
ASTM A105 / A182 F316 / A182 F304
Temperature Range
-50℉ to 450℉ (-46℃ to 232℃)
Stem Materials
A182 F316
Maximum Allowable Operating Pressure
2000 PSI (WOG)
Seat Materials
RPTFE
Body Style
Two Piece
Ball Materials
A182 F316
End Connections
Threaded ASME B1.20.1 NPT
Design Standard
ASME B16.34 , API 607,API 608
Ports
Full Port / Reduced Port
Testing Standard
MSS-SP72,API 598
Applications
General Service, Air, Water, Oil & Gas
Face to Face
Manufacturers Standard
Description
Product Description
2-PC Class 800~2500 Forged steel Ball Valve
| ody | ASTM A105- Carbon Steel ASTM A182 F304 / F304L- Stainless Steel ASTM A182 F316 / F316L- Stainless Steel ASTM A182 F11/F22- Alloy Steel |
| Ball | ASTM A 182 F304/F316/F304L/F316L |
| Stem | ASTM A182 F304/F316/F304L/F316L,SS420,17-4PH |
| Ball Seat& BodySeal |
TFM/MYLON 25% Glass Filled (RPTFE), 25% Carbon Filled (CPTFE) Peek /Delrin 304+Graphite |
| Design standard | BS EN ISO 17292 ( BS 5351), ASME B16.34, API 608,BS EN ISO 12516,BS EN 1983 |
| End Connection | Screed/Threaded End to ASME B1.20.1, Socket Weld End to ASME B16.11, Butt Weld End to ASME B16.25 |
| Ispection& Testing Stardard | API 598, BS EN ISO 12266-I(BS 6755 -I) |
| Manufacturing Size Range | 1/2'' (DN8) to 4''(DN100) |
| Pressure Rating of Valve | CLASS 800 CLASS 1500 CLASS 2500 2000PSI 300PSI 5000PSI 6000PSI PN100 PN160 PN250 PN420 |
| Option | Reduced Port /Full Port Blow-out-Proof Stem Anti-static device API 607 Firesafe Approval Lock device Oval Handle Spring return handle Pneumatic actuator SAE Thread |
Features:
-
Body: ASTM A105-Carbon Steel, ASTM A182 F304/F304L-Stainless steel, ASTM A182 F316/F316L Stainless steel, ASTM A182 F11/F22- Alloy steel
-
Ball: ASTM A182 F304/F316/F304L/F316L
-
Stem: ASTM A182 F304/F316/F304L/F316L/ASTM A216 420(SS420)
-
Ball seat/Body Seal: TFM/NYLON, RPTFE, CPTFE, PEEK, DELRIN, Graphite
-
Pressure rate: Class 800 Class 1500 Class 2500, 2000 psi, 3000 PSI, 5000 psi, 6000psi, PN100 PN160 PN250 PN420
-
Anti-blow out Stem
-
Operating tempreature-29ºC+200ºC, LF2 tempreature:-46ºC+200ºC
-
Antistatic device
-
BSPT female OR NPT female
-
Monoblock body bar stock body construction
-
Fire safe according to API 607
-
With lock-device option
-
For A105 Galvanized or Black Oxidize
-
Heavy-duty stop plate
