Class 2500 Seal Welded Fire-Safe Ball Valve
Size Range
1/4“ to 2”
Body Materials
A351 CF8M / A216 WCB
Temperature Range
'-50℉ to 450℉ (-46℃ to 232℃)
Stem Materials
A182 F316
Maximum Allowable Operating Pressure
3000 PSI (WOG)
Seat Materials
Delrin / Peek
Body Style
Two Piece
Ball Materials
A182 F316
End Connections
Threaded ASME B1.20.1 NPT
Design Standard
ASME B16.34 , MSS SP-110
Ports
Full Port
Testing Standard
MSS-SP72,API 598
Applications
General Service, Air, Water, Oil & Gas
Face to Face
Manufacturers Standard
Description
Product Attributes
Model No.: series 6004
Brand: ZQV
Types Of: Ball Valves
Support Customization: Oem
Place Of Origin: China
Application: General
Medium Temperature: Medium Temperature
Power: Manual
Flow Medium: Gas, Water, Oil
Structure: Ball
Body Construction: seal welded body
Max Temp: 450℉ 232℃
Casting: Investment Casting
Lever Handle: Lockable
Fire Safe: API 607
Product Description
ZQV 6004WSW 6004WC Ball Valves 6000PSI,ASME Class 2500, seal-welded, 2-piece ball valves provide superior performance and reliability in a wide range of applications.
Type:Series 6004WC / 6004WSW
●Pressure Rate 6000PSI, Class 2500
●Investment Casting Body
●Body: Carbon Steel WCB, Stainless Steel CF8M. SS316
●Full Port 1/2''-2''
●Blowout Proof Stem
● Adjustable Packing
●316 SS Ball and Stem
●Standard Locking Handle
●ISO 5211 Actuator Mounting Pad
● PEEK Seats Standard
●Basic design complies with ANSI B16.34 & EN 12516-1. NPT threaded ends complies with ANSI B 1.20.1.
● 6000 psi, Sizes 1/4 in. - 1 1/2 in. (8 mm - 40 mm) Full Port
● Fire-Safe Tested and Certified to API 607 5th Edition
● Conforms to NACE MR0175 / ISO 15156 Specifications
● API 641 fugitive emissions certified

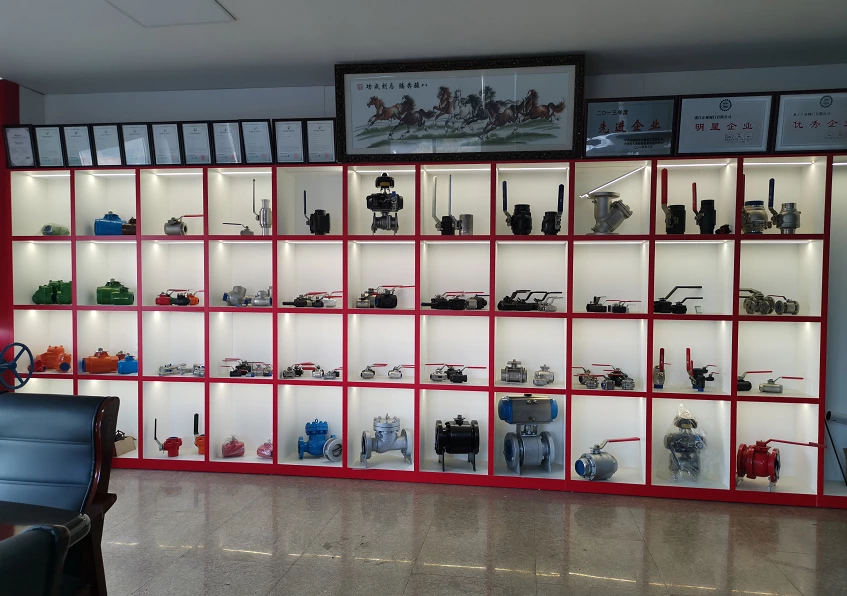

Factory Show
