API 602 Socket Weld Fnpt Globe Valve

Product Attributes

Brand: OEM, ZQV

Types Of: Globe Valves

Support Customization: Oem

Place Of Origin: China

Application: General

Medium Temperature: Medium Temperature

Power: Manual

Flow Medium: Oil, Water, Gas

Structure: Control

Product Description

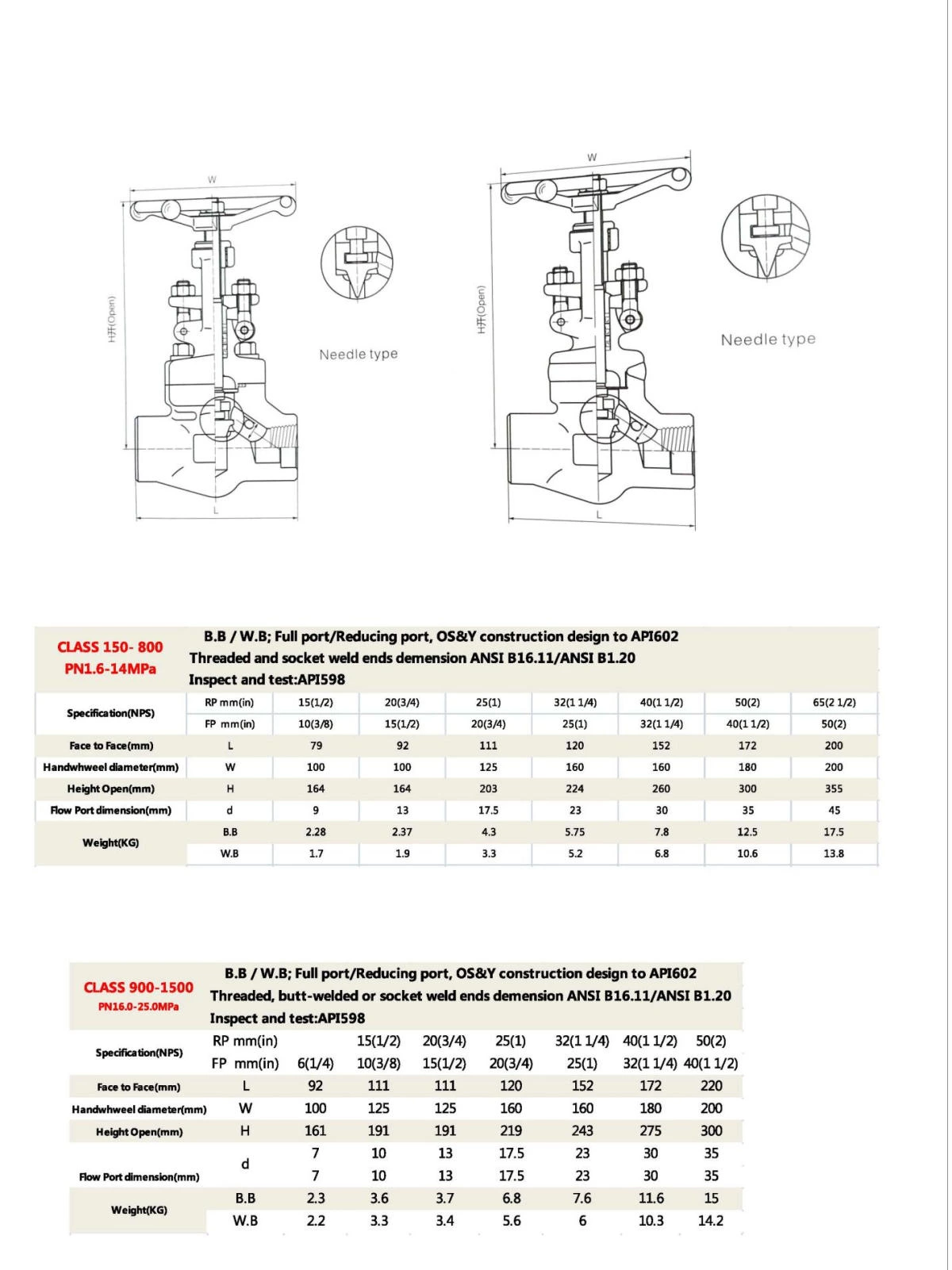

API 602 Forged steel threaded NPT Globe Valve Class rate 800LB, 900lb,1500LB,2500LB, size range from 1/2''-2'', are  a compact but extremely sturdy design for the high pressure service.

GL800 Series

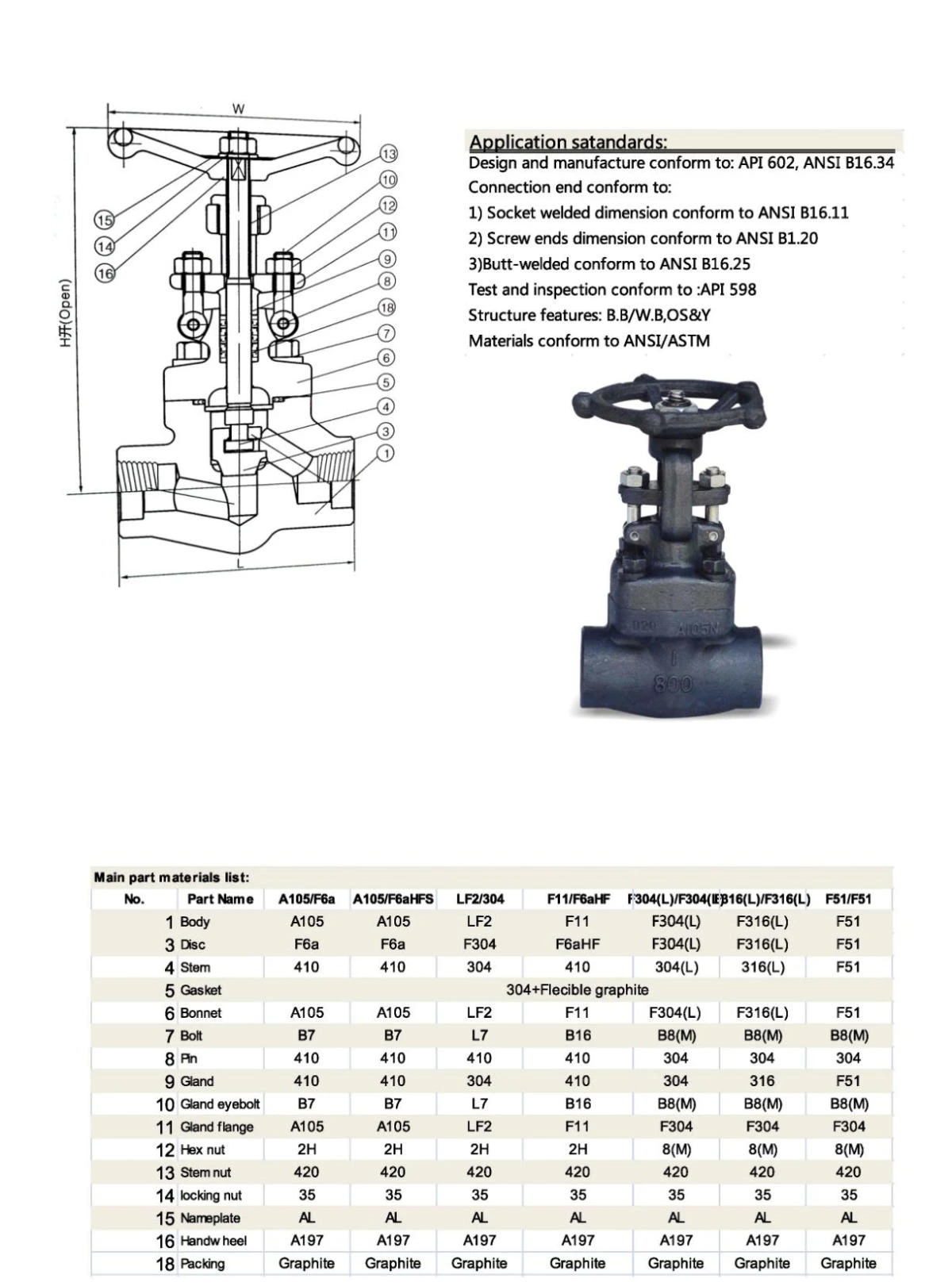

• ASME 16.34, API 602
• Bolted Bonnet, Pressure Sealed Bonnet, Welded Bonnet
• Pressure Class 150 ~ 2500
• NPS ½” ~ 2”
• RF, RTJ, BW, NPT, & SW Ends
• Back Seat Design
• Outside Screw and Yoke (OS& Y)
• Renewable Seat, Welded Seat, Integral SeatAPI 602, ASME B16.34

• Testing acoording to API 598, ASME B16.34
• Marking MSS-SP-25
• Outside Screw and Yoke(OS & Y)
• Rising Stem, Non-rising Handwheel
• Body Bonnet Weld to ASME
• Socket Weld Ends to ASME B16.11
• Screwed Ends (NPT) to ASME B1.20.1
• Butt Welding Ends to ASME B16.25
