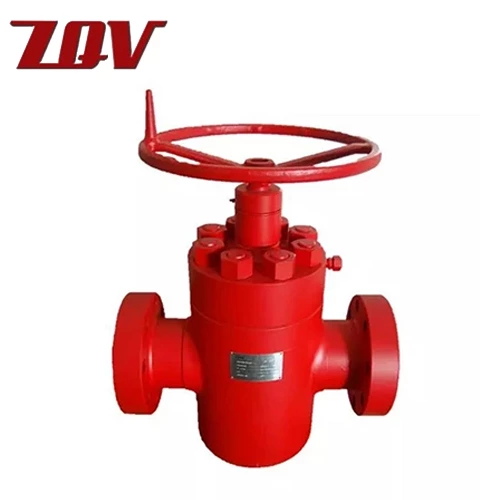

Plate Gate Valve
Size Range
1/4“ to 2”
Body Materials
A351 CF8M / A216 WCB
Temperature Range
'-50℉ to 450℉ (-46℃ to 232℃)
Stem Materials
A182 F316
Maximum Allowable Operating Pressure
3000 PSI (WOG)
Seat Materials
Delrin / Peek
Body Style
Two Piece
Ball Materials
A182 F316
End Connections
Threaded ASME B1.20.1 NPT
Design Standard
ASME B16.34 , MSS SP-110
Ports
Full Port
Testing Standard
MSS-SP72,API 598
Applications
General Service, Air, Water, Oil & Gas
Face to Face
Manufacturers Standard
Description
Design features
» forged steel body / bonnet.
» low operating torque.
» metal to metal body / bonnet sealing.
» metal to metal rear seal that can pressurize the ram at the switch position.
» lubricating nipples added for easy maintenance.
» ensure ram lubrication and ram guide design to protect ram surface.
» manual or designed as hydraulic drive, pneumatic drive for automatic operation.
» simple and reliable structure and low cost.
» flange or threaded connection.
Product range
» pressure range: 2000psi ~ 15000psi
» main material: aa-hh
» applicable temperature: - 60 ~ 121 ℃.
» size range: 1-13 / 16 "~ 7-1 / 16"
» design basis: API 6A
