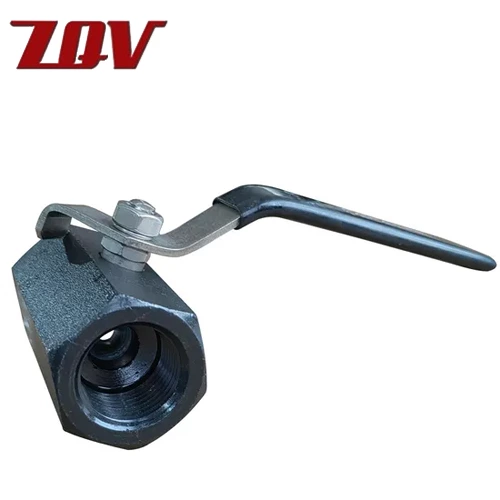

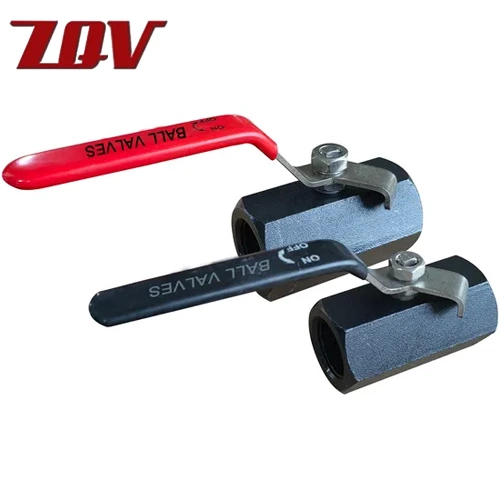

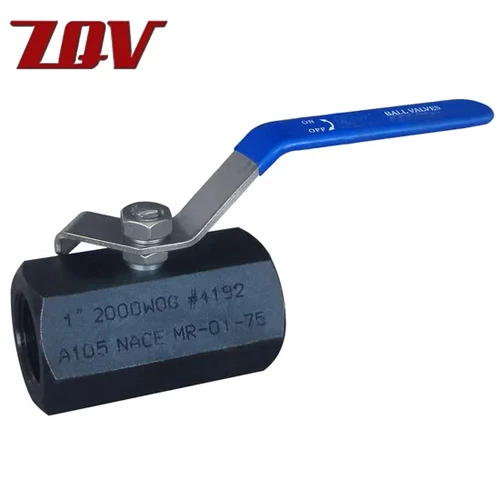

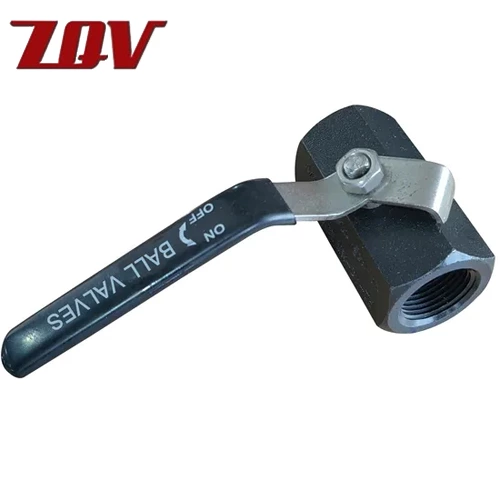

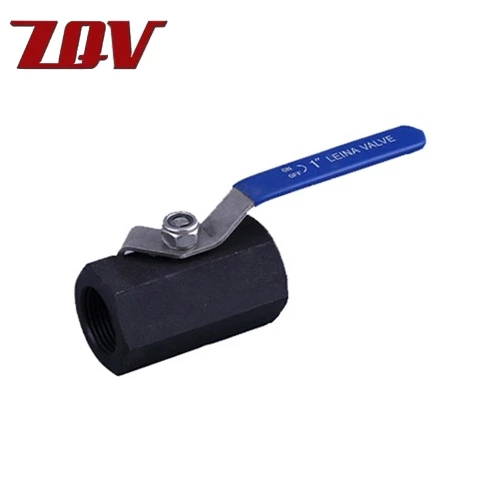

1 PIECE HEXAGON BALL VALVE 2000PSI
Size Range
1/4“ to 2”
Body Materials
ASTM A105
Temperature Range
'-50℉ to 450℉ (-46℃ to 232℃)
Stem Materials
A182 F316
Maximum Allowable Operating Pressure
2000 PSI (WOG)
Seat Materials
RPTFE
Body Style
Two Piece
Ball Materials
A182 F316
End Connections
Threaded ASME B1.20.1 NPT
Design Standard
ASME B16.34 , MSS SP-110
Ports
Reduced Port
Testing Standard
MSS-SP72,API 598
Applications
General Service, Air, Water, Oil & Gas
Face to Face
Manufacturers Standard
Description
Quick Details
- Standard or Nonstandard: Standard
- Structure: Ball
- Pressure: 2000PSI,3000PSI
- Power: Manual
- Material: A105N,F304,F316,Alloy 20#
- Temperature of Media: Normal Temperature
- Media: Oil,Gas,Water
- Port Size: 1/4"-4"
- Place of Origin: Zhejiang, China (Mainland)
- Model Number: 2017C
- Brand Name: ZQV
- Valve Guarantee:: 12months after shipment
- Valve Material:: Carbon Steel and Stainless Steel
- Valve Test: 100% quantity tested before delivery
- Valve price:: Competitive price
- Factory located:: Wenzhou,Zhejiang,China
- Packaging:: Plywood Cases
- Valve performance:: Top quality produced by ZQV
- Port:: SHANGHAI,NINGBO
- Valve Type:: BALL
- Valve Paint color: Black, Silvery or customization
Product Description
| Design & Testing Inte rnational Standard: |
| Valve Design | : ANSI B 16.34 |
| Pressure Testing | : ASME B16.34/ API 598 |
| Face To Face | : ASME B 16.10 |
| Connection ends | :ANSI B1.12.1 |
| Size | : 1/4" to 24" (DN8-DN100) |
| Pressure | :1000PSI,2000PSI,3000PSI,6000PSI |
| Material | :A105N,F304,F316,Alloy 20#, Duplex Stainless Steel 2205 |
