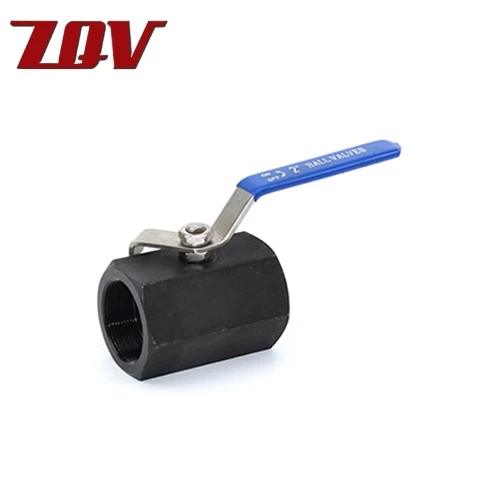

1 PIECE HEXAGON SS BALL VALVE 2000PSI
Size Range
1/4“ to 2”
Body Materials
ASTM A105
Temperature Range
'-50℉ to 450℉ (-46℃ to 232℃)
Stem Materials
A182 F316
Maximum Allowable Operating Pressure
2000 PSI (WOG)
Seat Materials
RPTFE
Body Style
Two Piece
Ball Materials
A182 F316
End Connections
Threaded ASME B1.20.1 NPT
Design Standard
ASME B16.34 , MSS SP-110
Ports
Reduced Port
Testing Standard
MSS-SP72,API 598
Applications
General Service, Air, Water, Oil & Gas
Face to Face
Manufacturers Standard
Description
Structural Features
1 Piece Body, Hexagon Type
Threaded Ends to ANSI B1.20.1(NPT)
Acc to ANSI B16.34, NACE MR-01-75
2000WOG, Reduced Bore
Test API 598
Materials of main parts
| No | Part | Matarial |
| 1 | BODY | ASTM A182 F316 |
| 2 | CAP | SS316 |
| 3 | SEAT | RPTFE |
| 4 | BALL | SS316 |
| 5 | STEM | SS316 |
| 6 | PACKING | PTFE |
| 7 | THRUST WASHER | PTFE |
| 8 | GLAND | SS304 |
| 9 | NUT | SS304 |
| 10 | HANDLE | SS201 |
| 11 | HANDLE COVER | PVC |
| 12 | GASKET | PTFE |
| 13 | SPRING WASHER | SS304 |
Dimensions(in)
| Size | Port | Pressure | d | D | L | H | W | Weight (Lbs) | Torque (in.Lb) |
| 1/4” | RP | 2000PSI | 0.20 | 0.83 | 1.70 | 1.25 | 2.63 | 0.29 | 42 |
| 3/8” | RP | 2000PSI | 0.28 | 0.98 | 1.86 | 1.33 | 2.63 | 0.44 | 42 |
| 1/2” | RP | 2000PSI | 0.36 | 1.18 | 2.46 | 2.19 | 4.65 | 0.71 | 49 |
| 3/4” | RP | 2000PSI | 0.49 | 1.42 | 2.75 | 2.42 | 4.65 | 1.19 | 73 |
| 1” | RP | 2000PSI | 0.63 | 1.81 | 3.38 | 2.57 | 4.72 | 2.09 | 113 |
| 1-1/4” | RP | 2000PSI | 0.79 | 2.17 | 3.69 | 2.90 | 5.75 | 3.09 | 253 |
| 1-1/2” | RP | 2000PSI | 0.96 | 2.40 | 4.00 | 3.10 | 5.75 | 3.75 | 288 |
| 2” | RP | 2000PSI | 1.26 | 2.95 | 4.50 | 3.54 | 6.00 | 6.13 | 391 |
