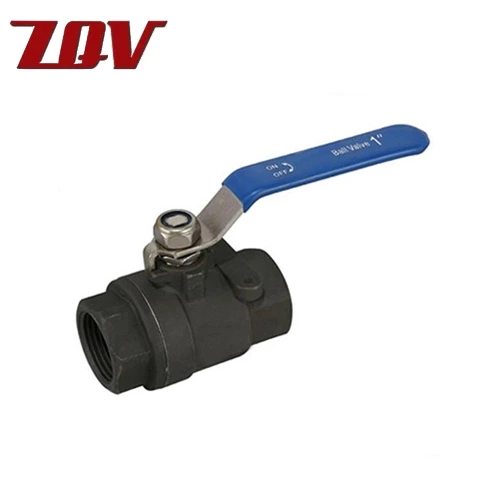

2 PIECE CARBON STEEL BALL VALVE 2000PSI
Size Range
1/4“ to 4”
Body Materials
A351 CF8M / A216 WCB
Temperature Range
'-50℉ to 450℉ (-46℃ to 232℃)
Stem Materials
A182 F316
Maximum Allowable Operating Pressure
2000 PSI (WOG)
Seat Materials
RPTFE
Body Style
Two Piece
Ball Materials
A182 F316
End Connections
Threaded ASME B1.20.1 NPT
Design Standard
ASME B16.34 , MSS SP-110
Ports
Full Port
Testing Standard
MSS-SP72,API 598
Applications
General Service, Air, Water, Oil & Gas
Face to Face
Manufacturers Standard
Description
Structural Features
FULL PORT
W.P: 1/4”~2” 2000 W.O.G
2 PIECE BODY
BLOW OUT PROOF STEM
PTFE/RPTFE SEAL AND PACKING
LOCKING HANDLE
THREADS CONFORM TO ASME B1.20.1(NPT)
SEAL WELDED
NACE MR0175
Materials of main parts
| No | Part | Matarial |
| 1 | BODY | ASTM A216 WCB |
| 2 | BALL | SS316 |
| 3 | BOONET | ASTM A216 WCB |
| 4 | SEAT | RPTFE |
| 5 | THRUST WASHER | RPTFE |
| 6 | PACKING | PTFE |
| 7 | GLAND | SS304 |
| 8 | STEM | SS316 |
| 9 | SPRING WASHER | SS304 |
| 10 | NUT | A2-70 |
| 11 | LOCKING DEVICE | SS201 |
| 12 | HANDLE | SS201 |
Dimensions(in)
| Size | Port | Pressure | d | L | H | W | Weight (Lbs) | Torque (in.Lb) |
| 1/4” | FP | 2000PSI | 0.4528 | 2.4606 | 2.1535 | 3.8976 | 0.75 | 42 |
| 3/8” | FP | 2000PSI | 0.4921 | 2.4606 | 2.1535 | 3.8976 | 0.71 | 42 |
| 1/2” | FP | 2000PSI | 0.5906 | 2.5106 | 2.2677 | 4.1732 | 0.82 | 49 |
| 3/4” | FP | 2000PSI | 0.7874 | 2.9531 | 2.4724 | 4.7638 | 1.21 | 73 |
| 1” | FP | 2000PSI | 0.9843 | 3.5528 | 2.7953 | 5.9055 | 2.03 | 113 |
| 1-1/4 | FP | 2000PSI | 1.2598 | 4.0244 | 3.0827 | 5.9055 | 3.02 | 253 |
| 1-1/2 | FP | 2000PSI | 1.4961 | 4.5571 | 3.5827 | 6.4961 | 4.78 | 288 |
| 2” | FP | 2000PSI | 1.9291 | 5.3150 | 3.9252 | 7.0866 | 8.02 | 391 |
