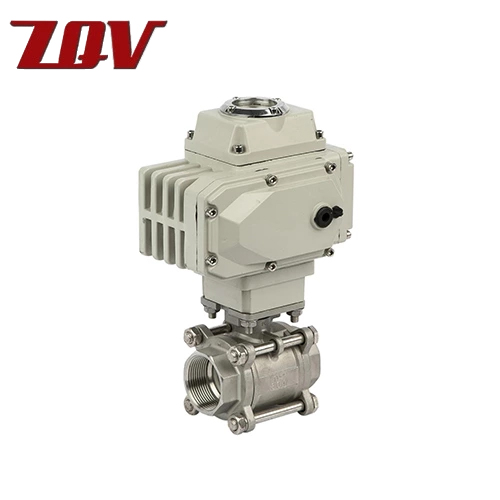

Electric Threaded Ball Valve
Size Range
1/4" to 4"
Body Materials
A351 CF8M / A216 WCB
Temperature Range
'-50℉ to 450℉ (-46℃ to 232℃)
Stem Materials
SS316 / SS304
Maximum Allowable Operating Pressure
1000 PSI (WOG)
Seat Materials
PTFE / RPTFE
Body Style
Three Piece
Ball Materials
SS316 / SS304
End Connections
NPT , BSP,BSPT,ISO7-1
Design Standard
ASME B16.34 , MSS SP-110
Ports
Full Port / Reduced Port
Testing Standard
MSS-SP72,API 598
Applications
General Service, Air, Water, Oil & Gas
Face to Face
Manufacturers Standard
Description
Valve Specification
Body material: Stainless steel
Seal material: PTFE
End connection: Thread
Structure: Floating ball, 3-Piece
Nominal diameter: DN10–DN100 mm
Nominal pressure: PN16 bar
Operation: Electric actuator (on/off or modulating)
Actuator Specification
Operation: Compact Electric actuator
Type: On/off
Torque range: 7 - 2000N.m
Rotary: 0 - 90°
Ambient temperature: -30°C ~ +60°C
Working pressure: 0 - 4.0MPa
Speed time/90°: 7 - 100S
Number of wires: 2 - 7
Body material: Aluminum alloy
Protection class: IP67
Power supply: 24VDC, 110VAC, 220VAC, 380VAC; 50/60Hz
Control signal (only for modulating type): 4-20mA or 0-10V DC
Color available: Red, blue, green, yellow
Technical data
DN(mm): 10–100
PN(MPa): 1.6, 2.5, 4.0, 6.4
Connection: Internal thread
Valve body & cover material: WCB, CF8(304), CF8M(316)
Ball & stem material: 2Cr13, 0Cr19Ni9, 0Cr17Ni12Mo2
Seal & packing material: Enhanced PTFE, PPL
Applicable medium: Water, Steam, Oil, Corrosive medium, as nitric acid, Corrosive medium, as acetic acid etc
Temperature: -29°C ~ +180°C(Enhanced PTFE); -29°C ~ +300°C(PPL)
