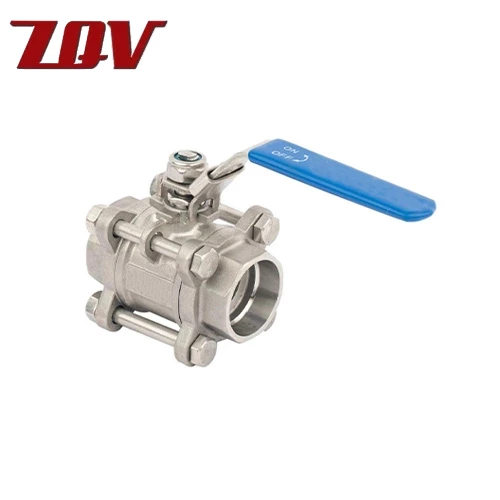

Three Piece Ball Valve
Size Range
1/4" to 4"
Body Materials
A351 CF8M / A216 WCB
Temperature Range
'-50℉ to 450℉ (-46℃ to 232℃)
Stem Materials
SS316
Maximum Allowable Operating Pressure
1000 PSI (WOG)
Seat Materials
PTFE / RPTFE
Body Style
Three Piece
Ball Materials
SS316
End Connections
NPT , BSP,BSPT,ISO7-1
Design Standard
ASME B16.34 , MSS SP-110
Ports
Full Port
Testing Standard
MSS-SP72,API 598
Applications
General Service, Air, Water, Oil & Gas
Face to Face
Manufacturers Standard
Description
Technical Specification
Product name: Stainless Steel Floating Ball Valve
Size: 1/2" -2" (DN15-DN50)
Material: SS201, SS304, SS316(CF8, CF8M)
Pressure: 1000psi, PN16
Suitable medium: water, oil, air and some corrosive liquid etc(WOG)
Temperature Range: -20-250 degree C
Connection: F/F threaded
Type of thread: NPT, BSPT, BSP, PT, DIN2999 ETC
Sealing: PTFE, RPTFE, PPL ETC
Certification: CE, ISO
Gurantee Period: 12 monthes
Type of Port: full port
Casting: Investment
Capacity to produce: 100, 000.00 PCS/week
Terms of payment: 30% TT deposit, the balance is paid before shipping the goods
Delivery time: 30-45 days after received the deposit
Package detail: inner CTN, ourside ply-wooden case
Locking: With or without
