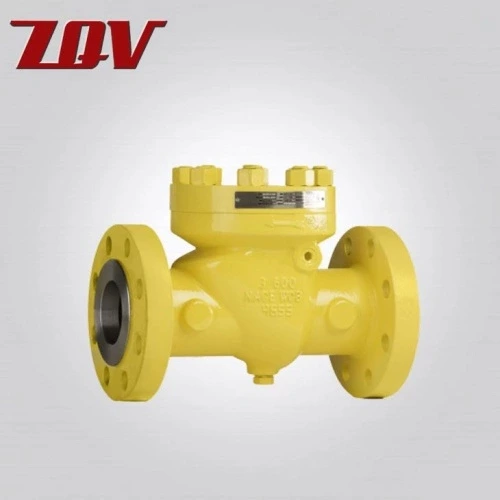

API6D 90-Degree Horizontal Disc Check Valve 150LB
Size Range
1/2"-24"
Materials Grades
WCB,LCC,LCB,CF8M,2205,Special Materials
Pressure Range
Class 150/300/600/900/1500
Trim Materials
TRIM 1,5,8,12,16 & Special Materials
Design Standard
API 594,API 6D,API 602,GOST 3327,BS 1868,BS EN 13709
Testing Standard
API 598,DIN 3230,EN 12266-1,GOST 9544,BS 6755-1,BS EN 12266-1,BS 5146
End Connections
Raised Face, RTJ, Threaded, Socket Weld, Threaded X Socket Weld
Face to Face
ASME B16.10,EN 558-1,GOST 9544,BS EN 558-1,DIN 3202
Options
NACE Compliant
Description
Product Attributes
Brand: OEM
Types Of: Metal Check Valves
Support Customization: Oem
Place Of Origin: China
Application: General
Medium Temperature: Medium Temperature
Power: Manual
Flow Medium: Oil, Water, Gas
Structure: Check
Product Description
API 6D Swing 90-Degree Horizontal Disc Check valves Full Bore 150LB
6DCV Series
Features
Full Opening Valve –;ANSI and API-6A Flanges, Bolted Bonnet with Tap
Specification
-
Design API 6D &B16.34
-
Face to Face API 6D&B16.10
-
End Flange ASME B16.5
-
Test API 6D
-
Pressure and Temp Rank ASME B16.34
-
Material Nace MR 0175
