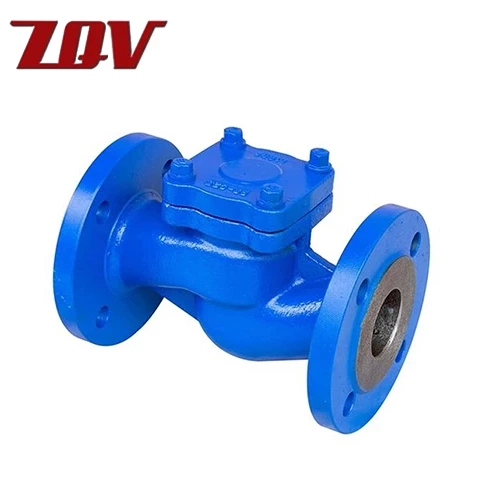

DIN Lift Check Valve
Size Range
1/2"-24"
Materials Grades
WCB,LCC,LCB,CF8M,2205,Special Materials
Pressure Range
Class 150/300/600/900/1500
Trim Materials
TRIM 1,5,8,12,16 & Special Materials
Design Standard
API 594,API 6D,API 602,GOST 3327,BS 1868,BS EN 13709
Testing Standard
API 598,DIN 3230,EN 12266-1,GOST 9544,BS 6755-1,BS EN 12266-1,BS 5146
End Connections
Raised Face, RTJ, Threaded, Socket Weld, Threaded X Socket Weld
Face to Face
ASME B16.10,EN 558-1,GOST 9544,BS EN 558-1,DIN 3202
Options
NACE Compliant
Description
Technical Specification
Normal Size Range: DN15-DN300
Normal Pressure Rating: PN10~PN40
Material: WCB,LCB,WC6,CF8,CF8M,CF3,CF3M
Temperature Range: -29°C~425°C
Standards compliance
Design and Manufacture: DIN3356
Inspection and Test: ISO 5208,EN12266
Flanged ends dimension: DIN2543 ,DIN2544,DIN2545
Butt-welded ends dimension: EN12627
Face to face and end to end: DIN3202,EN558-1,ISO5752
Pressure-temperature ratings: DIN2401
Test & Inspection: DIN3230
