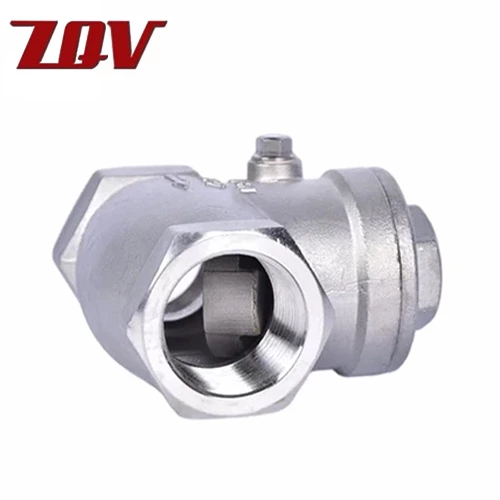

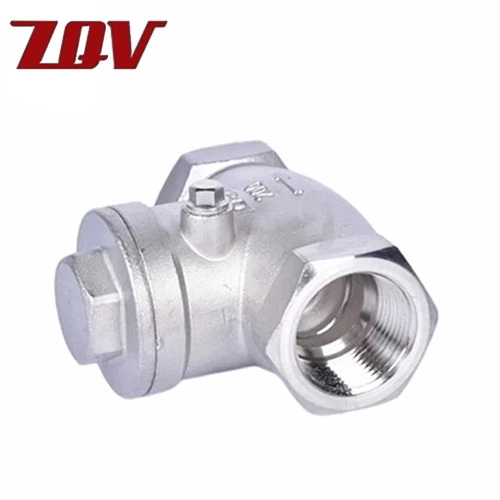

Investment Casting Check Valve
Size Range
1/4“ to 2”
Body Materials
A351 CF8M / A216 WCB
Temperature Range
'-50℉ to 450℉ (-46℃ to 232℃)
Stem Materials
A182 F316
Maximum Allowable Operating Pressure
3000 PSI (WOG)
Seat Materials
Delrin / Peek
Body Style
Two Piece
Ball Materials
A182 F316
End Connections
Threaded ASME B1.20.1 NPT
Design Standard
ASME B16.34 , MSS SP-110
Ports
Full Port
Testing Standard
MSS-SP72,API 598
Applications
General Service, Air, Water, Oil & Gas
Face to Face
Manufacturers Standard
Description
Technical Specification
Normal Size Range: 1/2"-4"
Normal Pressure Rating: 200PSI/PN16
Material: WCB, CF8,CF8M,CF3,CF3M
Temperature Range: -29°C~425°C
Threaded: BSPT, BSP(BS21), NPT(B1.20.1), DIN2999/259
Inspection testing:API598
Investment casting body / bonnet
Screwed cap, swing type disc, integral seat
