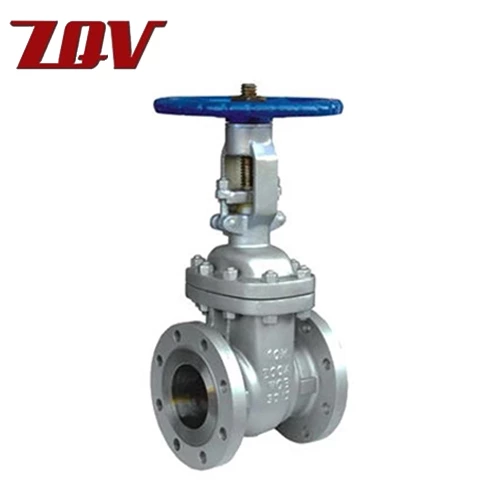

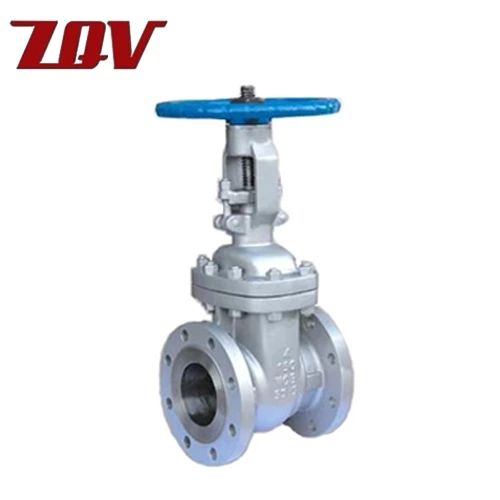

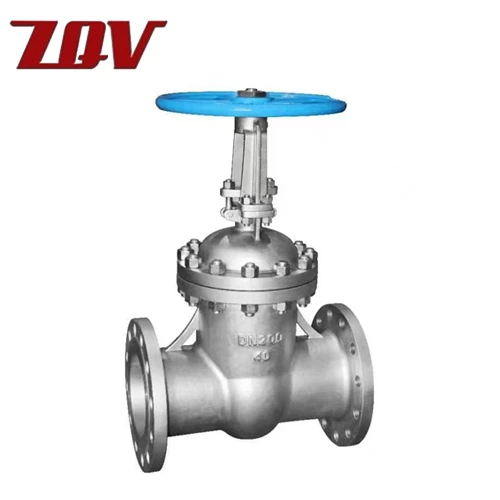

Cast steel Gate Valve
Size Range
1/4“ to 2”
Body Materials
A351 CF8M / A216 WCB
Temperature Range
'-50℉ to 450℉ (-46℃ to 232℃)
Stem Materials
A182 F316
Maximum Allowable Operating Pressure
3000 PSI (WOG)
Seat Materials
Delrin / Peek
Body Style
Two Piece
Ball Materials
A182 F316
End Connections
Threaded ASME B1.20.1 NPT
Design Standard
ASME B16.34 , MSS SP-110
Ports
Full Port
Testing Standard
MSS-SP72,API 598
Applications
General Service, Air, Water, Oil & Gas
Face to Face
Manufacturers Standard
Description
Technical Specification
Normal Size Range: 2"-24"
Normal Pressure Rating: PN10~PN420, CLASS150~2500
Material: WCB,LCB,WC6,CF8,CF8M,CF3,CF3M
Temperature Range: -29°C~425°C
Standards compliance
Design and Manufacture: ANSI B16.34, API600, API6D, API603, BS1414
Face to face(end to end): ANSI B16.10, API6D
Flanged connection: 2"~24" to ANSI B16.5, 22",26"~36" to MSS-SP-44 or to API605 on Request
Test and inspection: API598, API6D
Butt welded end: ANSI B16.5
A. Anti-friction ball thrust bearing:Reduces friction between mating parts to ensure smooth operation
B. Grub screw:Secures yoke nut in the bonnet
C. Grease nipple:Supplies lubricant to the mating parts
