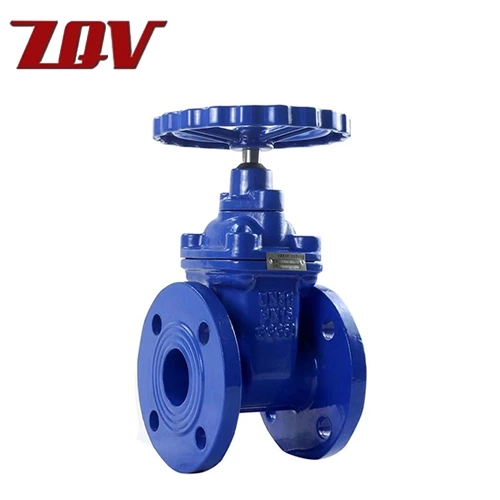

DIN F5 Rising Stem Gate Valve
Size Range
1/2"-24"
Materials Grades
WCB, A105N, LCC, LF2, CF8M, 316, 316L, A20, Hastelloy C, Other materials
Pressure Range
Class 150/300/600/900/1500
Trim Materials
TRIM 1,5,8,12,16 & Special Materials
Design Standard
API 600,API 603,API 602,DIN 3352,EN 1984,GOST 3325,BS 1414
Testing Standard
API 598,DIN 3230,EN 12266-1,GOST 9544,BS 6755-1,BS EN 12266-1,BS 5146
End Connections
Raised Face, RTJ, Threaded, Socket Weld, Threaded X Socket Weld
Face to Face
ASME B16.10,EN 558-1,GOST 9544,BS EN 558-1,DIN 3202
Options
NACE, Bevel Gears, Actuation Ready Mounting Pads, Thermal Relief DTR Systems, Double Lead Stem for Quick Run Time
Features
OS&Y, Rising Stem, Flexible Wedge, olted Bonnet, Packing & Gasket (Low Fugitive Emission)
Description
Technical Specification
Normal Size Range: DN50-DN600
Normal Pressure Rating: PN10~PN40
Material: WCB,LCB,WC6,CF8,CF8M,CF3,CF3M
Temperature Range: -29~425Degree C
Standards compliance
Design and Manufacture: DIN3352
Inspection and Test: ISO 5208,EN12266
Flanged ends dimension: EN 1092-1,DIN2544,DIN2545,DIN2546
Butt-welded ends dimension: EN12627
Face to face and end to end: DIN3202,EN558-1,ISO5752
Pressure-temperature ratings: DIN2401
Test & Inspection: DIN3230
