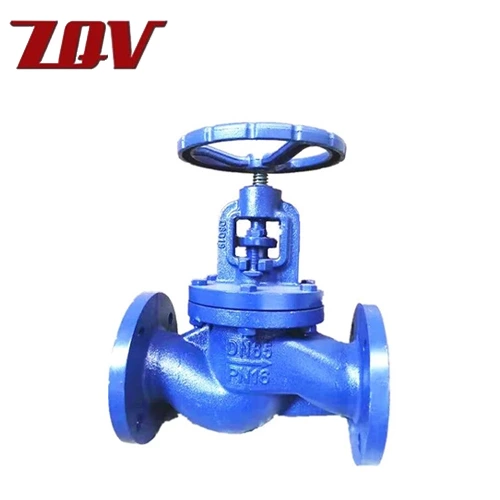

Cast Iron Globe Valve
Size Range
1/2"-24"
Materials Grades
WCB, A105N, LCC, LF2, CF8M, 316, 316L, A20, Hastelloy C, Other materials
Pressure Range
Class 150/300/600/900/1500
Trim Materials
TRIM 1,5,8,12,16 & Special Materials
Design Standard
BS 1873 ,DIN EN 13709,GOST 3326,API 623,API 603,API 602
Testing Standard
API 598,DIN 3230,EN 12266-1,GOST 9544,BS 6755-1,BS EN 12266-1,BS 5146
End Connections
Raised Face, RTJ, Threaded, Socket Weld, Threaded X Socket Weld
Face to Face
ASME B16.10,EN 558-1,GOST 9544,BS EN 558-1,DIN 3202
Options
NACE Compliant
Description
Product Details
DIN 3356 GJL 250 gland packing globe valve/ stop valve pn16
DIN cast iron/ductile iron GG25/GGG40, straight through with flanges, globe valve pn16
DIN 3356 pn16 cast iron/ductile iron globe valves manufacturer in China
DIN gg25 cast iron globe valves/stop valves pn16
DIN CE certified cast iron globe valve flanged type PN16
Specification:
Model: J41H-16
Design: DIN3356/EN13789
Face-to-face: DIN3202-F1/EN558
Flange: EN1092 PN16
Inspection: EN12266-1
Pressure rating: PN16
Size range(mm): DN15~DN300
Body/Bonnet: Cast iron/Ductile iron GG25/GGG40/GGG50/GJL250/JL1040
Stem: Stainless steel X20Cr13
Seal ring: Stainless steel X20Cr13/304
Dimension: Contact us for specific drawing.
