Full Port Horizontal Swing Check Valve 300LB
Size Range
1/4“ to 2”
Body Materials
A351 CF8M / A216 WCB
Temperature Range
'-50℉ to 450℉ (-46℃ to 232℃)
Stem Materials
A182 F316
Maximum Allowable Operating Pressure
3000 PSI (WOG)
Seat Materials
Delrin / Peek
Body Style
Two Piece
Ball Materials
A182 F316
End Connections
Threaded ASME B1.20.1 NPT
Design Standard
ASME B16.34 , MSS SP-110
Ports
Full Port
Testing Standard
MSS-SP72,API 598
Applications
General Service, Air, Water, Oil & Gas
Face to Face
Manufacturers Standard
Description
Product Attributes
Brand: OEM, ZQV
Types Of: Metal Check Valves
Support Customization: Oem
Place Of Origin: China
Application: General
Medium Temperature: Medium Temperature
Power: Manual
Flow Medium: Oil, Water, Gas
Structure: Check
Product Description
API 6D Swing 90-Degree Horizontal Disc Check valves Full Bore 300LB
6DCV Series
Features
Full Opening Valve –ANSI and API-6A Flanges, Bolted Bonnet with Tap
Specification
-
Design API 6D &B16.34
-
Face to Face API 6D&B16.10
-
End Flange ASME B16.5
-
Test API 6D
-
Pressure and Temp Rank ASME B16.34
-
Material Nace MR 0175

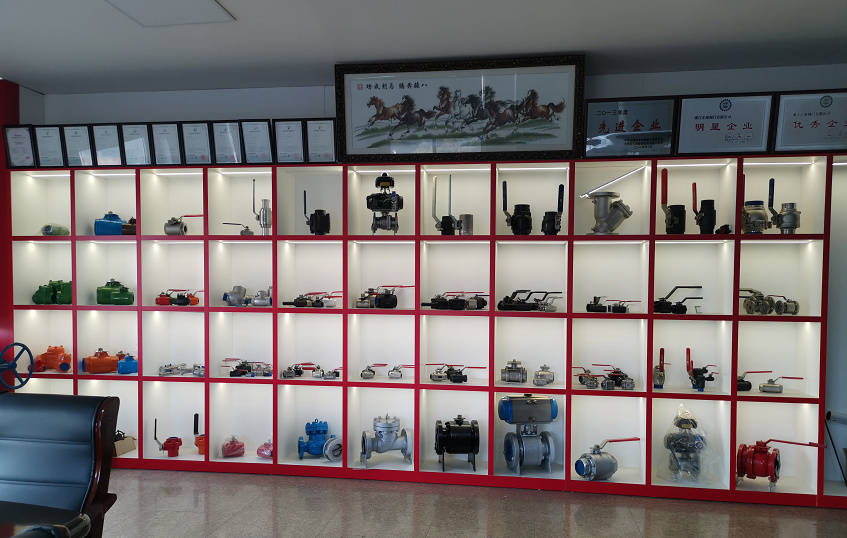

Factory Show
