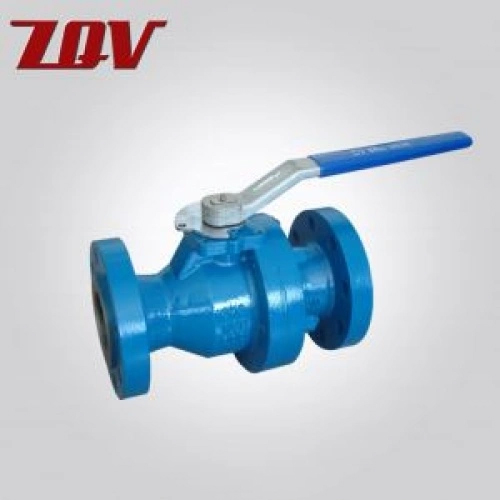

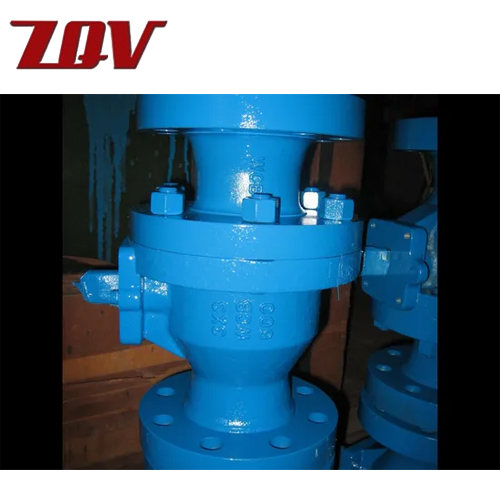

2 piece Flanged Full Port Floating Ball Valve
Size Range
1/2“ to 8”
Body Materials
CS and SS
Temperature Range
'-50℉ to 450℉ (-46℃ to 232℃)
Stem Materials
A182 F316 / A182 F304
Maximum Allowable Operating Pressure
CLASS150 TO CLASS2500
Seat Materials
RPTFE / DEVLON / Peek
Body Style
Two Piece
Ball Materials
A182 F316 / A182 F304
End Connections
Threaded ASME B1.20.1 NPT
Design Standard
ASME B16.34 , ASME B16.5,API 6D
Ports
Full Port
Testing Standard
MSS-SP72,API 598,API 6D
Applications
General Service, Air, Water, Oil & Gas
Face to Face
Manufacturers Standard
Description
Port: Full Port
Size: 1" to 6"
Pressure: 150LB 300LB 600LB
Body: Carton Steel /Stainless Steel
SEAT: RPTEF/TFM1600/NYLON/DEVLON
Max Temp: 450ºF 232ºC
Ends: ASME B16.5-RF
ASME B16.5-TRJ
AS 2129-Table E/Table F
Din2633- RF
Features:
2-Piece Investment Casting Body
ISO 5211 Mounting Pad
Adjustable Packing Gland
Blow-out-Proof Stem
Lockable Lever & Spring Return Handle
Anti-Static Device
Pneumatic actuator
Test Standard: API 598/API 607/NACE MR-0175
Design Standard: ASME B16.34&ASME B16.10
| Item | PART | MATERIAL |
| 1 | Bonnet | WCB/CF8M |
| 2 | Nuts | ASTM A194 2H/8 |
| 3 | Bolts | ASTM A193 B7 |
| 4 | Gasket | HNBE V-iton |
| 5 | Ball | ASTM A182 F316 |
| 6 | Stem | ASTM A182 F316 |
| 7 | Seat | DELRIN,RTFE,TFM |
| 8 | Body | WCB/CF8M |
| 9 | Thrust Washer | T-EFLON |
| 10 | Stem Seal | O Ring |
| 11 | Packing | PTFE |
| 12 | Stem Seal | O Ring |
| 13 | Lube Fitting | CS |
| 14 | Retainer Ring | Spring Steel |
| 15 | Stop Plate | CS |
| 16 | Handle | DI |
| 17 | Stop Pin | Spring Steel |

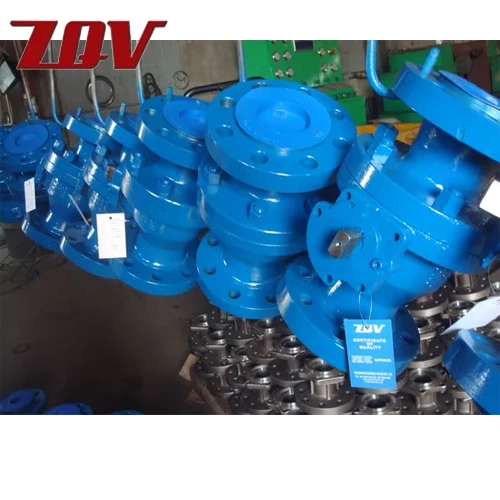

Factory Show
