Forged Steel Flanged Swing Check Valves
Size Range
1/2"-24"
Materials Grades
WCB,LCC,LCB,CF8M,2205,Special Materials
Pressure Range
Class 150/300/600/900/1500
Trim Materials
TRIM 1,5,8,12,16 & Special Materials
Design Standard
API 594,API 6D,API 602,GOST 3327,BS 1868,BS EN 13709
Testing Standard
API 598,DIN 3230,EN 12266-1,GOST 9544,BS 6755-1,BS EN 12266-1,BS 5146
End Connections
Raised Face, RTJ, Threaded, Socket Weld, Threaded X Socket Weld
Face to Face
ASME B16.10,EN 558-1,GOST 9544,BS EN 558-1,DIN 3202
Options
NACE Compliant
Description
Product Attributes
Brand: OEM,
Types Of: Metal Check Valves
Support Customization: Oem
Place Of Origin: China
Application: General
Medium Temperature: Normal Temperature
Power: Manual
Flow Medium: Oil, Water, Gas
Structure: Check
Product Description

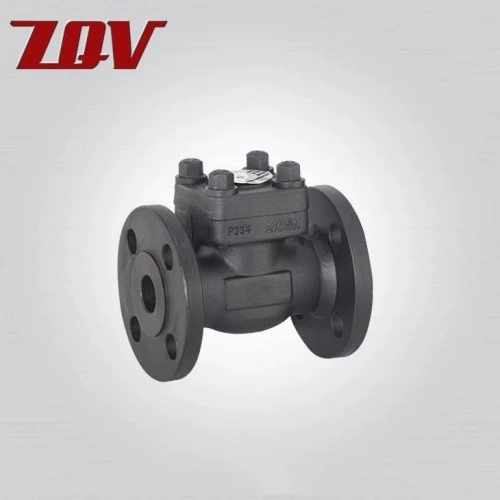

Forged Steel Flanged Swing Check Valves 150LB 300LB 600LB
FCVW
Features
-
Intergral or Welded Flanges
-
Two piece self aligning packing gland
-
Captured Graphite Spiral wound gasket
-
Integral backseat
-
Flange Dimensions ANSI B16.5
-
NACE MR-01-75
Options
-
Alternate Trims
-
Alternate Body Materials
-
Welded Seats
Standards
-
API-602
-
BS 5352
-
ANSI B16.34
-
API-598
-
MSS SP-25
150 LB
Dimensions and Weights inches/lbs (millimeters/kgs)
| NPS | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 |
| L | 4-1/4 (108) | 4-1/2 (117) | 5 (127) | 5-1/2 (140) | 6-1/2 (165) | 8 (203) |
| H | 2-1/2 (62) | 2-1/2 (62) | 3 (78) | 3-1/4 (82) | 4 (102) | 4-3/4 (120) |
| Weight | 6.2 (2.8) | 7.7 (3.5) | 9.9 (4.5) | 18.5 (8.4) | 19.8 (9) | 27.7 (12.6) |
300 LB
Dimensions and Weights inches/lbs (millimeters/kgs)
| NPS | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 |
| L | 6 (152) | 7 (178) | 8-1/2 (216) | 9 (229) | 9-1/2 (241) | 10-1/2 (267) |
| H | 2-1/2 (62) | 2-1/2 (62) | 3 (78) | 3-1/4 (82) | 4 (102) | 4-3/4 (120) |
| Weight | 5.9 (2.7) | 8.1 (3.7) | 11.6 (5.3) | 21.1 (9.6) | 22.4 (10.2) | 30.2 (13.7) |
600 LB
Dimensions and Weights inches/lbs (millimeters/kgs)
| NPS | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 |
| L | 6-1/2 (165) | 7-1/2 (190) | 8-1/2 (216) | 9 (229) | 9-1/2 (241) | 10-1/2 (292) |
| H | 2-1/2 (62) | 2-1/2 (62) | 3 (78) | 3-1/4 (82) | 4 (102) | 4-3/4 (120) |
| Weight | 6.6 (3) | 8.8 (4) | 13.0 (5.9) | 20.9 (9.5) | 22.0 (10) | 34.3 (15.6) |
