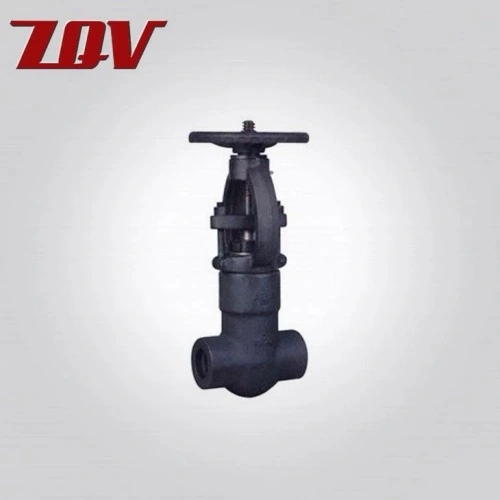

Pressure Sealing Screwed Gate Valve
Size Range
1/2"-24"
Materials Grades
WCB, A105N, LCC, LF2, CF8M, 316, 316L, A20, Hastelloy C, Other materials
Pressure Range
Class 150/300/600/900/1500
Trim Materials
TRIM 1,5,8,12,16 & Special Materials
Design Standard
API 600,API 603,API 602,DIN 3352,EN 1984,GOST 3325,BS 1414
Testing Standard
API 598,DIN 3230,EN 12266-1,GOST 9544,BS 6755-1,BS EN 12266-1,BS 5146
End Connections
Raised Face, RTJ, Threaded, Socket Weld, Threaded X Socket Weld
Face to Face
ASME B16.10,EN 558-1,GOST 9544,BS EN 558-1,DIN 3202
Options
NACE, Bevel Gears, Actuation Ready Mounting Pads, Thermal Relief DTR Systems, Double Lead Stem for Quick Run Time
Features
OS&Y, Rising Stem, Flexible Wedge, olted Bonnet, Packing & Gasket (Low Fugitive Emission)
Description
Product Attributes
Model No.: PSGV
Brand: OEM
Types Of: Gate Valves
Support Customization: Oem
Place Of Origin: China
Application: General
Medium Temperature: Normal Temperature
Power: Manual
Flow Medium: Oil, Water, Gas
Structure: Gate
Bonnet Construction: threaded and pressure seal bonnet
Connection End: SW, BW, Threaded NPT
Product Description

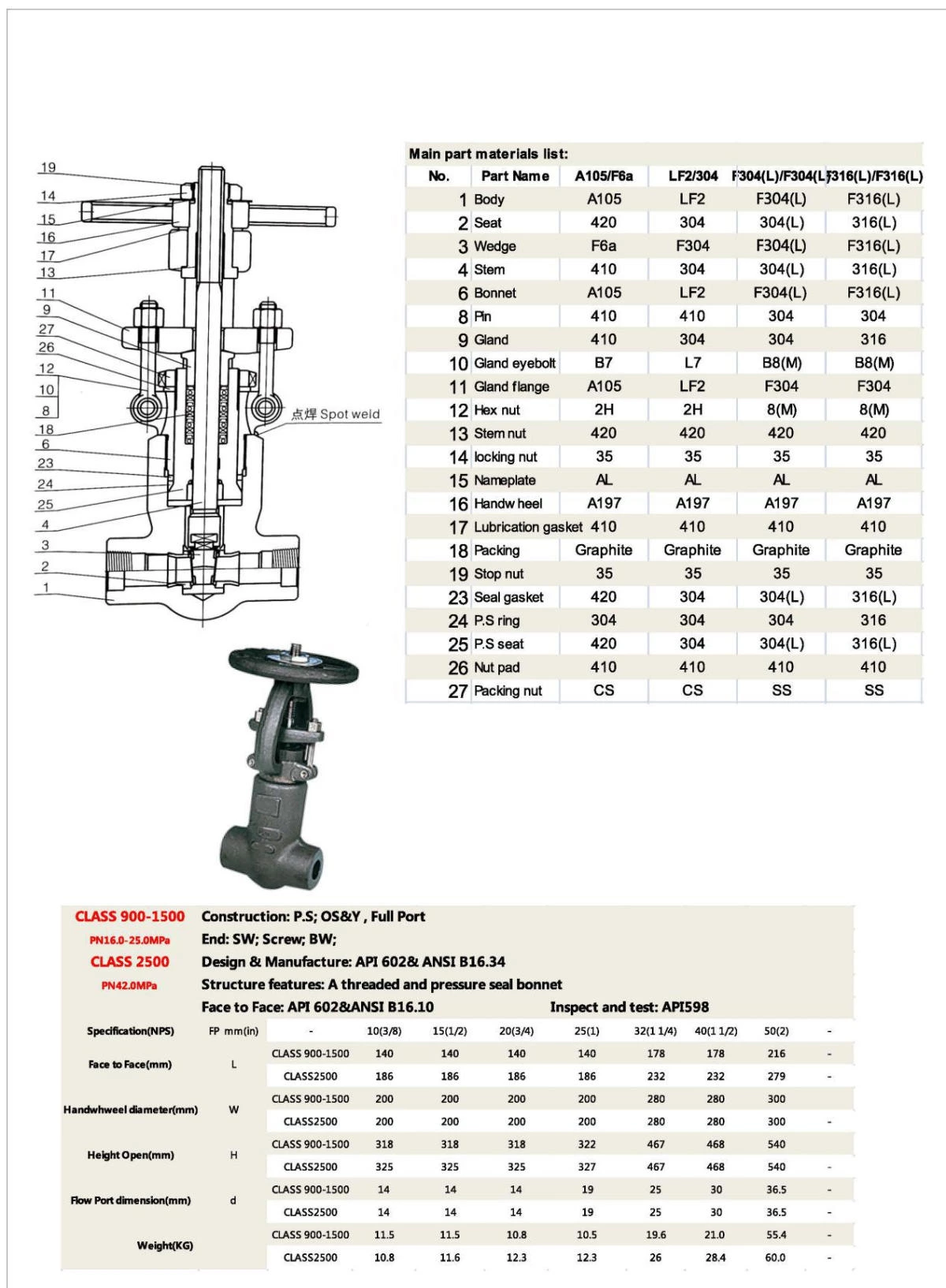

1500LB 2500LB Pressure Seal Gate Valve BW end SW end
PSGV Series
- API 602, ANSI B16.34 Design and manufacture standard
- Connection: SW conform to B16.11, Screw end conform to ANSI B1.20.1, BW conform to ANSI B16.25
- API 598 test and inspection standard.
- Main material: A105, LF2,F5,F11,F22, 304L,316L,F5
- Trim 8#10#12# etc
- Pressure rate: Class 900~ Class 1500, Class 2500
