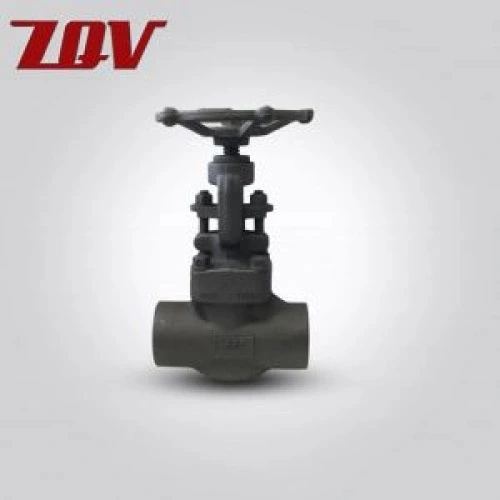

API 602 Socket Weld Fnpt Globe Valve
Size Range
1/2"-24"
Materials Grades
WCB, A105N, LCC, LF2, CF8M, 316, 316L, A20, Hastelloy C, Other materials
Pressure Range
Class 150/300/600/900/1500
Trim Materials
TRIM 1,5,8,12,16 & Special Materials
Design Standard
BS 1873 ,DIN EN 13709,GOST 3326,API 623,API 603,API 602
Testing Standard
API 598,DIN 3230,EN 12266-1,GOST 9544,BS 6755-1,BS EN 12266-1,BS 5146
End Connections
Raised Face, RTJ, Threaded, Socket Weld, Threaded X Socket Weld
Face to Face
ASME B16.10,EN 558-1,GOST 9544,BS EN 558-1,DIN 3202
Options
NACE Compliant
Description
Product Attributes
Brand: OEM, ZQV
Types Of: Globe Valves
Support Customization: Oem
Place Of Origin: China
Application: General
Medium Temperature: Medium Temperature
Power: Manual
Flow Medium: Oil, Water, Gas
Structure: Control
Product Description

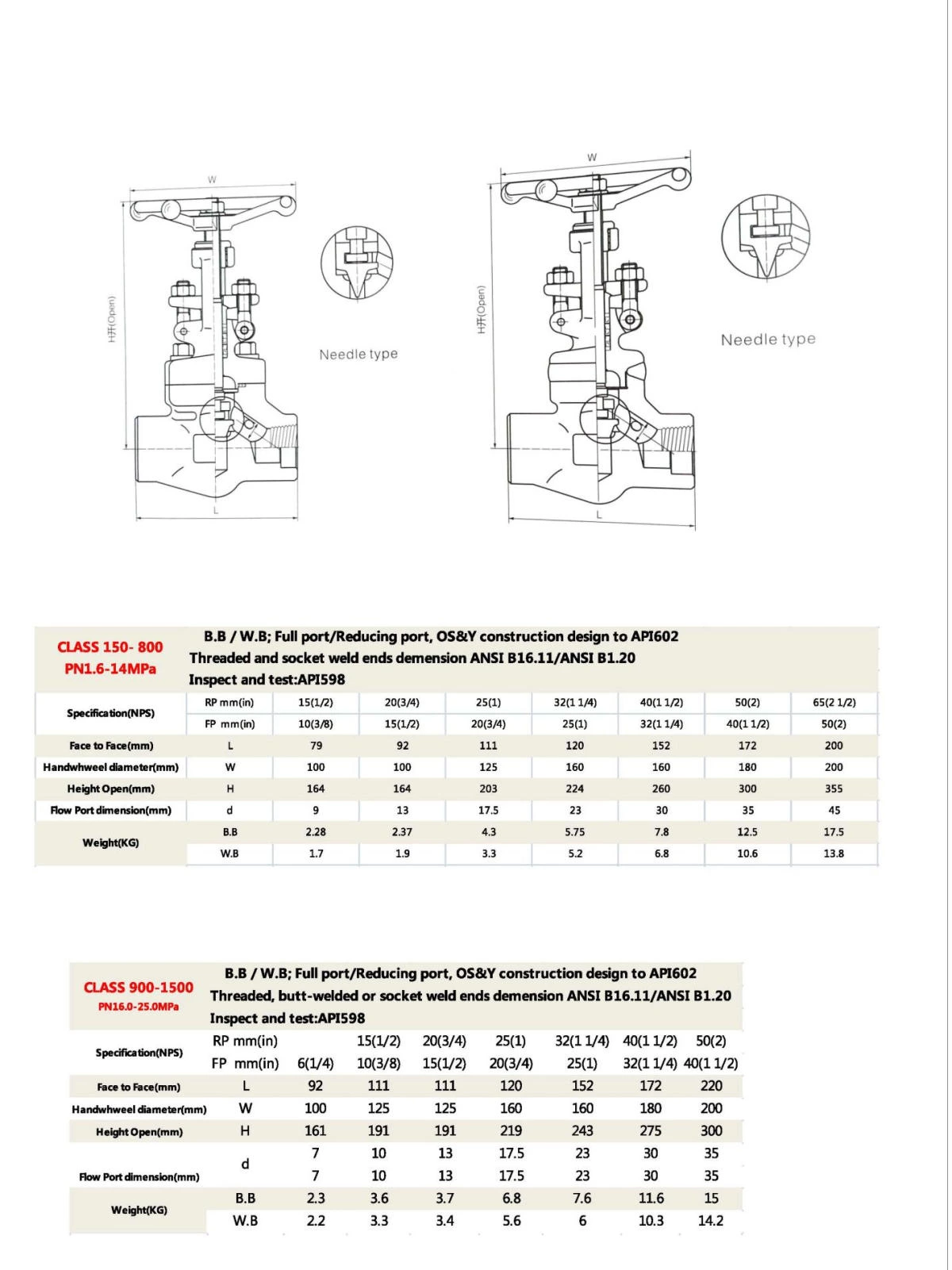

API 602 Forged steel threaded NPT Globe Valve Class rate 800LB, 900lb,1500LB,2500LB, size range from 1/2''-2'', are a compact but extremely sturdy design for the high pressure service.
GL800 Series
- ASME 16.34, API 602
- Bolted Bonnet, Pressure Sealed Bonnet, Welded Bonnet
- Pressure Class 150 ~ 2500
- NPS ½” ~ 2”
- RF, RTJ, BW, NPT, & SW Ends
- Back Seat Design
- Outside Screw and Yoke (OS& Y)
- Renewable Seat, Welded Seat, Integral SeatAPI 602, ASME B16.34
- Testing acoording to API 598, ASME B16.34
- Marking MSS-SP-25
- Outside Screw and Yoke(OS & Y)
- Rising Stem, Non-rising Handwheel
- Body Bonnet Weld to ASME
- Socket Weld Ends to ASME B16.11
- Screwed Ends (NPT) to ASME B1.20.1
- Butt Welding Ends to ASME B16.25

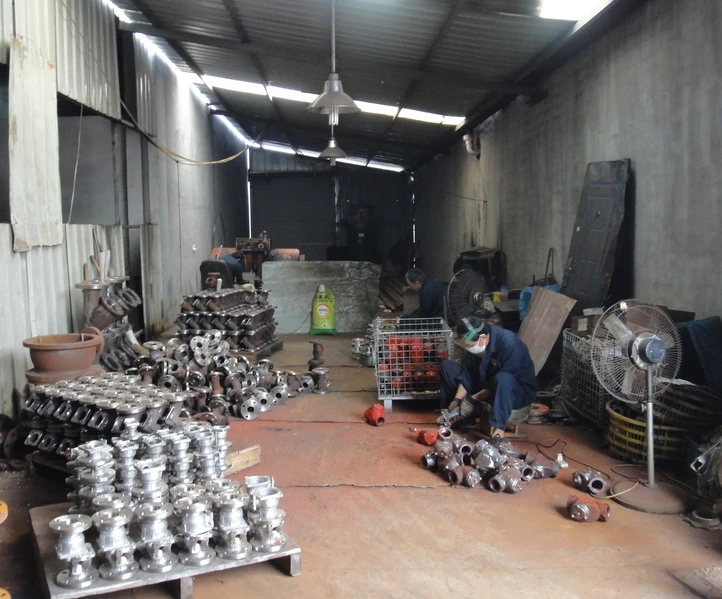

Factory Show
