API 602 Steel Socket weld Globe Valve
Size Range
1/2"-24"
Materials Grades
WCB, A105N, LCC, LF2, CF8M, 316, 316L, A20, Hastelloy C, Other materials
Pressure Range
Class 150/300/600/900/1500
Trim Materials
TRIM 1,5,8,12,16 & Special Materials
Design Standard
BS 1873 ,DIN EN 13709,GOST 3326,API 623,API 603,API 602
Testing Standard
API 598,DIN 3230,EN 12266-1,GOST 9544,BS 6755-1,BS EN 12266-1,BS 5146
End Connections
Raised Face, RTJ, Threaded, Socket Weld, Threaded X Socket Weld
Face to Face
ASME B16.10,EN 558-1,GOST 9544,BS EN 558-1,DIN 3202
Options
NACE Compliant
Description
Product Attributes
Model No.: GL800
Brand: OEM, ZQV
Types Of: Globe Valves
Support Customization: Oem
Place Of Origin: China
Application: General
Medium Temperature: Medium Temperature
Power: Manual
Flow Medium: Oil, Water, Gas
Structure: Control
Structure: B.B, OS&Y
Material Standards: ANSI, ASTM
Bonnet: Bolted bonnet
Product Description

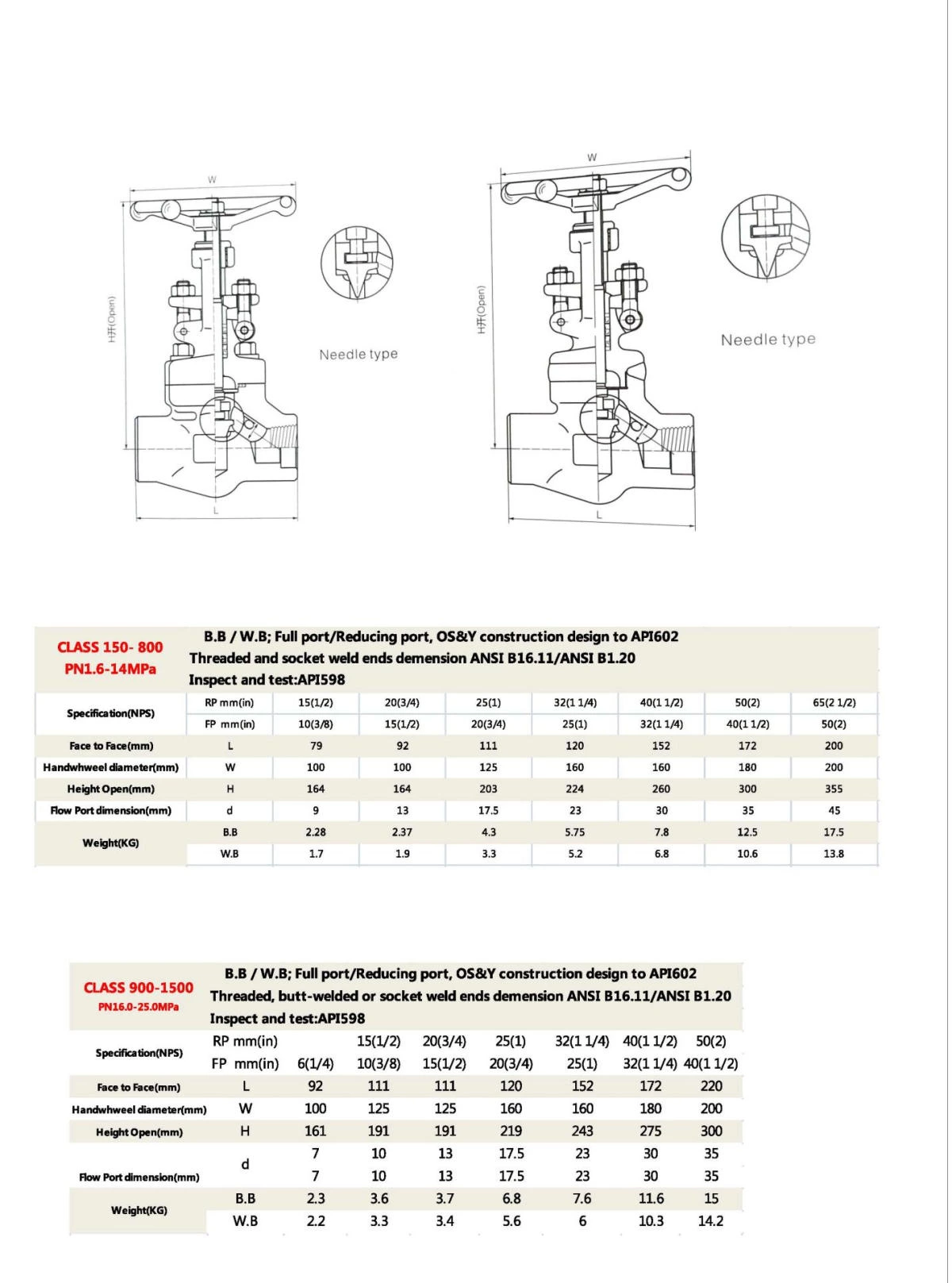

API602 Steel Threaded Globe Valve
GL800
- Body&Bonnet:Forged steel ASTM A105, LF2, F5, F11, F316, F304, F50
- Standard: API 602, MSS SP-118
- Test and Inspection standars: API 598
- End option: Socket welded, Butt welded, Female threaded and SW
- Size: 1/2''-2'' /DN15-DN50
- Port: Standard port or Reduced Port
- Pressure rate: 800LB, 900LB,1500LB,2500LB, 2000 PSI
