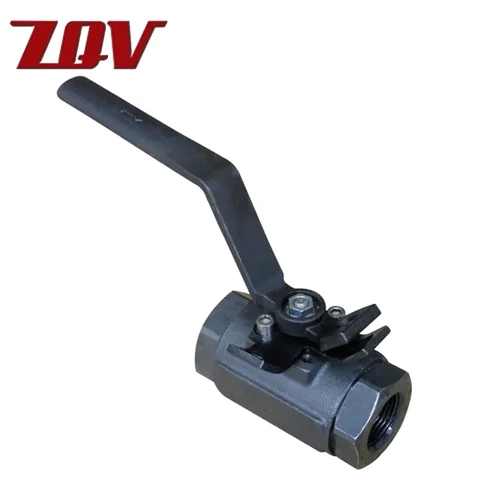

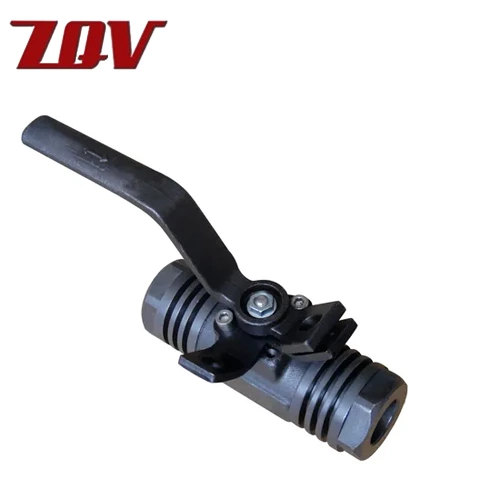

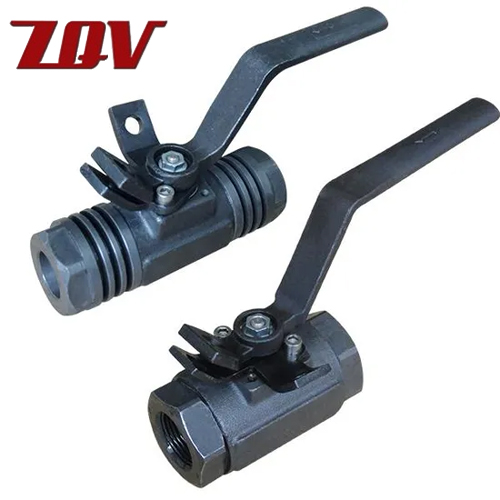

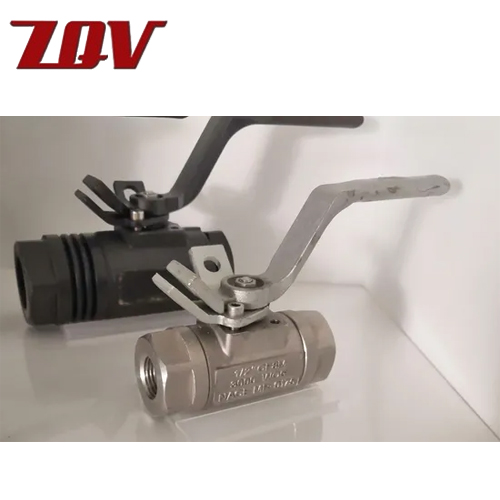

3-PIECE FORGED STEEL THREDED HIGH PRESSURE BALL VALVES
Size Range
1/4“ to 2”
Body Materials
A351 CF8M / A105 / LF2
Temperature Range
'-50℉ to 450℉ (-46℃ to 232℃)
Stem Materials
A182 F316
Maximum Allowable Operating Pressure
3000 PSI (WOG) 6000 PSI
Seat Materials
Delrin / Peek
Body Style
Three Piece
Ball Materials
A182 F316
End Connections
ASME B16.11
Design Standard
ASME B16.34 , API 607
Ports
Full Port / Redued Port
Testing Standard
MSS-SP72,API 598
Applications
General Service, Air, Water, Oil & Gas
Face to Face
Manufacturers Standard
Description
Port: Full Port/Reduced Port
Size: 1/4" to 2"
Pressure: 2000/3000/4000/6000PSI
Body: Carton Steel /Stainless Steel
SEAT: RPTEF/DELRIN/PEEK/GRAPHITE
Max Temp: 450ºF 232ºC
Ends:
Screwed/Threaded end to ASMEB1.20.1(NPT)
Butt Weld end to ASME B16.25
Socket Weld end to ASME B16.11
Features:
3-Piece Body design
Forged Construction
Integral Mounting Pad
Blow-out-Proof Stem
Lockable Lever
Spring Return Handle
Anti-Static Device
Pneumatic actuator
Test Standard: API 598/API 607/NACE MR-0175
Design Standard:ASME B16.34

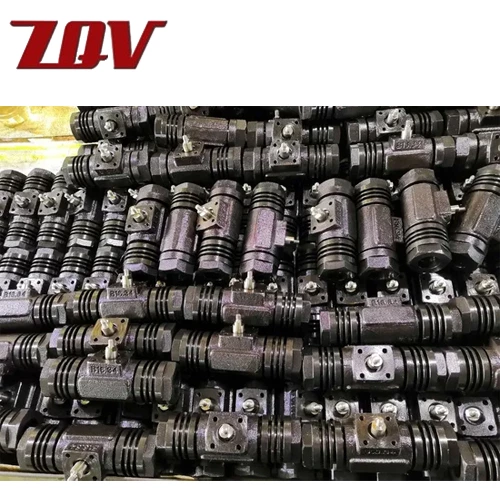

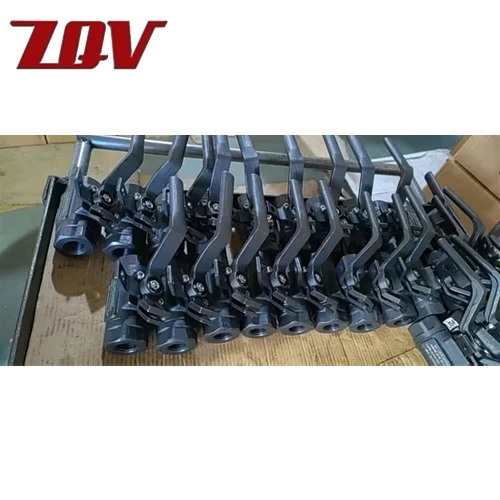

Factory Show
