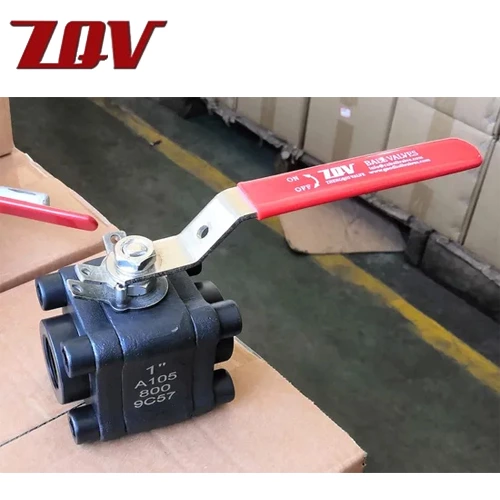

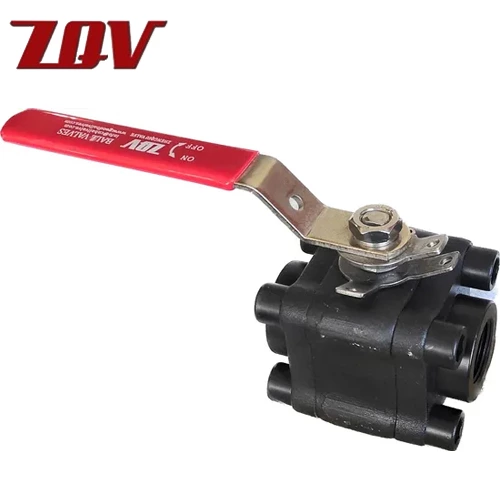

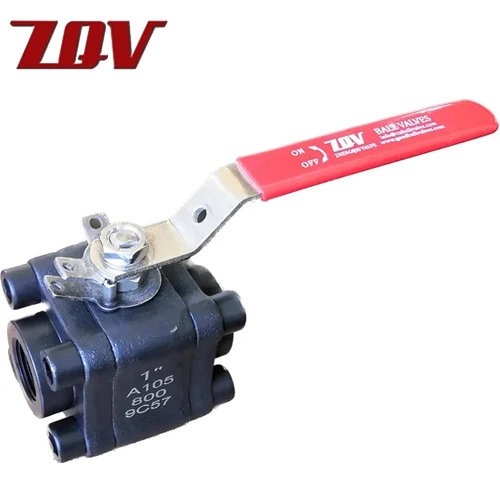

3 Piece Position Type Ball Valve A105
Size Range
1/4“ to 4”
Body Materials
ASTM A105 / A182 F316 / A182 F304
Temperature Range
'-50℉ to 450℉ (-46℃ to 232℃)
Stem Materials
A182 F316
Maximum Allowable Operating Pressure
800LB,1500LB,2500LB
Seat Materials
RPTFE,DELRIN,PEEK
Body Style
Three Piece
Ball Materials
A182 F316
End Connections

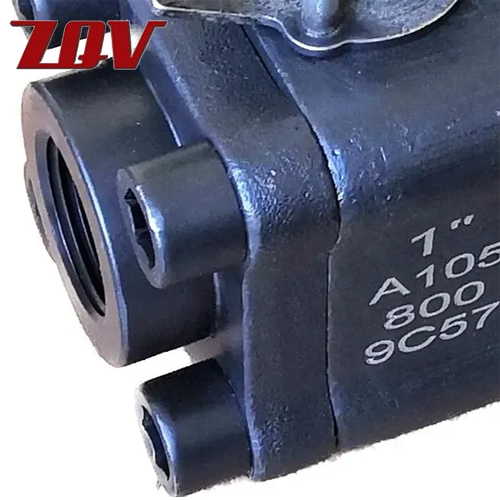

Threaded ASME B1.20.1 NPT
Design Standard
ASME B16.34 , API 607,API 608
Ports
Full Port / Reduced Port
Testing Standard
MSS-SP72,API 598
Applications
General Service, Air, Water, Oil & Gas
Face to Face
Manufacturers Standard
Description
Port: Full Port / Reduced Port
Size: 1/4" to 2"
Pressure: 800LB
Body: F105
SEAT: DELRIN/NYLON/PEEK
Max Temp: 450ºF 232ºC
Ends: ASME B1.20.1(NPT)
DIN 259/DIN2999/ISO228/BSP/PT
Features:
3-Piece Body design
Forged Construction
Adjustable Packing Gland
Blow-out-Proof Stem

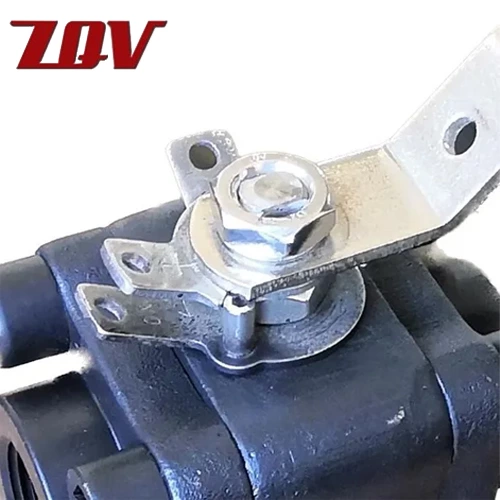

Lockable Lever
Spring Return Handle
Anti-Static Device
Round Body Style
Test Standard: API 598/NACE MR-0175
Design Standard:ASME B16.34
