Carbon Steel High Pressure Threaded Ball Valve
Size Range
1/4“ to 2”
Body Materials
ASTM A105
Temperature Range
'-50℉ to 450℉ (-46℃ to 232℃)
Stem Materials
A182 F316
Maximum Allowable Operating Pressure
3000 PSI (WOG)
Seat Materials
Delrin / Peek
Body Style
Two Piece
Ball Materials
A182 F316
End Connections
Threaded ASME B1.20.1 NPT
Design Standard
ASME B16.34 , MSS SP-110
Ports
Full Port
Testing Standard
MSS-SP72,API 598
Applications
General Service, Air, Water, Oil & Gas
Face to Face
Manufacturers Standard
Description
Product Attributes
Model No.: 2027
Brand: OEM ZQV
Types Of: Ball Valves
Support Customization: Oem
Place Of Origin: China
Application: General
Medium Temperature: Medium Temperature
Power: Manual
Flow Medium: Oil, Water, Gas
Structure: Ball
Body Construction: Bar stock forged design
Handle: Lockable lever handle
Max Temp.:: 450℉ 232℃
Product Description
ZQV Carbon Steel High-Pressure Ball Valve, a two-way floating ball valve, with 2pc body design, Full port and standard port option, Female NPT thread end, 2000WOG, size range 1/4'' to 2'', bar stock body construction. This carbon steel high-pressure ball valve with a quality forged body is ideal for use in applications involving natural gas distribution network and liquid distribution. Oval handle is available.
FEATURES
• Full port
• 1/4''-2''
• Pressure rate: 2000PSI/3000PSI
• Barstock design
• Blow-out-proof stem design
• Heavy duty lever
• Reinforced seats RPTFE
• Fire-safe
• Zinc phosphate corrosion protection option
• Adjustable packing gland
• Full port
• Locking Device (Option)

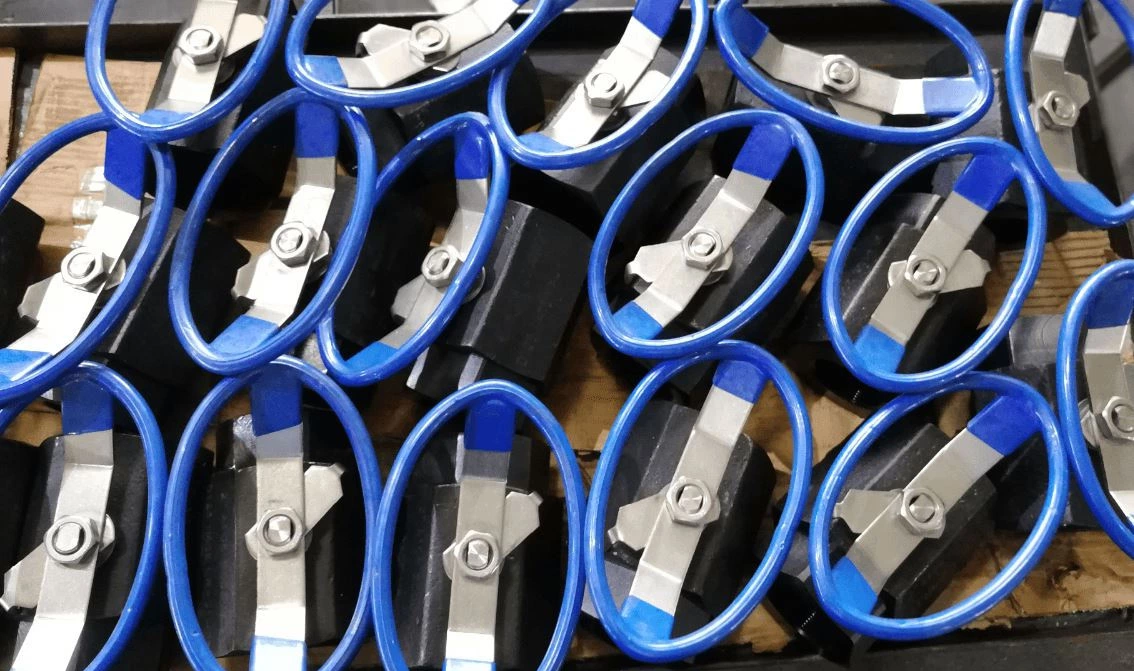

Factory Show
