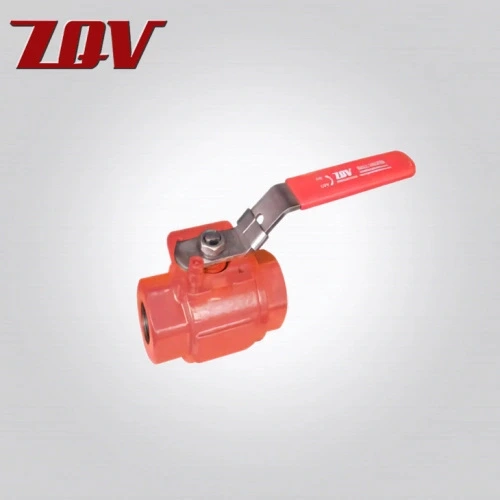

Forged Carton Steel Class 1500 Threaded Ball Valve
Size Range
1/4“ to 2”
Body Materials
ASTM A105 / A182 F316 / A182 F304
Temperature Range
'-50℉ to 450℉ (-46℃ to 232℃)
Stem Materials
A182 F316
Maximum Allowable Operating Pressure
3000 PSI (WOG) CLASS1500
Seat Materials
Delrin / Peek
Body Style
Two Piece
Ball Materials
A182 F316
End Connections
Threaded ASME B1.20.1 NPT
Design Standard
ASME B16.34 , MSS SP-110
Ports
Full Port
Testing Standard
MSS-SP72,API 598
Applications
General Service, Air, Water, Oil & Gas
Face to Face
Manufacturers Standard
Description
Product Attributes
Model No.: F2M
Brand: ZQV
Types Of: Ball Valves
Support Customization: Oem
Place Of Origin: China
Application: General
Medium Temperature: Medium Temperature
Power: Manual
Flow Medium: Gas, Water, Oil
Structure: Ball
Construction: Intergral ISO5211 Mounting pad
Certification: Fire safe
Device: Anti-static device
Product Description
Forged Steel ASTM A105 Threaded Ball Valves with pressure rate 2000PSI/800LB/3000 PSI/250 Bar/Class 1500
Features
- Two-Piece Body
- Full Port / Reduced Port
- Blowout-Proof Stem
- Fire Safe
- ISO 5211 Intergral Mount Pad
- Pressure rate: Class800 class 1500 2000PSI 3000PSI PN100 PN160 PN250
- Size Range: 1/4'' (DN8)-2''(DN50)
- CONFORMS TO ANSI B16.34
- MSS SP-118
- NACE MR0175 ANSI B1.20.1
- Temperature Range: -40℉～+450℉/ -40℃～+230℃
MATERIAL LIST
No.PartMaterials
1 BodyASTM A105
2 SeatR - PTFE
3 BallASTM A351 CF8M
4 StemASTM A351 CF8M
5 Body SealPTFE
6 CapASTM A105
7 Thrust WasherR - PTFE
8 Stem PackingGraphite
9 Packing GalndASTM A105
10 Stem WasherASTM A276 304
11 HandleASTM A276 304
12 Stem NutASTM A276 304
13 Stop PinASTM A276 304
