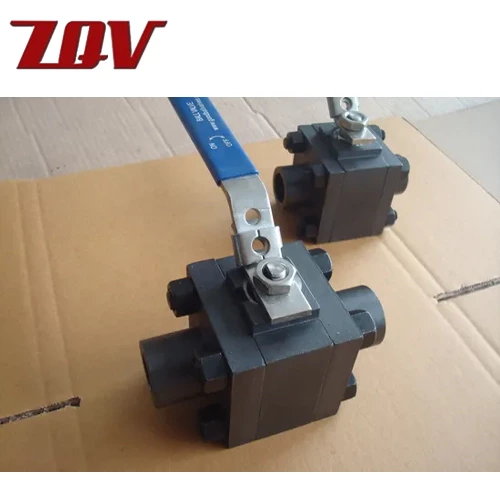

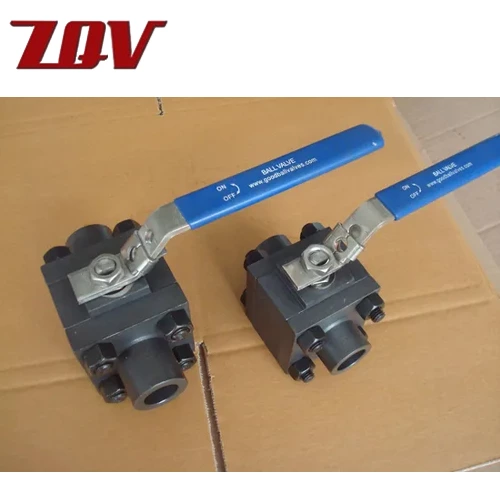

Forged Steel Socket welded Ball Valve 800LB
Size Range
1/4“ to 4”
Body Materials
ASTM A105 / A182 F316 / A182 F304
Temperature Range
'-50℉ to 450℉ (-46℃ to 232℃)
Stem Materials
A182 F316
Maximum Allowable Operating Pressure
2000 PSI (WOG) CLASS800
Seat Materials
RPTFE
Body Style
Three Piece
Ball Materials
A182 F316
End Connections
Threaded ASME B1.20.1 NPT
Design Standard
ASME B16.34 , API 607,API 608
Ports
Full Port / Reduced Port
Testing Standard
MSS-SP72,API 598
Applications
General Service, Air, Water, Oil & Gas
Face to Face
Manufacturers Standard
Description
Port: Full Port/Reduced Port
Size: 1/4" to 4"
Pressure: 800LB/1500LB/2500LB
Body: A105/LF2/F304/F613
Max Temp: 450ºF 232ºC
Ends:Screwed/Threaded end to ASMEB1.20.1(NPT)
Butt Weld end to ASME B16.25
Socket Weld end to ASME B16.11
Features:
3-Piece Body design
Forged Construction
Adjustable Packing Gland
Blow-out-Proof Stem
Lockable Lever
Spring Return Handle
Anti-Static Device
Pneumatic actuator
Test Standard: API 598/API 607/NACE MR-0175
Design Standard:ASME B16.34
