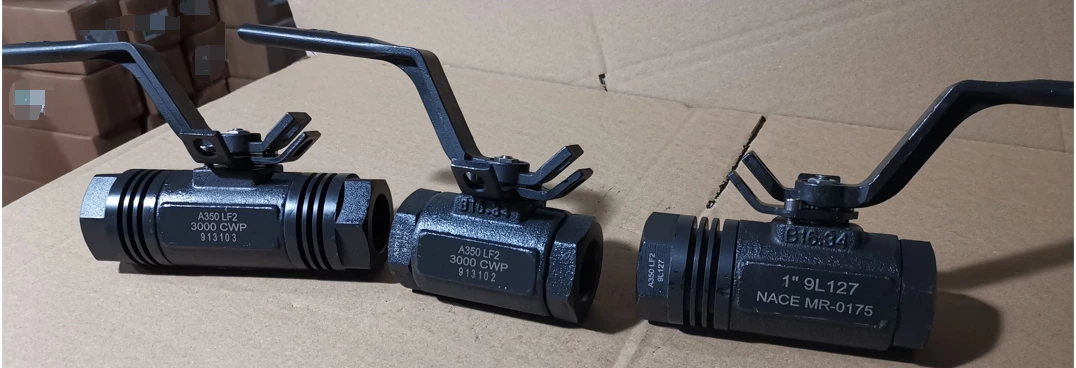

Socket Weld and Threaded end floating ball valves
Size Range
1/4“ to 2”
Body Materials
A351 CF8M / A105 / LF2
Temperature Range
'-50℉ to 450℉ (-46℃ to 232℃)
Stem Materials
A182 F316
Maximum Allowable Operating Pressure
3000 PSI (WOG) 6000 PSI
Seat Materials
Delrin / Peek
Body Style
Three Piece
Ball Materials
A182 F316
End Connections
ASME B16.11
Design Standard
ASME B16.34 , API 607
Ports
Full Port / Redued Port
Testing Standard
MSS-SP72,API 598
Applications
General Service, Air, Water, Oil & Gas
Face to Face
Manufacturers Standard
Description
Product Attributes
Model No.: T3
Brand: ZQV
Types Of: Ball Valves
Support Customization: Oem
Place Of Origin: China
Application: General
Medium Temperature: Medium Temperature
Power: Manual
Flow Medium: Gas, Water, Oil
Structure: Ball
Body Construction: 3pc threaded
Product Description
HIGH PRESSURE THREADED Ball Valves (threaded and socket weld ends) , FORGED CARBON and STAINLESS STEEL ASME CLASS 1500 and 2500 / 3000 and 6000 WOG, the body is forged steel which secures Class 2500/6000PSI working pressure. LF2 body and caps is available when for the low temperature applications. Caps are threaded to the body and using o-rings and gasket which double secures no leakage. Rugged handled ensures the safety and long service like, and with low torque. Peek seat prevent the premature deformation under high-pressure condition.
ZQV Fig T3
FEATURES
- RUGGED 3-PC CONSTRUCTION
- FULL PORT/rEDUCED PORT
- GROUNDED BALL and STEM
- NACE MR0175 API 607 CERTIFIED
- LOCKING LEVER
- THREADED ENDS TO ASME B1.20.1
- SOCKET WELD ENDS TO ASME B16.11
- RUGGED CAST HANDLE
- INTEGRAL MOUNTING PAD
- OPTION: SPRING RETURE HANDLE
- END: MNPT×SW， SW×SW， MNPT×MNPT
ZQV Fig T3
| SIZE RANGE | NPS 1/2" - 2" (DN 15MM - 50MM) |
| PRESSURE CLASS | ASME 800LB / 3000PSI |
| END CONNECTION | SOCKET, SCREWED, WELD END |
| Material | CARBON STEEL(A105,LF2), STAINLESS STEEL(SS316), ALLOY STEEL, NICKEL ALLOY STEEL |
| DESIGN | API 608, BS EN ISO 17292 |
| TESTING | API598, BS EN 12266-1 |
Contact our sales for more technical information

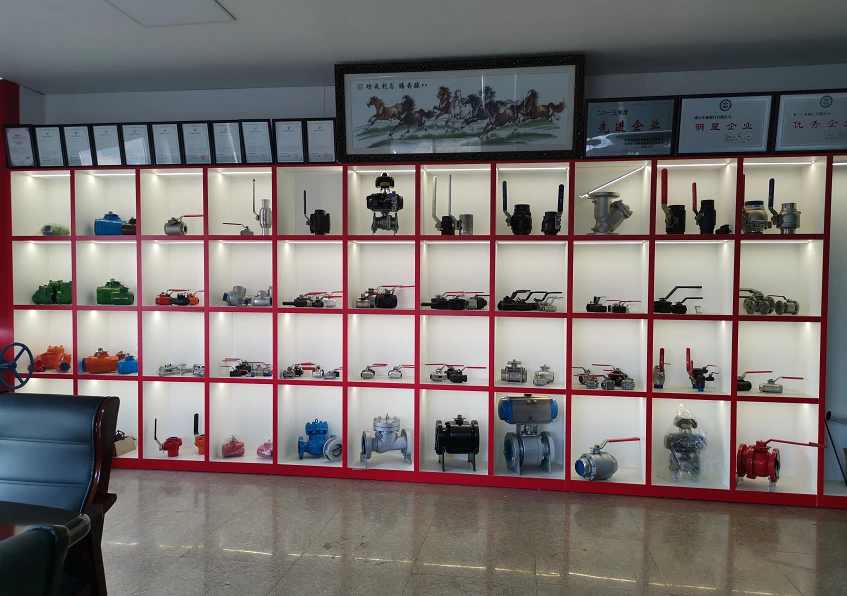

Factory Show
