Ductile Iron Grooved End Floating Ball Valve
Size Range
2" to 6"
Body Materials
A395 DI
Temperature Range
'-50℉ to 450℉ (-46℃ to 232℃)
Stem Materials
A182 F316
Maximum Allowable Operating Pressure
1000 PSI (WOG)
Seat Materials
RPTFE
Body Style
Two Piece
Ball Materials
A182 F316
End Connections
Grooved End
Design Standard
ASME B16.34 , MSS SP-110
Ports
Reduced Port
Testing Standard
MSS-SP72,API 598
Applications
General Service, Air, Water, Oil & Gas
Face to Face
Manufacturers Standard
Description
Product Attributes
Model No.: GRB
Brand: ZQV
Types Of: Ball Valves
Support Customization: Oem
Place Of Origin: China
Application: General
Medium Temperature: Medium Temperature
Power: Manual
Flow Medium: Gas, Water, Oil
Structure: Ball
Body Construction: Threaded body
Pressure: 750psi, 1000psi
End: Grooved end
Product Description
Grooved End Ball Valve (Series GRB)
Dutile Iron Threaded & Grooved End Ball Valves 750 psi, 1000 psi NSCWP
Series GRB
-

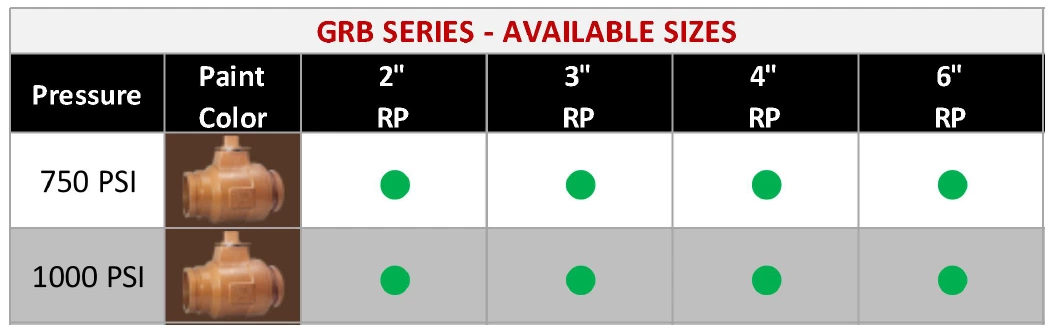

Size: 2'' 3'' 4'' 6''
-
Port: reduced port
-
Pressure: 750PSI 1000PSI
-
Body,Cap: ASTM A395 60-40-18 Ductile Iron
-
Seat: RPTFE
-
Ball, stem: Stainless Steel Trim
-
End: Grooved end
-
Threaded Body construction
-
Blow-out-proof stem
-
Lockable lever handle
-
MSS SP-110
-
Test Standard: API 598
-
NACE Option With 316 Stainless Steel Ball and Stem Available
-
Rugged Locking Device Standard
-
End Option: Threaded x Grooved End Connection, Male Threaded x Grooved End Connection
