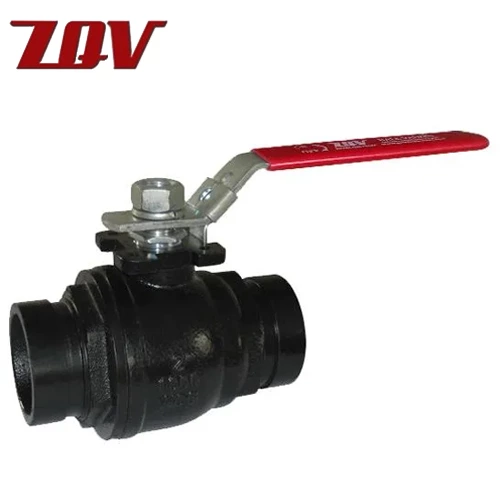

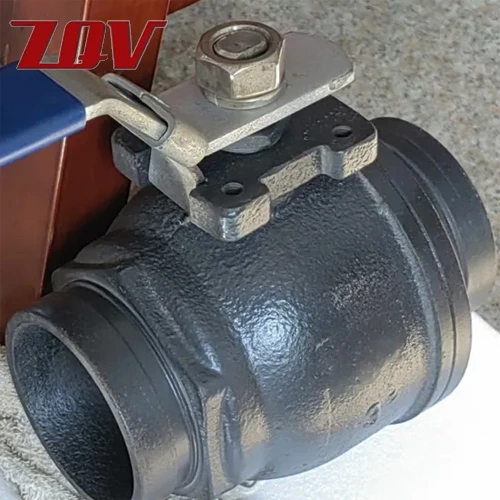

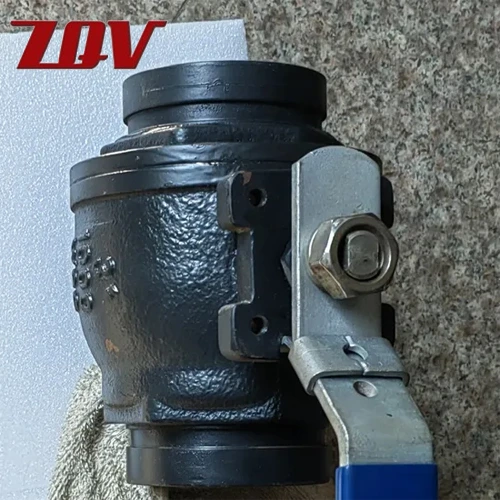

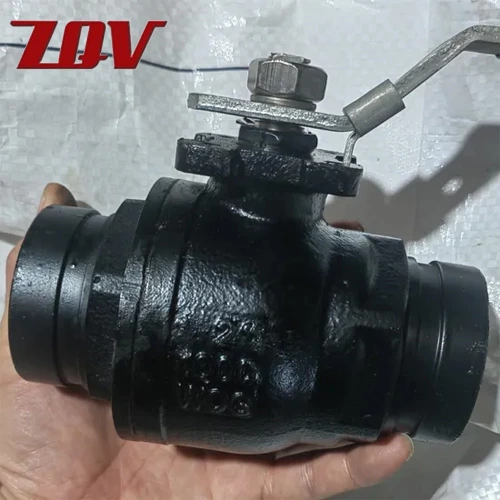

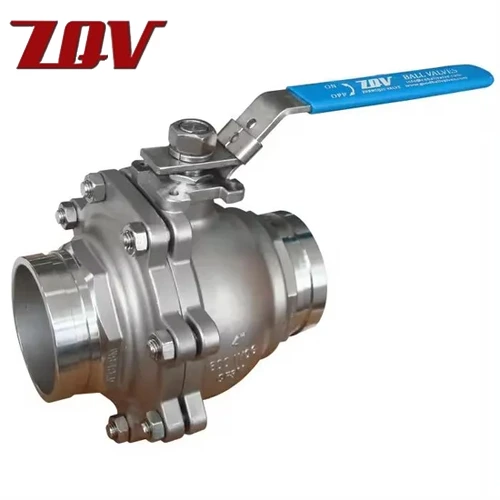

Grooved End Oilfield Ball Valves
Size Range
2" to 6"
Body Materials
A395 DI
Temperature Range
'-50℉ to 450℉ (-46℃ to 232℃)
Stem Materials
A182 F316
Maximum Allowable Operating Pressure
1000 PSI (WOG)
Seat Materials
RPTFE
Body Style
Two Piece
Ball Materials
A182 F316
End Connections
Grooved End
Design Standard
ASME B16.34 , MSS SP-110
Ports
Reduced Port
Testing Standard
MSS-SP72,API 598
Applications
General Service, Air, Water, Oil & Gas
Face to Face
Manufacturers Standard
Description
Port: Full Port/Reduced Port
Size: 2", 3", 6"
Pressure: 700PSI 800PSI, 1000PSI
Body: ASTM A395 60-40-18 Ductile Iron
SEAT: RPTEF
Max Temp: 380ºC
Ends: Grooved End
Features:
Investment Casting Body
Blow-out-Proof Stem
Lockable Lever & Spring Return Handle
Anti-Static Device
Test Standard: API 598/API 607/NACE MR-0175
Design Standard:ASME B16.34&ASME B16.10
| Iiem | Part name | Material | |||||||
| 1 | Body | ASTM A536 Ductile Iron | |||||||
| 2 | Cap | ASTM A536 Ductile Iron | |||||||
| 3 | Ball | ASTM 304SS | |||||||
| 4 | Seat | PTFE | |||||||
| 5 | Stem | ASTM 304SS | |||||||
| 6 | O-Ring | Buna-N | |||||||
| 7 | Thrust washer | PTFE | |||||||
| 8 | Packing | PTFE | |||||||
| 9 | Gland | 304SS | |||||||
| 10 | Handle | 201SS | |||||||
| 11 | Spring washer | 201SS | |||||||
| 12 | Nut | A2-70 | |||||||
| 13 | Locking Device | 201SS | |||||||
| NPS | d | L | OD | C | A | B | W | H |
| 2" | 38 | 140 | 60.3 | 57.2 | 15.88 | 8.74 | 185 | 96 |
| 3" | 63 | 176 | 88.9 | 84.9 | 15.88 | 8.74 | 265 | 137 |
| 4" | 75 | 240 | 114.3 | 110 | 15.88 | 10 | 265 | 154 |
